User Manual

Disassembling the Radiation Shield Draft 7/5/01 Page 5
2. Remove the three wing nuts, lock
washers and flat washers located on
the underside of the radiation shield.
3. Turn the ISS right-side up with the
rain collector on top.
4. Hold onto the rain collector and left
off the top part of the ISS, exposing the
fan plate on the bottom part of the radia-
tion shield.
#8 Wing Nuts
#8 Lock Washers
#8 Flat Washers

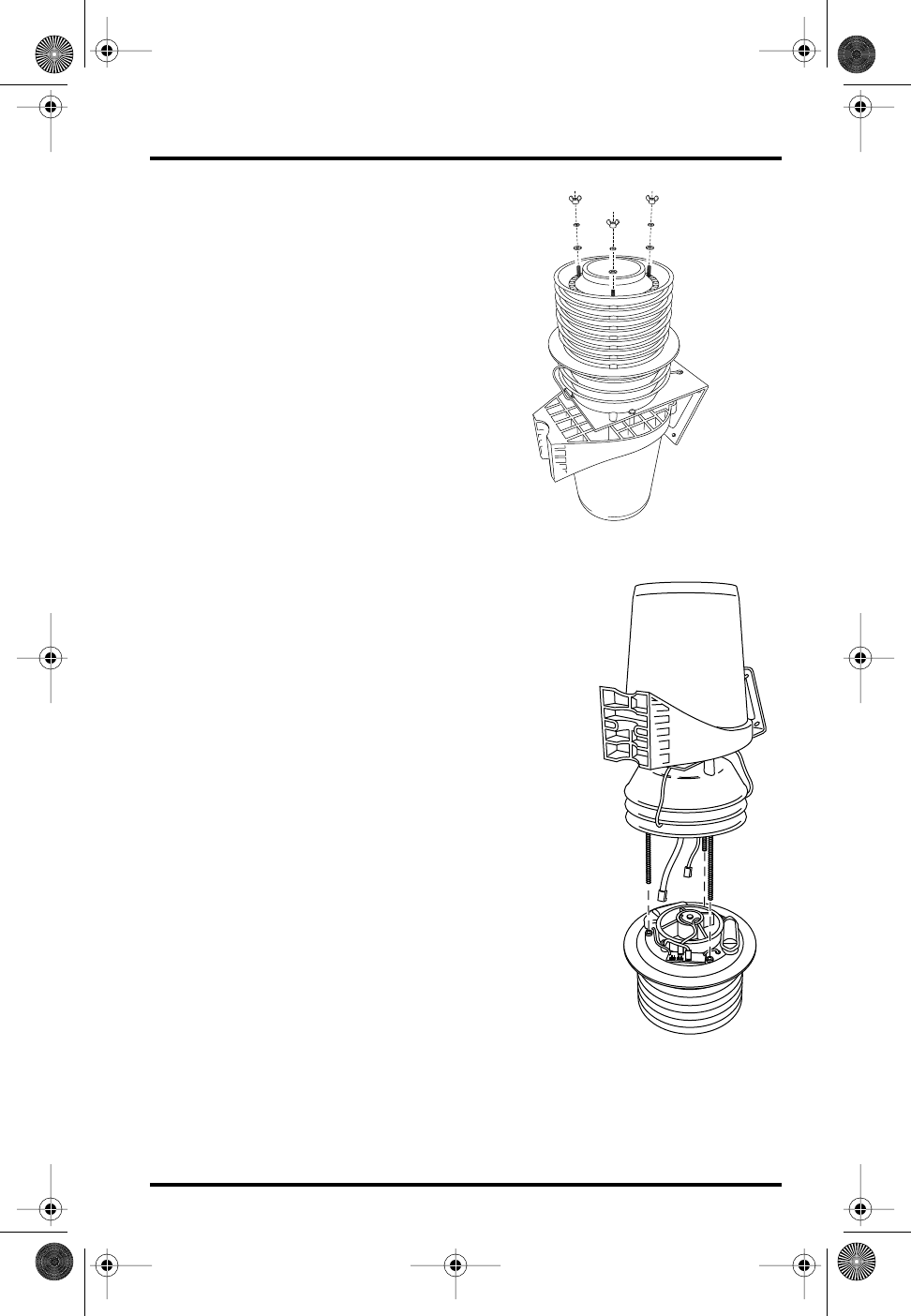

Removing the Wing Nuts
Integrated
Sensor
Suite
Fan
Aspirated
Radiation
Shield
Separating the Radiation Shield
