Replacing the Motor
1. Retrieve your Fan-Aspirated ISS and place on a stable work surface.
2. Disassemble the Radiation Shield (See page 3).
3. Remove the Junction Board Cover.
4. Lift the Fan Unit from the Radiation Shield.
5. Unplug the Motor Connector from the Junction Board.
6. Install the replacement motor in the Radiation Shield.
7. Plug the Motor Connector into the Motor Terminal on the Junction Board.
8. Assemble the Radiation Shield (See page 8).
9. Mount the Fan-Aspirated ISS in it’s previous location.

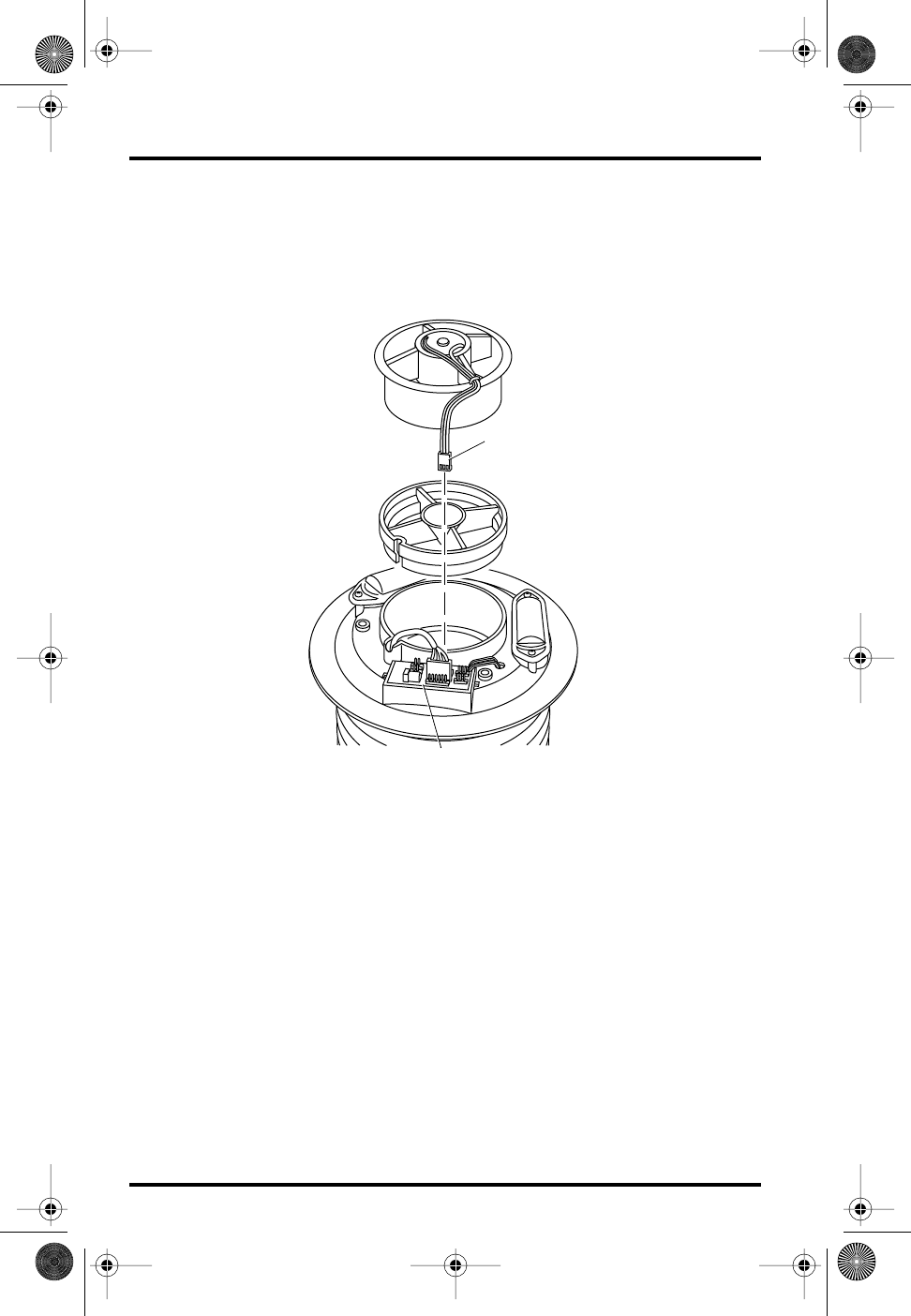

Fan Unit
Fan Deflector
Motor Connector
Junction Board
