10. Fuse Kit
P/N 41090G-22 Waterproof Fuse Kit
Installation Instructions
Parts/Tools Required
 1/8-inch diameter heat shrink tubing
 Wire strippers
 Crimp tool (Thomas & Betts WT-11-M or equivalent)
 Crimp terminals
 10-Amp fuse kit
Procedure
 Using a heat gun, install 1/8" diameter heat shrink tubing* over one end of the 4" red wire
(supplied). Install the second piece of 1/8" diameter heat shrink tubing over the red wire on the
C91-20PW Power Cable.
 Thread red wire of power cord with heat shrink tubing* into one end of fuse holder.
 Thread the heat shrink end of the 4-inch red wire into other end of fuse holder.
 Strip insulation on both wires 1/4 inch.
 Crimp fuse clips to both wires.
 Insert 10 amp fuse.
 Snap two halves of housing together.

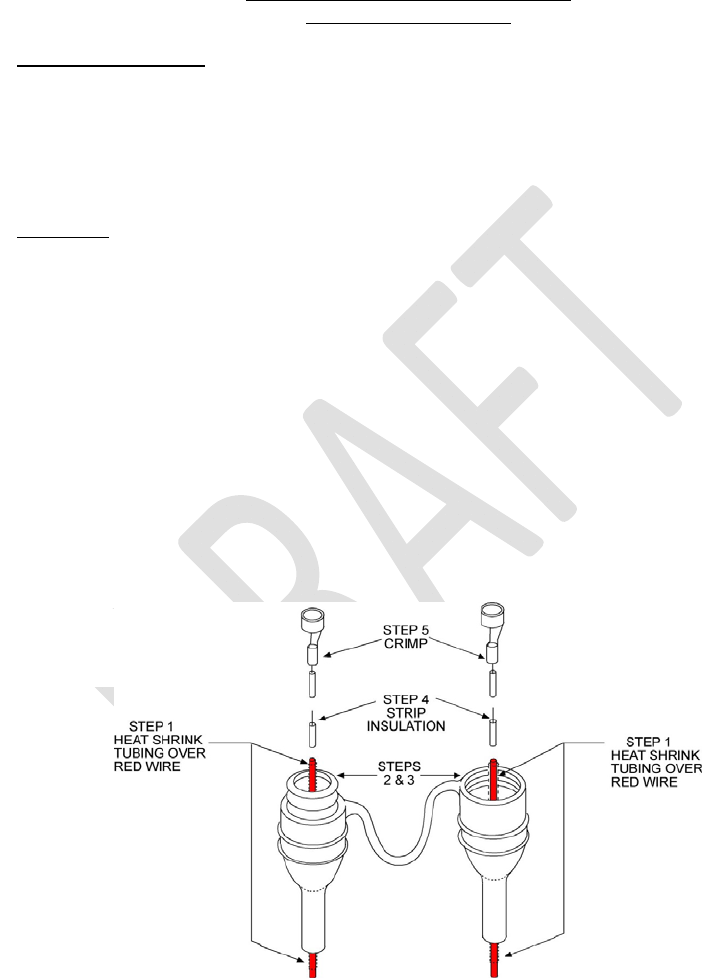

Figure 10.1 Proper assembly of Fuse Holder Kit (41090G-22)
* Note: The heat shrink tubing is
necessary in order to provide
weather tightness.
