Talk Group Example 1: Multiple users on intercom, hot mic
• Multiple users talking and listening to each other
• Users can be on any selection (1-4) and do not have to press PTT to be heard
Steps
1. Click Add New Talk Group.
2. Rename talk group if desired by clicking
.
3. Click to expand each Headset Station or Wireless Gateway you wish to add to this group.
4. To identify a device, click the
and all LEDs on the device will turn red for 10 seconds.
5. Under Outputs, select All Rx which enables this user to hear in both L+R ears. Since
wireless is mono, select Ear for wireless users.
6. Under Inputs, select Mic which enables this user’s mic to be heard by other users of the
group.
7. When finished, click SAVE REQUIRED on the top menu.
8. Once the operation completes, the users are now able to talk freely to each other.
9. See Figure 8.12.

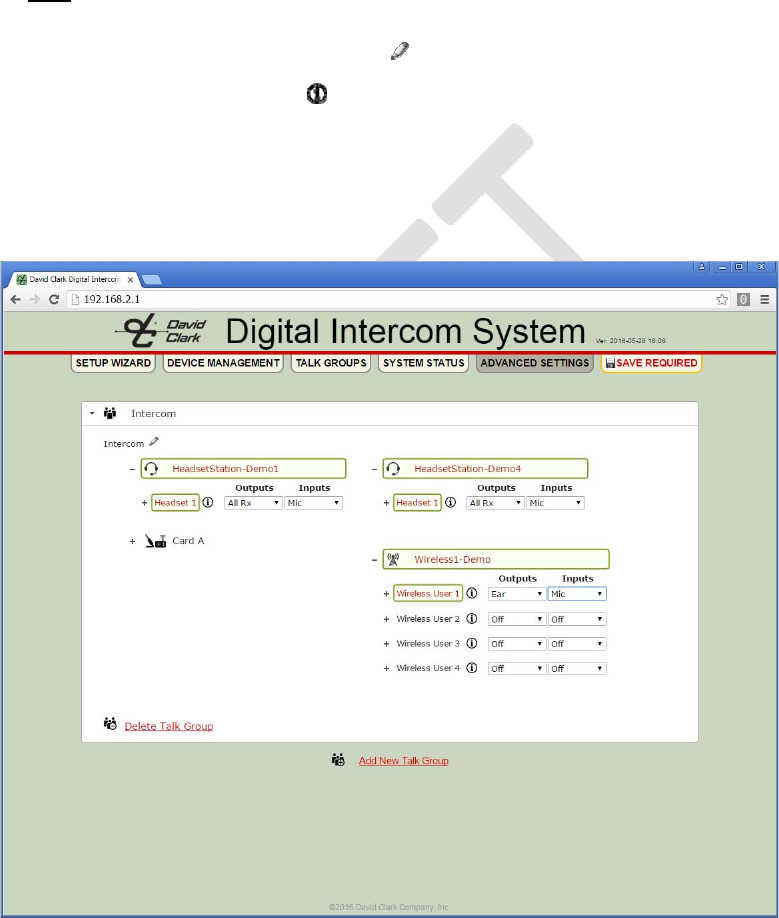

Figure 8.12: Talk Group Example 1
For the next examples it will be assumed that the user knows how to add a new talk group, rename it, and
identify devices.
