16
Setup Wizard

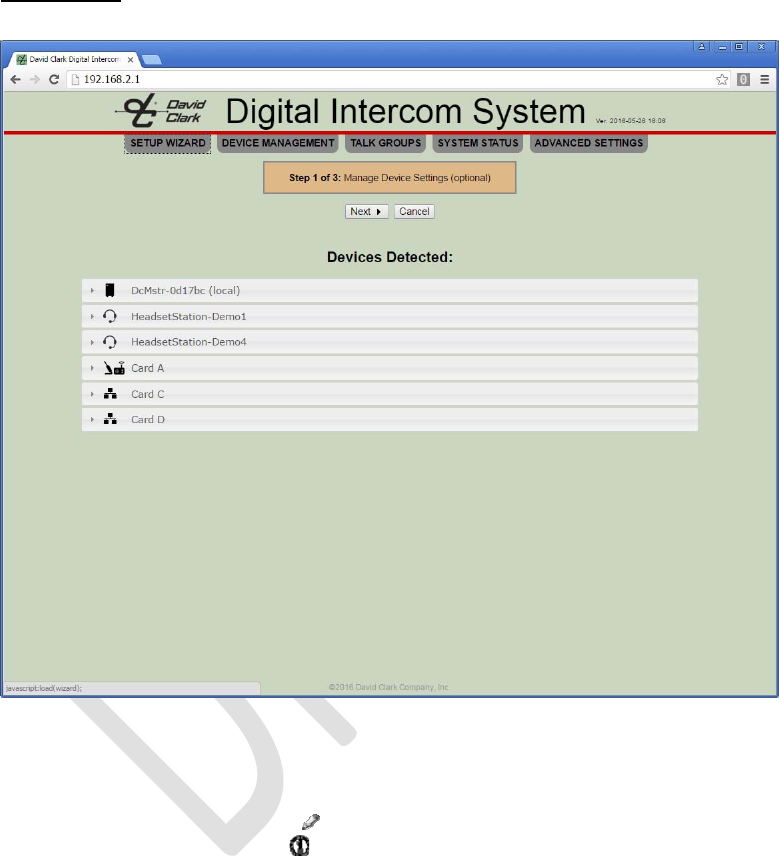

Figure 8.5
1. Each device detected on the system is shown, as well as any add-in cards present in the Master
Station.
2. Clicking on a device expands a pane with its properties and settings.
3. A Headset Station or Wireless Gateway Station has the following options:
a. Rename by clicking the
icon
b. Identify by clicking the
icon (all LEDs on the device will turn solid red for 10s)
c. LED mode. Can be set to Normal or Dark. See Figure 8.6.
d. VOX mode. Can be set to PTT, Auto, or Hot Mic. See Figure 8.6.
