User's Manual

User Interface

1. Once power is turned on to the system in about 30 seconds the web interface will be available.

2. The factory default IP address is 192.168.2.1 and authentication is disabled.

3. Connect a computer via Ethernet cable to an open switch card port. If all switch card ports are

used, a PoE splitter such as CyberData #011187 or a PoE capable Ethernet switch may be used.

4. Open a web browser and go to http://192.168.2.1

5. If prompted for a username and password, enter user for the username and pass for the

password.

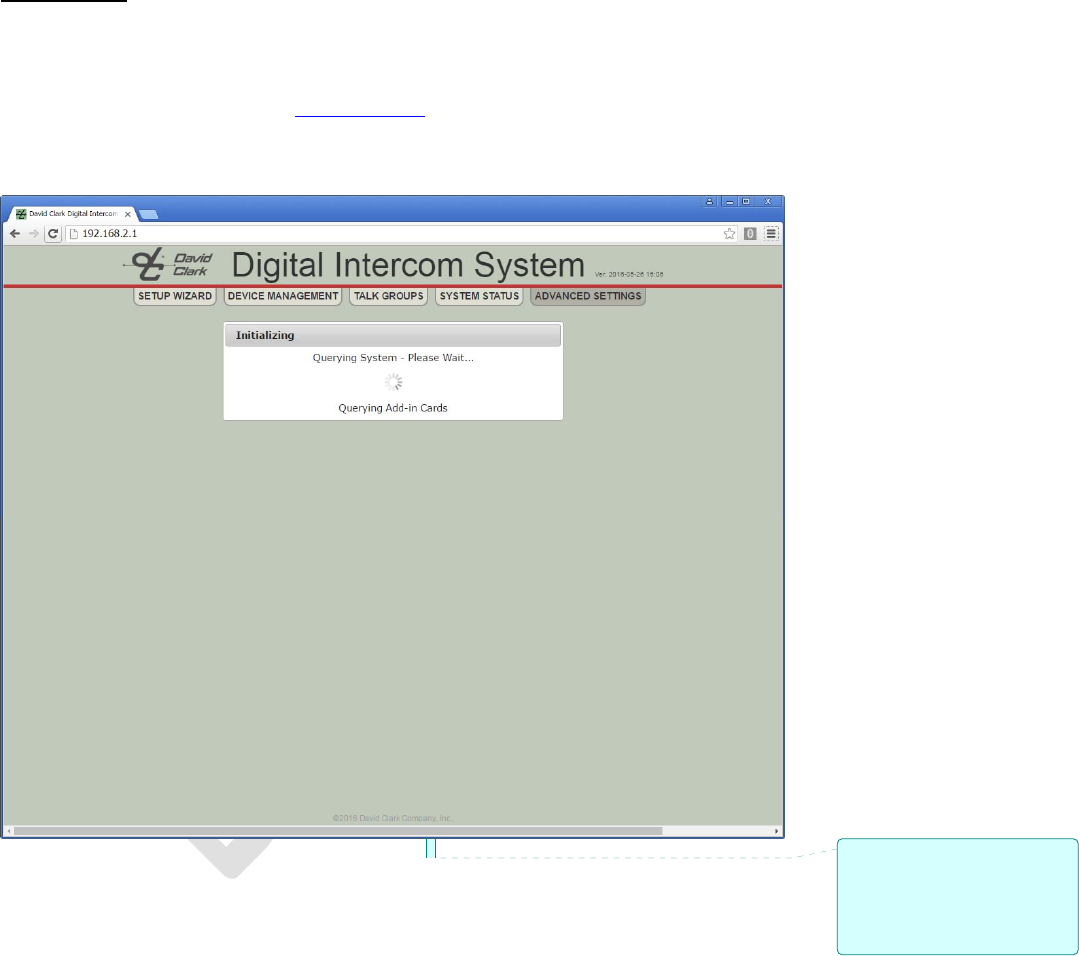

6. The user interface will begin loading. See Figure 8.4.

Figure 8.4

7. Once loaded, click SETUP WIZARD. See Figure 8.5
