User manual
EN DATEQ BCS50 user manual BCS53 settings 25
Jumper settings

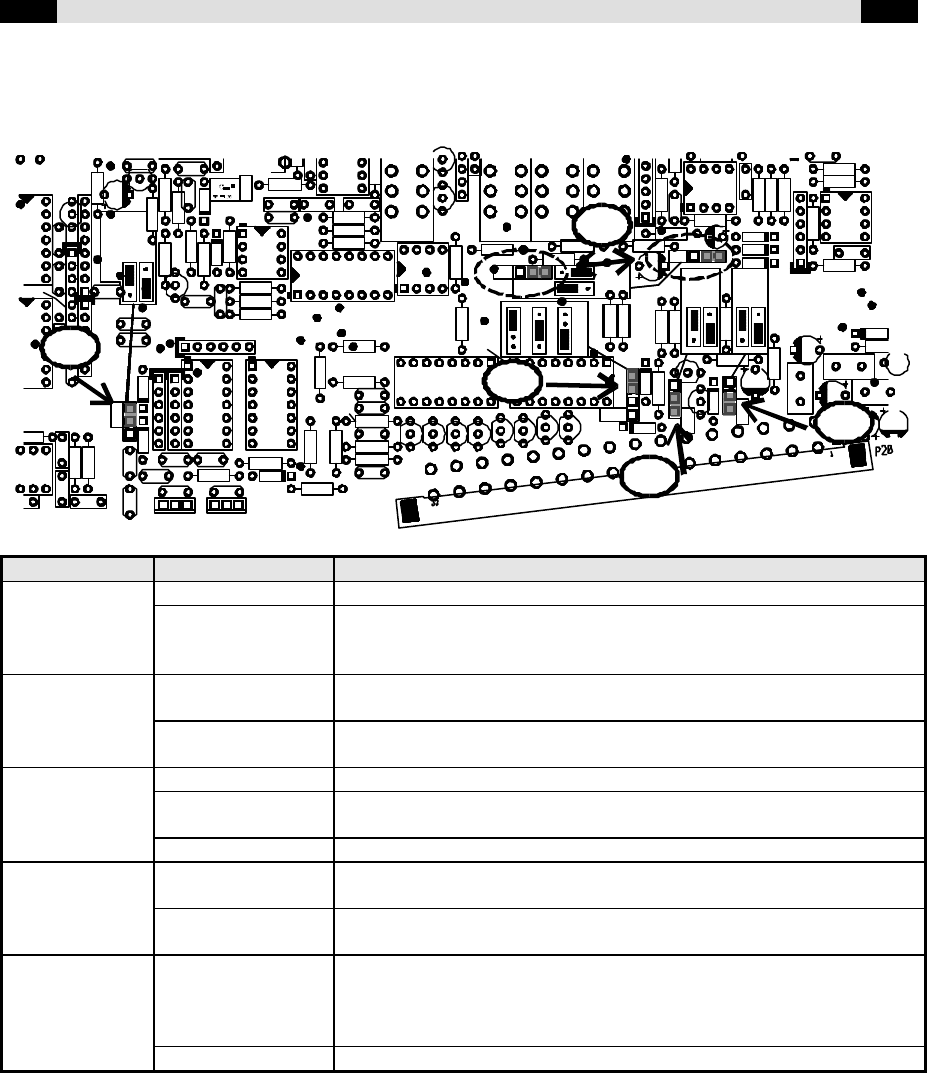

The jumpers in a BCS53 and BCS53T module have the same functionality and the same
position. That is why only the BCS53 PCB is shown below.
Jumper name Possibilities Description
CUE (1) FADER (D) The channel is activated when the fader is opened.
SWITCH The channel is activated when the ON-key is pressed. When the fader
is opened and the ON-lamp does not light up no audio will be fed
through.
AUX (2) POST (D) The after-fader signal is routed to the AUX-buss. Both jumpers (P6
and P7) have to be in the same position!
PRE The pre-fader signal is routed to the AUX-buss. Both jumpers (P6 and
P7) have to be in the same position!
ON-AIR (3) OFF (D) No ON-AIR outputs will be activated when the channel is switched on.
ON-AIR1 When the channel is switched on ON-AIR1 will be activated. The
studio output will be muted to prevent an acoustical feedback.
ON-AIR2 When the channel is switched on ON-AIR2 will be activated.
MSTR (4) ON (D) When the PFL-switch is pressed the CR will switch automatically to
PFL. This makes the signal directly audible for the technician.
OFF The signal is mixed to the PFL-buss, but the CR-selector will not
automatically switch to PFL.
DJ (5) ON When the module is activated all PFL-buttons will reset and the CR
output will be muted to prevent from an acoustical feedback with the
DJ-microphone. It is also possible to let the CR-selector switch to AIR
or PGM. This will be explained later.
OFF (D) This function is disabled.
(D) indicates the default setting
R99
R74
R73
AUX:
DJ:
MSTR:
POST
PRE
ON
ON
OFF
OFF
OFF
ON-AIR2
ON-AIR1
CUE:
FADER
SWITCH
C56
C54
C53
C45
C44
C43
C36
C57
C35
C20
C22
C21
C28
C24C26
C27
C25
C33
C34
C32
C12
D6
D3
D2
D1
D14
D23
D24
D28
D27
D20
D25
D29
U4
U6
R80
R69
R68
R67
R83
R81
R84
R85
R79
R82
R78
R77
R76
R75
R5
R86
R88
R96
R72
R93
R71
R95
R26
R98
R37
R38
R101
R25
R17
R39
R16
R35
R18
R19
R31
R28
R36
R23
R20
R34
R29
R30
R27
R54
R58
R55
R48
R50
R64
R66
R65
R52
R53
U7
U8
U3
R33
R32
U11
U15
U12
U16
R100
R89
R92
C23
C9
C14
C3
C4
C1
C2
C301
Z1
Q2
Q3
Q4
Q1
Q6
Q5
Q7
Q8
R24
R15
R56
R57
R51
R90
C41
C38
C37
C17
C46 C47 C48
C15
C19
C51
Q11 Q10
P13
D15
P7
P6
P10
P12
P11
U9
Q16
R73
R74
R99
RT1
C42
C10
C18
Q26
Q25
Q12
Q13
C303
Q18
Q20
Z3
R302
R303
R301
1
AUX:
DJ:
MSTR:
POST
PRE
CUE:
FADER
SWITCH
ON
ON
OFF
OFF
OFF
ON-AIR2
ON-AIR1
1
2
3
4
5
