User manual

16 BCS52 settings DATEQ BCS50 user manual EN

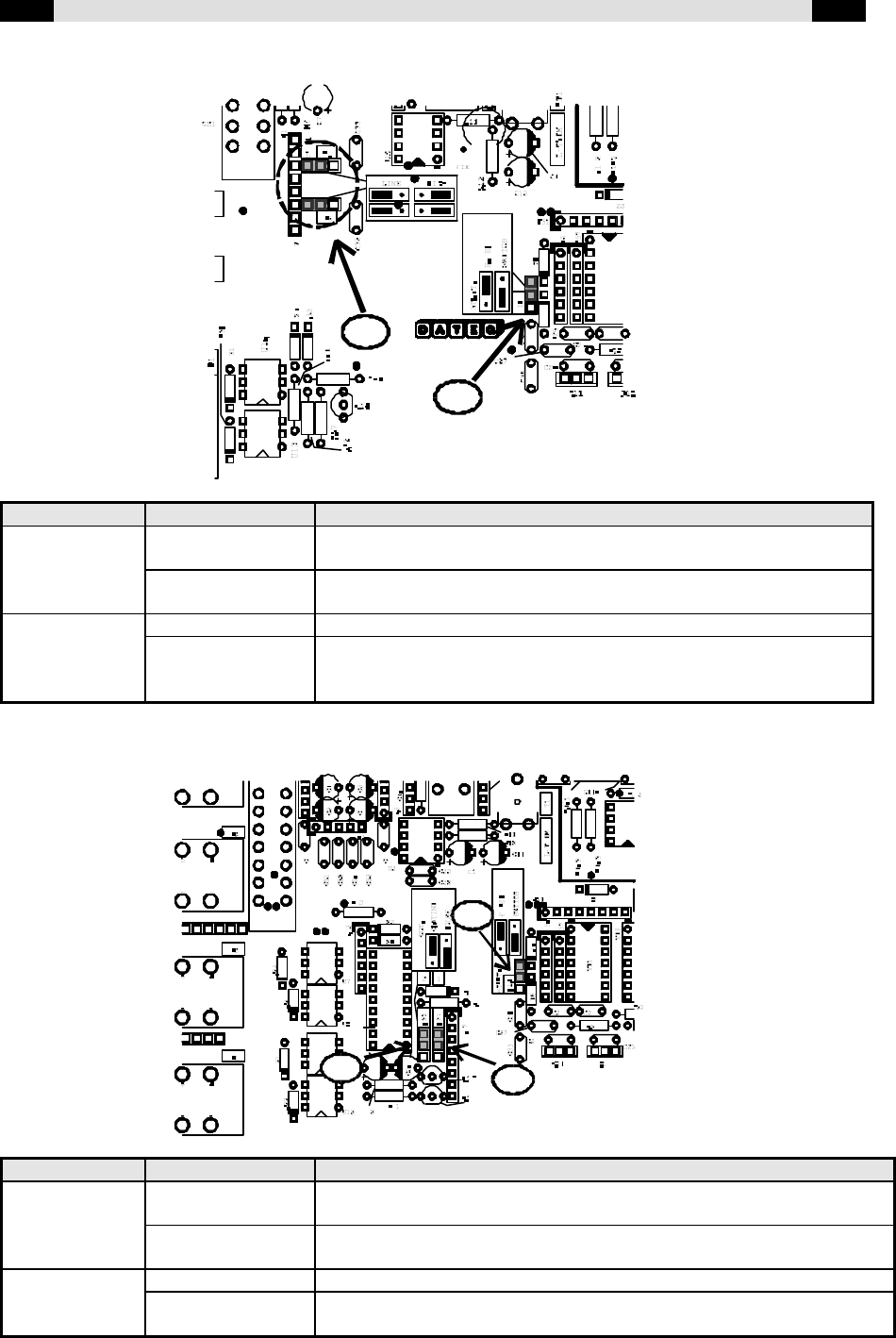

BCS52 settings

Jumper name Possibilities Description

LINE/

RIAA (1)

LINE Both jumpers must be in this position when the RIAA option is not

installed.

RIAA Both jumpers must be in this position when the RIAA option is

installed.

START (2) FADER (D) The channel is activated when the fader is opened.

SWITCH The channel is activated when the ON-key is pressed. When the fader

is opened and the ON-lamp does not light up no audio will be fed

through.

(D) indicates the default setting

BCS52S settings

Jumper name Possibilities Description

CUE (1) CONTINU (D) After the module has started or stopped the start or stop outputs

remains active. (P21 controls line 1 and P22 controls line 2)

PULSE The start and stop output generate a pulse (500mSec) when the module

is started or stopped. (P21 controls line 1 and P22 controls line 2)

START (2) FADER (D) The channel is activated when the fader is opened.

SWITCH The channel is activated when the ON-key is pressed. When the fader is

opened and the ON-lamp does not light up no audio will be fed through.

(D) indicates the default setting
