Connecting the BCS52S(E)
At the BCS52S(E) connectorboard eight connectors can be found. Each input has four jack
connectors:
Name Type In/ Out Description
CTRL 6.3mm stereo
jack
In & Out Channel on indicator and PFL input
RIGHT 6.3mm stereo
jack
In Balanced right line input
LEFT 6.3mm stereo
jack
In Balanced left line input
CUE 6.3mm stereo
jack
Out Start/ stop output
Technical description
CTRL Ext. PFL logical input: 15V, 100kOhm; pulldown. Lamp power: 12Vdc, 1W max
This connector has two functions: connecting an external module-on indicator and a
logical input for an external PFL switch. When this input is pulled low (with an opto-
coupler for example) the channel will switch the PFL on. This function is available for
line 1 and line 2.
LEFT/ RIGHT Input level: -14 ... +20 dBm, Impedance: 10 kOhm
Connection for balanced stereo line inputs. With an optional RIAA add-on PCB it is
possible to connect a record player.
CUE Maximum ratings: 24Vdc, 10mA
Opto-coupler outputs to start and stop the connected equipment. As a maximum
24Vdc, or 10mA current may be switched. The outputs are switchable between
continue and pulse. This function is available for line 1 and line 2.

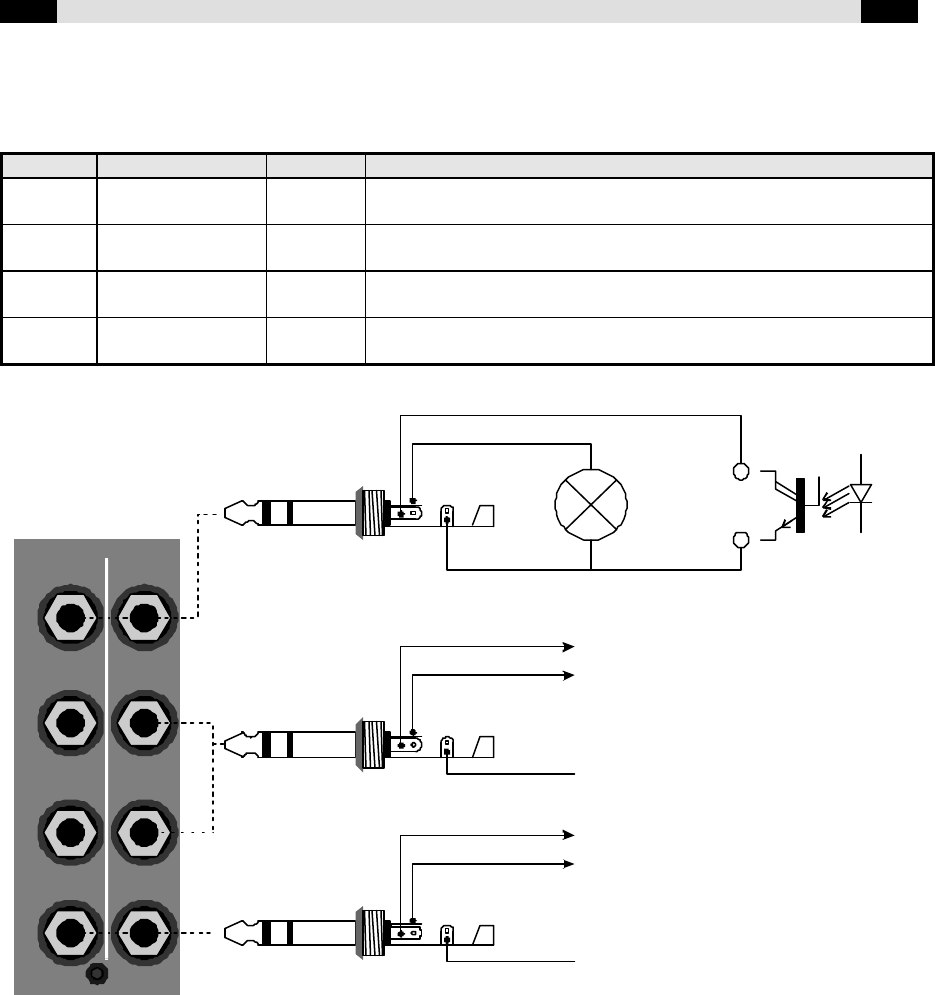

CTRL
RIGHT
LEFT
CUE
CTRL
RIGHT
LEFT
CUE
LINE 1LINE 2
ring
ring
ring
tip
tip
tip
Channel
on lamp
External PFL
Common
GND
Start
+ input
Stop
- input
