12 Connecting the BCS52(E) module DATEQ BCS50 user manual EN
Connecting the BCS52(E)

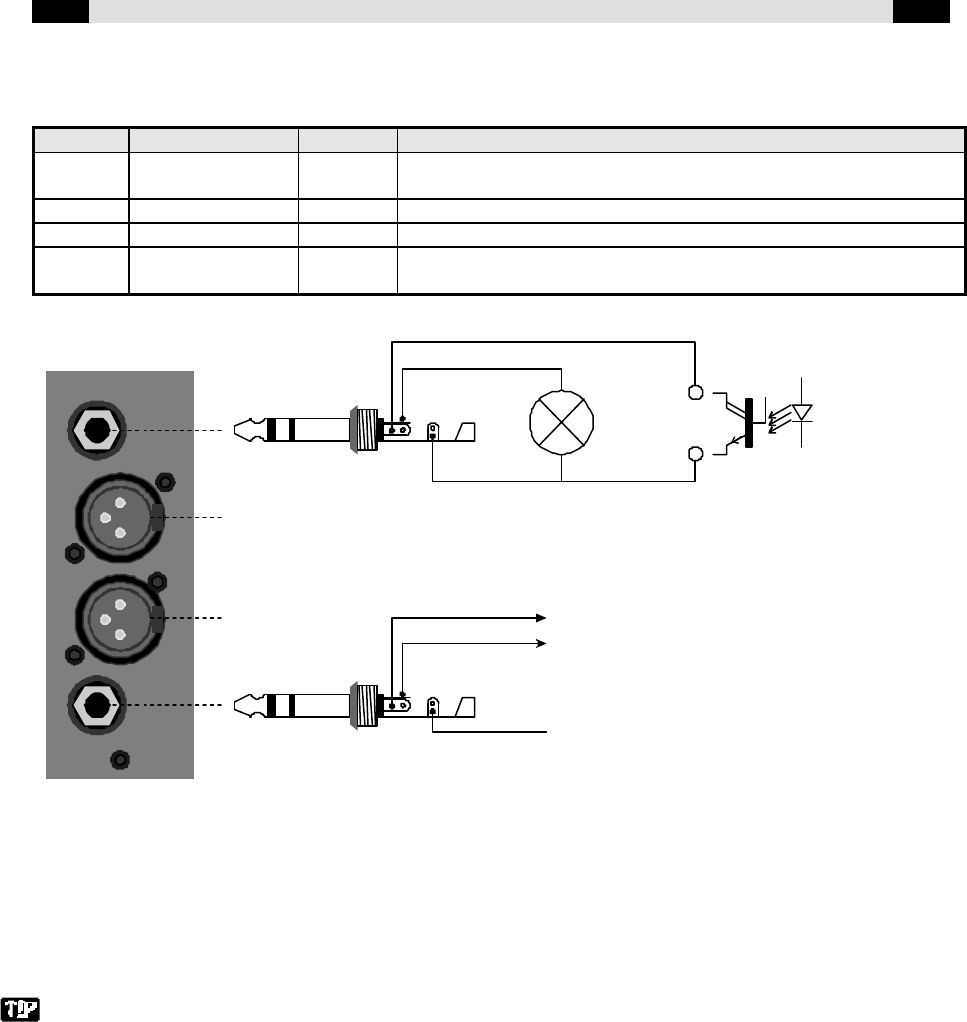

At the BCS52(E) connectorboard four connectors can be found:
Name Type In/ Out Description
CTRL 6.3mm stereo
jack
In & Out Channel on indicator and PFL input
LINE 1 XLR-F In Stereo line 1 input
LINE 2 XLR-F In Stereo line 2 input
CUE 6.3mm stereo
jack
Out Start/ stop output
Technical description
CTRL Ext. PFL logical input: 15V, 100kOhm; pulldown. Lamp power: 12Vdc, 1W max
This connector has two functions: connecting an external module-on indicator and a
logical input for an external PFL switch. When this input is pulled low (with an opto-
coupler for example) the channel will switch the PFL on. These functions are only
available when line 1 is active.
With the external PFL it is possible to switch the channel to PFL automatically when the
PLAY-button of the connected device is pressed. The device can be started with the
start-output when the module is activated.
LINE 1/ LINE2 Input level: -14 ... +20 dBm, Impedance: 10 kOhm
Connection for unbalanced stereo line inputs. With an optional RIAA add-on PCB it is
possible to connect a record player.
CUE Maximum ratings: 24Vdc, 10mA
Opto-coupler outputs to start and stop the connected equipment. As a maximum
24Vdc, or 10mA current may be switched. The outputs are active continuously (not
pulsed). This function is only available when line 1 is selected.
CTRL
LINE 1
LINE 2
S= com
R= stop
T= start
BCS50
CUE
1= GND
2= R
3= L
Line 2
Pen 1: GND
Pen 2: Right
Pen 3: Left
ring
ring
tip
tip
Channel
on lamp
External PFL
Common
Start
Stop
Line 1:
Pen 1: GND
Pen 2: Right
Pen 3: Left
