EN DATEQ BCS50 user manual BCS52 dual stereo line module 11

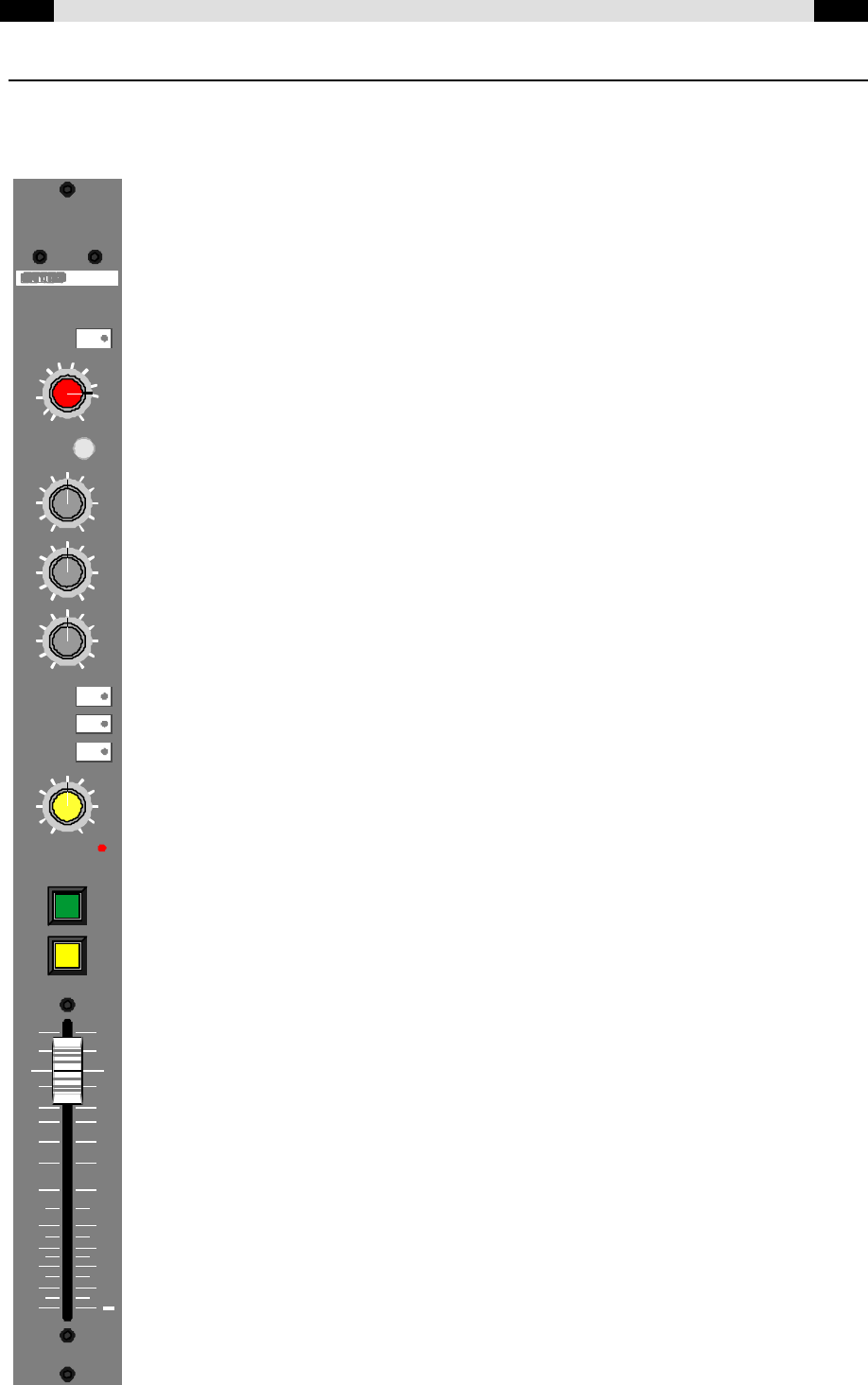

BCS52 dual stereo line module
To a BCS52 module two stereo line-sources can be connected. BCS modules are available
with (BCS52E) and without three way tone control (BCS52). A normal BCS52(E) module has
two unbalanced stereo line inputs. BCS52S(E) and BCS52N(E) modules have two balanced
stereo line inputs.
LINE 1/ Input source selector. When the switch is pressed line2 will
LINE 2 be activated and the LED will be illuminated.
GAIN Combined input-sensitivity control.
MONO When the switch is pressed the left and the right signal will be
combined to a mono format.
HIGH High tone control. (BCS52E, BCS52SE, BCS52NE)
MID Mid tone control. (BCS52E, BCS52SE, BCS52NE)
LOW Low tone control. (BCS52E, BCS52SE, BCS52NE)
AUX Routes the signal to the AUX-buss.
AUD Routes the signal to the AUD-buss.
PGM Routes the signal to the PGM-buss.
BAL Balance control. Determines the left/ right ratio of the signal.
OVERL. This LED illuminates when the signal in the module is too high,
and in danger of becoming distorted.
PFL Pre-Fader Listening. By pressing this switch the signal will be
audible on the head-phones.
ON Switch to activate the module. When the ON-lamp lights up the
signal can be heard on the selected busses (AUX, AUD, PGM).
When faderstart is configured the lamp will automatically light up
when the fader is opened.
When the module is activated the PFL function will reset.
FADER With the fader the signal-level can be controlled. The nominal level
is 0dB.
-60
-50
-40
0
-3
-6
-9
-12
-15
-20
-30
+3
+6
PFL
ON
BCS52
ON
+6
3
0
6
9
15
20
30
-40
oo
GAIN
12
5
4
3
2
+1
0
-1
2
3
4
5
HIGH
5
4
3
2
+1
0
-1
2
3
4
5
MID
5
4
3
2
+1
0
-1
2
3
4
5
LOW
MONO
AUX
PGM
AUD
5
4
3
2
1R
0
L1
2
3
4
5
BAL
overload
LINE 1
LINE 2
INPUT
