ADIO WIRELESS BRIDGE USER’S MANAUL REV. 02 17
Step 2: On the Wireless Bridge information terminal (COM44 in this example) the set uart.rate 115200 is
issued followed by set store.

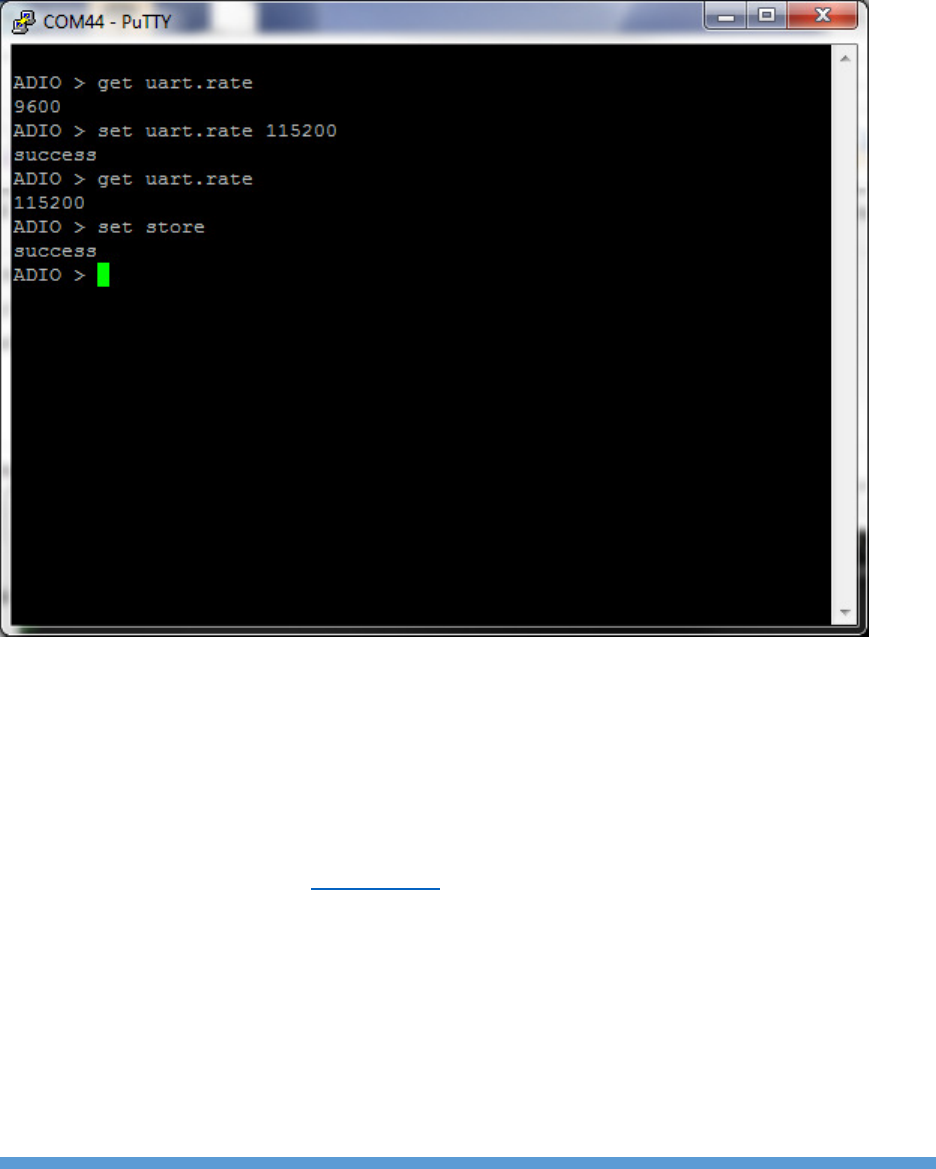

Fig. 12 Uart Rate Setting Example
Configuring the XBee Module
The ADIO wireless bridge utilizes the Digi XBee module. Consequently, all radio settings can be read or
set with Digi AT commands or Digi X-CTU software. As a general rule the only commands that might
need be set are the Networking and Serial Interfacing commands. Any I/O commands or other features
are not used. See Digi’s website at www.digi.com and the XBee user manual and discussion forums for
more information.
