3.2 CONNECTION TO USB PERIPHERALS
You can connect the Memor X3 to a standard USB keyboard or to a standard USB
flash memory device. Connect the terminal to a standard A (4 pin female) to micro A
(5 pin male) USB cable. For all these devices maximum current draw must be less
than 100mA.

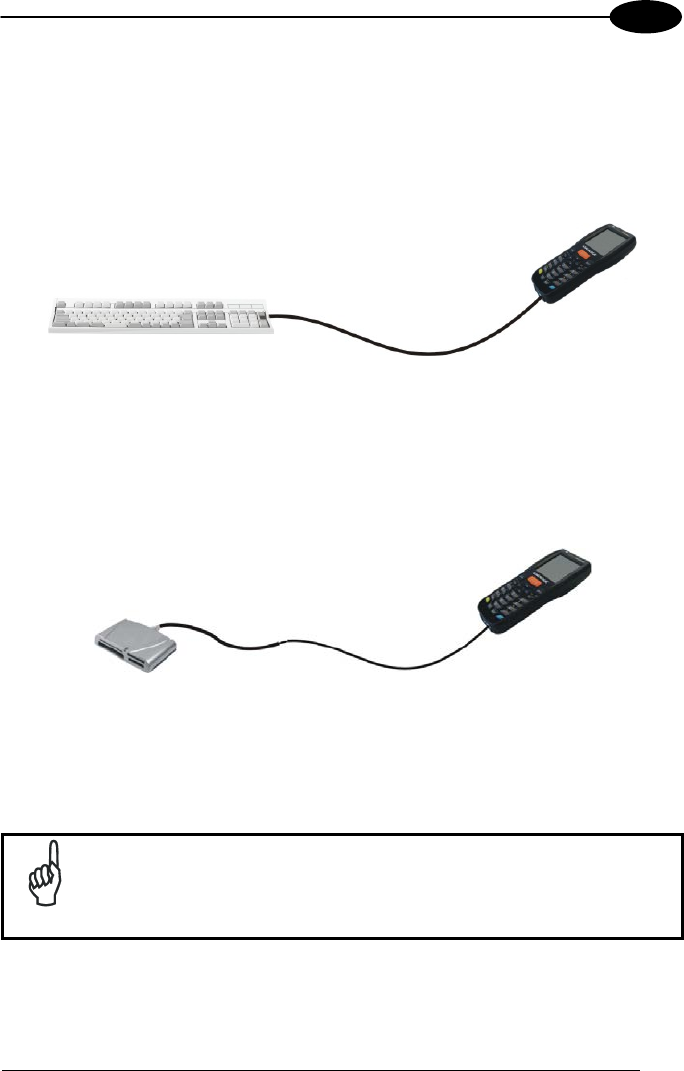

Key:
A Keyboard with USB interface C 94A051024 (Standard A to Micro A USB
cable)
B Memor X3
Key:
A USB hard drive/ external
memory source
C 94A051024 (Standard A to Micro A USB
cable)
B Memor X3
Connect first the USB peripheral to the cable, and then the cable to
the Memor X3.
