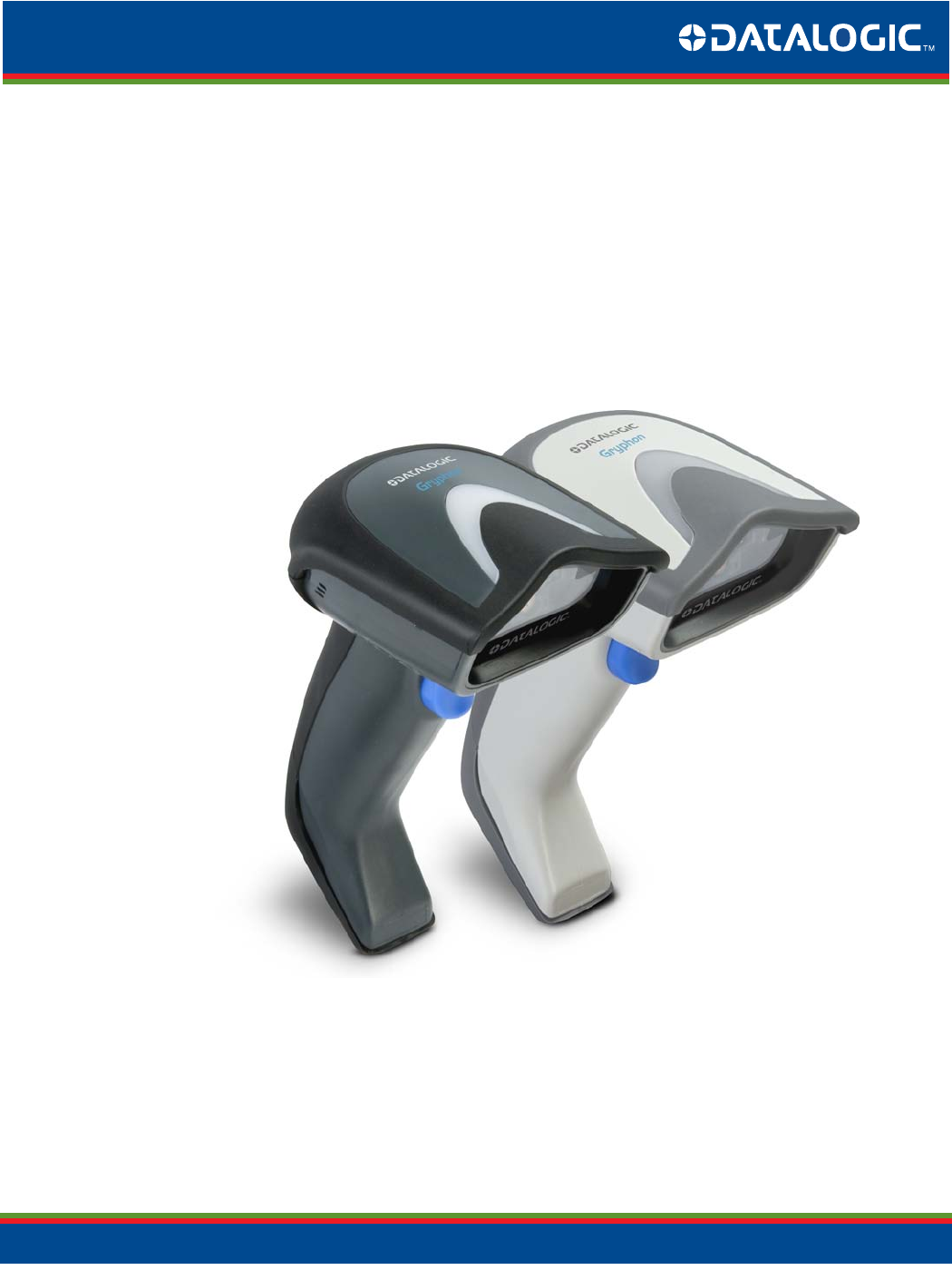

Gryphon™ I GD4100 Linear Imager Barcode Reader Product Reference Guide
Datalogic Scanning, Inc. 959 Terry Street Eugene, Oregon 97402 Telephone: (541) 683-5700 Fax: (541) 345-7140 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic Scanning”).
Table of Contents Introduction...................................................................................................................................................................................... 7 About this Guide ............................................................................................................................................................................................................................................... 7 Manual Overview ......................
Contents RS-232/USB-Com Interfaces .......................................................................................................................................................... 59 Introduction ......................................................................................................................................................................................................................................................59 Standard Factory Settings ...............................
Contents Symbologies ................................................................................................................................................................................ 127 Introduction ................................................................................................................................................................................................................................................... 127 1D Symbologies ..................................
Contents Code 39 Check Character Transmission .................................................................................................................................................................................... 173 Code 39 Start/Stop Character Transmission ............................................................................................................................................................................ 173 Code 39 Full ASCII ...........................................
Contents Codabar Start/Stop Character Match ......................................................................................................................................................................................... 233 Codabar Quiet Zones ....................................................................................................................................................................................................................... 234 Codabar Minimum Reads ................
Contents Control Character Emulation ................................................................................................................................................................................................................... 305 Single Press and Release Keys .......................................................................................................................................................................................................
Chapter 1 Introduction About this Guide This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product are downloadable free of charge from the website listed on the back cover of this manual. Typically, units are factory-programmed for the most common terminal and communications settings.
Introduction Chapter 11, Data Editing offers advanced configuration options for customization of scanned data output. Chapter 12, Symbologies defines options for all symbologies and provides the programming barcodes necessary for configuring these features. Appendix A, Technical Specifications lists physical and performance characteristics, as well as environmental and regulatory specifications. It also provides standard cable pin-outs.
Technical Support Technical Support Datalogic Website Support The Datalogic website (www.scanning.datalogic.com) is the complete source for technical support and information for Datalogic products. The site offers product support, product registration, warranty information, product manuals, product tech notes, software updates, demos, and instructions for returning products for repair.
Introduction NOTES 10 Gryphon™ I GD4100
Chapter 2 Getting Started About the Reader Advancements in the LED technology used in this reader significantly improve the illumination of the target field of view, resulting in higher scan efficiency. Whether used in Single Trigger or Continuous Mode, the ergonomic design of the reader will help to promote comfortable handling during extended periods of use. See "Interface Selection"on page 17 for a listing and descriptions of available interface sets by model type.
Getting Started Install the Interface Cable Connect the reader cable by inserting the cable into the handle as shown in Figure 1. To remove it, insert a paper clip into the release aperture, then unplug the cable. Figure 1. Connect/disconnect the cable RS-232 Serial Connection Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the RS-232 cable as shown in Figure 2.
Setting Up the Reader Keyboard Wedge Connection The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC. Reference Figure 3. Figure 3. Keyboard Wedge Interface connection USB Connection Connect the reader to a USB port on the terminal/PC using the correct USB cable for the interface type you ordered. Reference Figure 4. Figure 4.
Getting Started B Figure 5. Other Interface Connections US Ke W ybo ed ard ge or... IBM NOTE or... Specific cables are required for connection to different hosts. The connectors illustrated above are examples only. Actual connectors may vary from those illustrated, but the steps to connect the reader remain the same. Programming The reader is factory-configured with a set of default features standard.
Resetting the Standard Product Defaults Select the Interface Type Upon completing the physical connection between the reader and its host, proceed directly to "Interfaces"on page 17 for information and programming for the interface type the reader is connected to (for example: RS-232, Keyboard Wedge, USB, etc.) and scan the appropriate barcode in that section to select your system’s correct interface type.
Getting Started NOTES 16 Gryphon™ I GD4100
Chapter 3 Interfaces Interface Selection Each reader model will support one of the following sets of host interfaces: General Purpose Models RS-232 RS-232 OPOS USB Keyboard Wedge Retail Point of Sale Models RS-232 RS-232 OPOS USB IBM 46XX Configuring the Interface Scan the programming barcode from this section which selects the appropriate interface type matching the system the reader will be connected to.
Interfaces Table 1.
Configuring the Interface KEYBOARD FEATURES AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key Select KBD-AT-ALT Set KEYBOARD WEDGE Interface Features starting on page 79 Keyboard Wedge for IBM AT PS2 with alternate key encoding but without external keyboard Select KBD-AT-ALT-NK PC/XT w/S
Interfaces KEYBOARD — cont.
Global Interface Features Global Interface Features The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual: • RS-232 ONLY Interface on page 51 • Keyboard Interface on page 79 • USB-OEM Interface on page 93 • IBM 46XX Interface on page 95 • Wand Emulation Interface on page 101 Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands.
Interfaces USB Suspend Mode This setting enables/disables the ability of USB interfaces to enter suspend mode.
Chapter 4 General Features Double Read Timeout To prevent a double read of the same label, the Double Read Timeout sets the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the second read of the label will be ignored. Double Read Timeout does not apply to scan modes that require a trigger pull for each label that is read. ENTER/EXIT PROGRAMMING MODE Double Read Timeout = 0.
General Features Double Read Timeout — continued ENTER/EXIT PROGRAMMING MODE Double Read Timeout = 0.5 Second Double Read Timeout = 0.6 Second Double Read Timeout = 0.7 Second Double Read Timeout = 0.8 Second Double Read Timeout = 0.
Label Gone Timeout Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label. The timeout can be set within a range of 10 milliseconds to 2,550 milliseconds (2.55 seconds) in 10ms increments. Label Gone Timeout does not apply to scan modes that require a trigger pull for each label that is read Follow these instructions to set this feature: 1. Determine the desired setting in milliseconds. 2.
General Features Label Gone Timeout — cont. ENTER/EXIT PROGRAMMING MODE Select Label Gone Timeout Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Sleep Mode Timeout Sleep Mode Timeout Specifies the timeout value for the reader to enter low power Sleep Mode. When Sleep Mode is enabled the reader cannot receive commands from the Host or base station. In order for the reader to enter Sleep Mode, the following conditions must be met: RS-232 interface and trigger single, trigger multiple or trigger pulse.
General Features Sleep Mode Timeout — continued ENTER/EXIT PROGRAMMING MODE Sleep Mode Timeout = 5 Seconds Sleep Mode$ Timeout = 6 Seconds $ Timeout = 7 Seconds Sleep Mode Sleep Mode Timeout = 8 Seconds Sleep Mode Timeout = 9 Seconds Sleep Mode Timeout = 10 Seconds max.
LED and Beeper Indicators LED and Beeper Indicators Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power.
General Features Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a barcode. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit • Good Read = Indicate after CTS goes inactive, then active. This option, which uses CTS, is only valid for RS232 interfaces.
LED and Beeper Indicators Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound.
General Features Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) ENTER/EXIT PROGRAMMING MODE Good Read Beep Frequency = Low Good Read Beep Frequency = Medium DEFAULT Good Read Beep Frequency = High Good Read Beep Length Specifies the duration of a good read beep.
LED and Beeper Indicators Good Read Beep Length — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Good Read Beep Length = 80 msec Good Read Beep Length = 100 msec Good Read Beep Length = 120 msec Good Read Beep Length = 140 msec Good Read Beep Length = 160 msec Good Read Beep Length = 180 msec Good Read Beep Length = 200 msec Product Reference Guide 33
General Features Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels.
LED and Beeper Indicators Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 10ms increments. Follow these instructions to set this feature: 1. Determine the desired setting in milliseconds. A setting of 0 means that the good read LED stays on until the next time the trigger is pulled. 2.
General Features Good Read LED Duration — cont. ENTER/EXIT PROGRAMMING MODE Select Good Read LED Duration Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL DEFAULT 020 = Good Read LED stays on for 2 seconds. Indicators are dimmed during sleep.
Scanning Features Scanning Features Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single.
General Features Scan Mode — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode Scan Mode = Trigger Object Sense 38 Gryphon™ I GD4100
Scanning Features Stand Mode Triggered Timeout This feature specifies the time to remain in Trigger Single mode after the trigger is pulled while in Stand Mode. This timeout is only used when the Scan Mode is configured as Stand Mode. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT Stand Mode Triggered Timeout = 0.5 Seconds Stand Mode Triggered Timeout = 1.
General Features Stand Mode Triggered Timeout — continued ENTER/EXIT PROGRAMMING MODE Stand Mode Triggered Timeout = 6 Seconds Stand Mode Triggered Timeout = 8 Seconds Stand Mode Triggered Timeout = Switch back to Trigger Single on trigger pull 40 Gryphon™ I GD4100
Scanning Features Stand Detection Specifies the behavior of the scanner when placed in a stand that contains autorecognition hardware.
General Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1. Determine the desired setting. 2. Pad the result with leading zeroes to yield three digits. For example: 0 = 000, 5 = 005, 20 = 020, etc. 3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Programming Mode. 4.
Scanning Features Scanning Active Time — cont. ENTER/EXIT PROGRAMMING MODE Select Scanning Active Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
General Features Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1. Determine the desired setting in milliseconds. 2. Divide the desired setting by 100 (setting is in 100ms increments). Pad the result with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc. 3.
Flash On Time Flash On Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash ON Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
General Features Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1. Determine the desired setting in milliseconds. 2. Divide the desired setting by 100 (setting is in 100ms increments). Pad the result with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc. 3.
Stand Mode Sensitivity Flash Off Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash OFF Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 06 = Flash is OFF for 600ms DEFAULT Stand Mode Sensitivity Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high.
General Features Stand Detection Specifies the behavior of the scanner when placed in a stand that contains autorecognition hardware.
Green Spot Duration Green Spot Duration Specifies the duration of the good read pointer beam after a good read.
General Features NOTES 50 Gryphon™ I GD4100
Chapter 5 RS-232 ONLY Interface Introduction Use the programming barcodes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in Chapter 6, RS-232/USB-Com Interfaces. RS-232 Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings.
RS-232 ONLY Interface Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device. With an improper baud rate setting, data may not reach the host correctly.
Baud Rate Baud Rate — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Baud Rate = 9600 Baud Rate = 19,200 Baud Rate = 38,400 Baud Rate = 57,600 Baud Rate = 115,200 Product Reference Guide 53
RS-232 ONLY Interface Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data.
Stop Bits Stop Bits The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. The number of stop bits selected (one or two) depends on the number the receiving terminal is programmed to accommodate. Set the number of stop bits to match host device requirements.
RS-232 ONLY Interface Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. • Select None when no parity bit is required. • Select Odd parity and the parity bit value is set to 0 or 1, based on data, to ensure that an odd number of 1 bits are contained in the coded character.
Handshaking Control Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Handshaking Control includes the following options: • RTS — RTS is asserted during transmissions. CTS is ignored. • RTS/CTS — RTS is asserted during transmissions. CTS gates transmissions. • RTS/XON/XOFF — RTS is asserted during transmissions. CTS is ignored. XON and XOFF gate transmissions.
RS-232 ONLY Interface NOTES 58 Gryphon™ I GD4100
Chapter 6 RS-232/USB-Com Interfaces Introduction The programming barcodes in this chapter allow modifications to the standard RS-232 and USB-Com interfaces. Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings.
RS-232/USB-Com Interfaces Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. To set the delay: 1. Determine the desired setting in milliseconds. 2. Divide the desired setting by 10 (setting is in 10ms increments). Pad the result with leading zeroes to yield two digits.
Intercharacter Delay Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
RS-232/USB-Com Interfaces Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a character is detected on the RS-232 serial line. is issued to gain a user's attention to an illegal entry or other important event. ENTER/EXIT PROGRAMMING MODE DEFAULT Beep On ASCII BEL = Disable Beep On ASCII BEL = Enable Beep On Not on File This option enables/disables the action of the reader to sound a three beep sequence upon receiving a Not-On-File (NOF) host command.
ACK NAK Options ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: • Disable • Enable for label transmission — The reader expects an ACK/NAK response from the host when a label is sent. • Enable for host-command acknowledge — The reader will respond with ACK/NAK when the host sends a command.
RS-232/USB-Com Interfaces ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters. 8-bit data is not recognized when the option Data Bits has been set as 7 Data Bits. NOTE To set this feature: 1. Determine the desired character or value. 2.
ACK NAK Options ACK Character — cont.
RS-232/USB-Com Interfaces NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters. 8-bit data is not recognized when the option Data Bits has been set as 7 Data Bits. NOTE To set this feature: 1. Determine the desired character or value. 2.
ACK NAK Options NAK Character — cont.
RS-232/USB-Com Interfaces ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1. Determine the desired setting in milliseconds. 2. Divide the desired setting by 200 (setting is in 200ms increments). Pad the result with leading zeroes to yield two digits.
ACK NAK Options ACK NAK Timeout Value — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Timeout Value Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
RS-232/USB-Com Interfaces ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries. To set this feature: 1. Determine the desired setting. 2. Pad the number with leading zeroes to yield three digits. For example: 0 = 000, 5 = 005, 20 = 020, etc. 3.
ACK NAK Options ACK NAK Retry Count — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Retry Count Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
RS-232/USB-Com Interfaces ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host.
Indicate Transmission Failure Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode.
RS-232/USB-Com Interfaces Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters. 8-bit data is not recognized when the option Data Bits has been set as 7 Data Bits. NOTE To set the value: 1. Determine the desired character or value.
Disable Character Disable Character — cont.
RS-232/USB-Com Interfaces Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters. 8-bit data is not recognized when the option Data Bits has been set as 7 Data Bits. NOTE To set this feature: Determine the desired character or value.
Enable Character Enable Character — cont.
RS-232/USB-Com Interfaces NOTES 78 Gryphon™ I GD4100
Chapter 7 Keyboard Interface Introduction Use the programming barcodes in this chapter to select options for USB Keyboard and Wedge Interfaces. Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings. Scancode Tables Information about control character emulation which applies to keyboard interfaces is listed in Appendix F, Scancode Tables.
Keyboard Interface Country Mode This feature specifies the country/language supported by the keyboard. Only the following interfaces support ALL Country Modes.
Country Mode Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in the Country Mode feature description. Country Mode = Denmark Country Mode = France Country Mode = Germany Supports only the interfaces listed in the Country Mode feature description. Country Mode = Hungary Country Mode = Italy Supports only the interfaces listed in the Country Mode feature description.
Keyboard Interface Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in the Country Mode feature description. Country Mode = Poland Supports only the interfaces listed in the Country Mode feature description. Country Mode = Portugal Supports only the interfaces listed in the Country Mode feature description. Country Mode = Romania Supports only the interfaces listed in the Country Mode feature description.
Caps Lock State Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. ENTER/EXIT PROGRAMMING MODE DEFAULT Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable Numlock This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface.
Keyboard Interface Send Control Characters This feature Specifies how the reader transmits ASCII control characters to the host. Reference Appendix F, Scancode Tables for more information about control characters. Options are as follows: Control Character 00 . Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1. Control Character 01 .
Wedge Quiet Interval Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the reader breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface. NOTE Follow these instructions to set this feature: 1. Determine the desired setting in milliseconds. 2. Divide the desired setting by 10 (setting is in 10ms increments).
Keyboard Interface STEP ACTION 1 Desired Setting 6 EXAMPLES 10ms 150ms 600ms 850ms Scan ENTER/EXIT PROGRAMMING MODE Wedge Quiet Interval — cont. ENTER/EXIT PROGRAMMING MODE Select Wedge Quiet Interval Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. This feature applies ONLY to the Keyboard Wedge interface. NOTE To set the delay: 1. Determine the desired setting in milliseconds. 2. Divide the desired setting by 10 (setting is in 10ms increments).
Keyboard Interface Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Intercode Delay Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2. Pad the number with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc 3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Programming Mode. 4. Scan the barcode: SELECT INTERCODE DELAY SETTING. 5.
Keyboard Interface Intercode Delay — cont. ENTER/EXIT PROGRAMMING MODE Set Intercode Delay Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
USB Keyboard Speed USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface.
Keyboard Interface USB Keyboard Speed — continued ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed = 6ms USB Keyboard Speed = 7ms USB Keyboard Speed = 8ms USB Keyboard Speed = 9ms USB Keyboard Speed = 10ms 92 Gryphon™ I GD4100
Chapter 8 USB-OEM Interface Introduction Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter and Chapter 9, IBM 46XX Interface to specifically configure for the USB-OEM interface. Other USB interfaces are included in the appropriate chapter for their host type. Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings.
USB-OEM Interface USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of barcode scanners. Depending on what other scanners you may already have connected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate. Options are: • Table Top Scanner • Handheld Scanner It may be necessary to switch device usage when connecting two readers/scanners of the same type to a POS system.
Chapter 9 IBM 46XX Interface Introduction Use the barcodes in this section to configure programmable features for available IBM 46XX interfaces. IBM Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings.
IBM 46XX Interface 46xx Number of Host Resets Specifies how many consecutive resets are processed before the reader starts a five-second period to allow the user to enter Programming Mode and configure the reader. The configurable range for this feature is 1 to 15 resets.
46xx Number of Host Resets 46xx Number of Host Resets — cont.
IBM 46XX Interface 46xx Number of Host Resets — cont.
Transmit Labels in Code 39 Format Transmit Labels in Code 39 Format This feature enable/disables translation to Code 39 before transmitting label data to an IBM46XX or a USB-OEM host. Only the symbology identifier is modified for the translation. The data is not converted to Code 39 or verified to be valid for Code 39. Options are: IBM Standard Format. Send labels in standard IBM format. Code 39 Format.
IBM 46XX Interface NOTES 100 Gryphon™ I GD4100
Chapter 10 Wand Emulation Interface Introduction This chapter provides feature/settings configuration for the Wand Emulation interface. Wand Emulation Standard Factory Settings Reference Appendix C, Standard Defaults for a listing of standard factory settings. Wand Idle State This feature specifies the level of the Wand output signal when the reader is idle. TTL logic levels: 0V <= Low <= 0.7V 2.4V <= High <= 5.
Wand Emulation Interface Wand Polarity This option specifies the polarity of the Wand output signal. Choices are: • Quiet zones and spaces are high, bars are low • Quiet zones and spaces are low, bars are high TTL logic levels: 0V <= Low <= 0.7V 2.4V <= High <= 5.
Wand Signal Speed Wand Signal Speed This feature specifies the speed of the Wand output signal per nominal bar or space. Choices are: • 330 microseconds • 660 microseconds TTL logic levels: 0V <= Low <= 0.7V 2.4V <= High <= 5.
Wand Emulation Interface Label Symbology Conversion When this feature is enabled for the Wand Emulation interface, all barcode labels are converted to a single symbology. Options are: • No conversion • Convert to Code 39 symbology • Convert to Code 128 symbology In the Wand Emulation interface, the full ASCII Code39 encoding scheme is selected by enabling the Code 39 Full ASCII configuration item.
Transmit Noise Transmit Noise This option specifies the leading/trailing noise for the Wand interface. Choices are: • Disable (no leading/trailing noise) • Enable leading noise • Enable trailing noise • Enable leading and trailing noise In the Wand Emulation interface, the full ASCII Code39 encoding scheme is selected by enabling the Code 39 Full ASCII configuration item.
Wand Emulation Interface NOTES 106 Gryphon™ I GD4100
Chapter 11 Data Editing Data Editing Overview It is not recommended to use these features with IBM interfaces. CAUTION When a barcode is scanned, additional information can be sent to the host computer along with the barcode data. This combination of barcode data and supplementary user-defined data is called a “message string.” The features in this chapter can be used to build specific user-defined data into a message string.
Data Editing Please Keep In Mind... • • • • Modifying a message string is not a mandatory requirement. Data editing is sophisticated feature allowing highly customizable output for advanced users. Factory default settings for data editing is typically set to NONE. A prefix or suffix may be applied (reference the Symbologies chapter for these settings) across all symbologies (set via the Global features in this chapter).
Global Prefix/Suffix 5. If less than the expected string of 20 characters are selected, scan the ENTER/EXIT barcode to terminate the string. 6. Scan the ENTER/EXIT barcode once again to exit Programming Mode. 7. The resulting message string would appear as follows: Scanned barcode data:12345 Resulting message string output: $12345 This option sets up to 20 characters each from the set of ASCII characters or any hex value from 00 to FF.
Data Editing Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: • A close brace character (ASCII ‘]’), followed by... • A code character (see the table below), followed by... • A modifier character (the modifier character is symbol dependent).
Global AIM ID Global AIM ID — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Global AIM ID = Disable Global AIM ID = Enable Product Reference Guide 111
Data Editing GS1-128 AIM ID If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well. Contact Customer Support for assistance If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well.
Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x010xFF), used to identify a barcode (symbology) type. It can be appended previous to or following the transmitted barcode data depending upon how this option is enabled. This feature provides options for configuring custom Label IDs as a pre-loaded set (see "Label ID: Pre-loaded Sets"on page 113) or individually per symbology (see "Label ID: Set Individually Per Symbology"on page 115).
Data Editing Symbology Default Label ID set Alternate Label ID set CODE39 * 2A0000 V 560000 CODE4 4 340000 4 340000 CODE5 j 6A0000 j 6A0000 CODE93 & 260000 U 550000 GS1 DATABAR OMNIDIRECTIONAL R4 523400 u 750000 GS1 DATABAR EXPANDED RX 525800 t 740000 GS1 DATABAR LIMITED RL 524C00 v 760000 s 730000 s 730000 000000 k 6B0000 DATALOGIC 2OF5 GS1-128 EAN13 F 460000 B 420000 EAN13 P2 F 460000 L 4C0000 EAN13 P5 F 460000 M 4D0000 EAN13 P8 F 460000 # 23
Label ID Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT barcode. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate barcode in the section "Label ID Control"on page 117. Reference Figure 9 for Label ID positioning options if multiple identification features are enabled. 3.
Data Editing Label ID — continued Table 18. Label ID Examples STEP ACTION EXAMPLES 1. Scan the ENTER/EXIT barcode (Scanner enters Programming Mode) 2. Determine placement of the Label ID characters BEFORE or AFTER with regard to scanned data using Label ID Control, starting on page 117 3. Enable as Prefix Scan the barcode selecting the symbology type you wish to designate label ID DataBar characters for using Label ID Omnidirectional Symbology Selection, starting on page 118.
Label ID Label ID — continued Label ID Control This option controls whether a Label ID is disabled, or sent as a prefix or suffix for a given symbology type. ENTER/EXIT PROGRAMMING MODE DEFAULT Label ID Transmission = Disable Label ID Transmission = Enable as Prefix Label ID Transmission = Enable as Suffix Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Data Editing Label ID — continued Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page 113 for full instructions.
Label ID Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page 113 for full instructions.
Data Editing Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page 113 for full instructions.
Label ID Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page 113 for full instructions.
Data Editing Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page 113 for full instructions.
Label ID Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See "Label ID"on page 113 for full instructions.
Data Editing Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. Case conversion affects ONLY scanned barcode data, and does not affect Label ID, Prefix, Suffix, or other appended data.
Character Conversion Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
Data Editing Character Conversion — continued ENTER/EXIT PROGRAMMING MODE Configure Character Conversion DEFAULT 126 0xFFFFFFFFFFFFFFFF Gryphon™ I GD4100
Chapter 12 Symbologies Introduction The reader supports the following symbologies (barcode types). Options for each symbology are included in this chapter.
Symbologies Coupon Control This feature is used to control the reader’s method of processing coupon labels. Options are: • Disable coupon decoding • Enable UPC/EAN coupon decoding • Enable GS1 DataBar coupon decoding To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the reader sees only the barcode you intend to scan. 3.
UPC-A UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A barcodes. ENTER/EXIT PROGRAMMING MODE UPC-A = Disable DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A barcode data.
Symbologies UPC-A — cont. Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-A to EAN-13 = Don’t Expand UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
UPC-A UPC-A — cont. UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as good read.
Symbologies UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E barcodes. ENTER/EXIT PROGRAMMING MODE UPC-E = Disable DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E barcode data.
UPC-E UPC-E — cont. Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-E to EAN-13 = Don’t Expand UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Symbologies UPC-E — cont. UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character.
UPC-E UPC-E — cont. UPC-E Minimum Reads This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read.
Symbologies GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the conversion taking place, the add-on information will be appended to the converted GTIN label.
EAN 13 EAN 13 The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 barcodes. ENTER/EXIT PROGRAMMING MODE EAN 13 = Disable DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 barcode data.
Symbologies EAN 13 — cont. EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label.
EAN 13 EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.
Symbologies EAN 13 — cont. EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read.
EAN 8 EAN 8 The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 barcodes. ENTER/EXIT PROGRAMMING MODE EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 barcode data.
Symbologies EAN 8 — cont. Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13.
EAN 8 EAN 8 — cont. EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read.
Symbologies UPC/EAN Global Settings This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
UPC/EAN Global Settings UPC/EAN Global Settings — cont. UPC/EAN Decoding Level — cont.
Symbologies UPC/EAN Global Settings — cont. UPC/EAN Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
UPC/EAN Global Settings UPC/EAN Global Settings — cont. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits.
Symbologies UPC/EAN Global Settings — cont. In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.
Add-Ons Add-Ons The following features apply to optional add-ons. Contact Customer Support for advanced programming of optional and conditional add-ons. NOTE Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): • P2 • P5 • GS1-128 If a UPC/EAN base label and a an add-on are both decoded, the reader will transmit the base label and add-on. If a UPC/ EAN base label is decoded without an add-on, the base label will be transmitted without an add-on.
Symbologies Add-Ons — cont. Optional Add-ons — cont.
Add-Ons Add-Ons — cont. Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see "Optional GS1-128 Add-On Timer"on page 154.
Symbologies Add-Ons — cont. Optional Add-On Timer — cont.
Add-Ons Add-Ons — cont. Optional Add-On Timer — cont.
Symbologies Add-Ons — cont. Optional GS1-128 Add-On Timer This option sets the timer expiration value to read the added part after reading the linear EAN/ UPC part. For UPC/EAN add-ons other than those of that type, see "Optional Add-On Timer"on page 151.
Add-Ons Add-Ons — cont. Optional GS1-128 Add-On Timer — cont.
Symbologies Add-Ons — cont. Optional GS1-128 Add-On Timer — cont.
Add-Ons Add-Ons — cont. P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label.
Symbologies Add-Ons — cont. P5 Add-Ons Minimum Reads This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label.
Add-Ons Add-Ons — cont. GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label.
Symbologies GS1 DataBar™ Omnidirectional The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional barcodes.
GS1 DataBar™ Omnidirectional GS1 DataBar™ Omnidirectional — cont. GS1 DataBar™ Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Omnidirectional label must be decoded before it is accepted as good read.
Symbologies GS1 DataBar™ Expanded The following options apply to the GS1 DataBar™ Expanded (formerly RSS Expanded) symbology. GS1 DataBar™ Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar™ Expanded barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Expanded = Disable GS1 DataBar™ Expanded = Enable GS1 DataBar™ Expanded GS1-128 Emulation When enabled, GS1 DataBar™ Expanded barcodes will be translated to the GS1-128 label data format.
GS1 DataBar™ Expanded GS1 DataBar™ Expanded — cont. GS1 DataBar™ Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Expanded label must be decoded before it is accepted as good read.
Symbologies GS1 DataBar™ Expanded — cont. GS1 DataBar™ Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar™ Expanded symbology. Variable Length. For variable-length decoding, a minimum length may be set. Fixed Length. For fixed-length decoding, two different lengths may be set.
GS1 DataBar™ Expanded GS1 DataBar™ Expanded — cont. GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set from 1 to 74 characters. Follow these instructions to set this feature: 1. Determine the desired character length (from 1 to 74).
Symbologies GS1 DataBar™ Expanded — cont. GS1 DataBar™ Expanded Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar™ Expanded Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
GS1 DataBar™ Expanded GS1 DataBar™ Expanded — cont. GS1 DataBar™ Expanded Set Length 2 This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set from 1 to 74 characters. A setting of 0 specifies to ignore this length (only one fixed length).
Symbologies GS1 DataBar™ Expanded — cont. GS1 DataBar™ Expanded Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar™ Expanded Set Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
GS1 DataBar™ Limited GS1 DataBar™ Limited The following options apply to the GS1 DataBar™ Limited (formerly RSS Limited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar™ Limited = Disable GS1 DataBar™ Limited = Enable GS1 DataBar™ Limited GS1-128 Emulation When enabled, GS1 DataBar™ Limited barcodes will be translated to the GS1-128 label data format.
Symbologies GS1 DataBar™ Limited — cont. GS1 DataBar™ Limited Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar™ Limited label must be decoded before it is accepted as good read.
Code 39 Code 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 barcodes.
Symbologies Code 39 — cont. Code 39 Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Code 39 check character.
Code 39 Code 39 — cont. Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 barcode data. ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Transmission = Don’t Send DEFAULT Code 39 Check Character Transmission = Send Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters.
Symbologies Code 39 — cont. Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters.
Code 39 Code 39 — cont. Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Symbologies Code 39 — cont. Code 39 Minimum Reads This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read.
Code 39 Code 39 — cont. Code 39 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels. • Choosing Level 5 results in a very aggressive decoder.
Symbologies Code 39 — cont. Code 39 Decoding Level — cont.
Code 39 Code 39 — cont. Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Symbologies Code 39 — cont. Code 39 Set Length 1 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set from 0 to 50 characters. Follow these instructions to set this feature: 1. Determine the desired character length (from 0 to 50). Pad the number with leading zeroes to yield two digits.
Code 39 Code 39 — cont. Code 39 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Code 39 — cont. Code 39 Set Length 2 This feature specifies one of the barcode lengths for Code 39 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the barcode’s check, data, and full-ASCII shift characters. The length does not include start/stop characters. The length can be set from 1 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length).
Code 39 Code 39 — cont. Code 39 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Code 39 — cont. Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels.
Code 39 Code 39 — cont. Code 39 Interdigit Ratio — cont.
Symbologies Code 39 — cont. Code 39 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Code 39 Code 39 Stitching This option enables/disables stitching for Code 39 labels. When parts of a Code 39 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Symbologies Code 32 The following options apply to the Code 32 (Italian Pharmaceutical Code) symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 barcodes.
Code 32 Code 32 — cont. Code 32 Check Character Transmission Enable this option to transmit the check character along with Code 32 barcode data. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 32 Check Character Transmission = Don’t Send Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission This option enables/disable transmission of Code 32 start and stop characters.
Symbologies Code 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 barcodes. ENTER/EXIT PROGRAMMING MODE Code 128 = Disable DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Code 128 Code 128 — cont. Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 barcode data. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Check Character Transmission = Don’t Send Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Symbologies Code 128 — cont. Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding).
Code 128 Code 128 — cont. Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Symbologies Code 128 — cont. Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read.
Code 128 Code 128 — cont. Code 128 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels. • Choosing Level 5 results in a very aggressive decoder.
Symbologies Code 128 — cont. Code 128 Decoding Level — cont.
Code 128 Code 128 — cont. Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Symbologies Code 128 — cont. Code 128 Set Length 1 This feature specifies one of the barcode lengths for Code 128 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set from 1 to 80 characters. Follow these instructions to set this feature: 1. Determine the desired character length (from 1 to 80). Pad the number with leading zeroes to yield two digits.
Code 128 Code 128 — cont. Code 128 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Code 128 — cont. Code 128 Set Length 2 This feature specifies one of the barcode lengths for Code 128 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set from 1 to 80 characters. A setting of 0 specifies to ignore this length (only one fixed length). Follow these instructions to set this feature: 1.
Code 128 Code 128 — cont. Code 128 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Code 128 — cont. Code 128 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Code 128 Code 128 — cont. Code 128 Stitching This option enables/disables stitching for Code 128 labels. When parts of a Code 128 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Symbologies GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GS1-128, GTIN-128, UCC-128, EAN-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: • Transmit GS1-128 labels in Code 128 data format. • Transmit GS1-128 labels in GS1-128 data format. • Do not transmit GS1-128 labels.
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 barcodes.
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character.
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 barcode data.
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read.
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. NOTE Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. 2 of 5 Decoding Level — cont.
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. The length includes the barcode’s check and data characters. The length can be set from 2 to 50 characters in increments of two. Follow these instructions to set this feature: 1. Determine the desired character length (from 2 to 50).
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. Datalogic 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for I 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. The length includes the barcode’s check and data characters. The length can be set from 2 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length). Follow these instructions to set this feature: 1.
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Stitching This option enables/disables stitching for I 2 of 5 labels. When parts of a I 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. Follett 2 of 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of imager to decode Follett 2 of 5 labels.
Datalogic 2 of 5 Datalogic 2 of 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the reader will not read Datalogic 2 of 5 barcodes.
Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Datalogic 2 of 5 check character.
Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Datalogic 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 Minimum Reads = 1 I 2 of 5 Minimum Reads = 2 I 2 of 5 Minimum Reads = 3 I 2 of 5 Minimum Reads = 4 Datalogic 2 of 5 Decoding Level The Datalogic 2 of 5 Decoding Level feature is set using "2 of 5 Decoding Level"on page 209.
Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Datalogic 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Datalogic 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. The length includes the barcode’s check and data characters. The length can be set from 2 to 50 characters in increments of two. Follow these instructions to set this feature: 1. Determine the desired character length (from 2 to 50).
Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Datalogic 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. The length includes the barcode’s check and data characters. The length can be set from 2 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length). Follow these instructions to set this feature: 1.
Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Stitching This option enables/disables stitching for Datalogic 2 of 5 labels. When parts of a Datalogic 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Codabar Codabar The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar barcodes.
Symbologies Codabar — cont. Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character. When disabled, any check character in the label is treated as a data character ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Check Character Calculation = Don’t Calculate Codabar Check Character Calculation = Enable AIM standard check char. Codabar Check Character Calculation = Enable Modulo 10 check char.
Codabar Codabar — cont. Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar barcode data. ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters.
Symbologies Codabar — cont. Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters.
Codabar Codabar — cont. Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match.
Symbologies Codabar — cont. Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Codabar Codabar — cont. Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read.
Symbologies Codabar — cont. Codabar Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels. • Choosing Level 5 results in a very aggressive decoder.
Codabar Codabar — cont. Codabar Decoding Level — cont.
Symbologies Codabar — cont. Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Codabar Codabar — cont. Codabar Set Length 1 This feature specifies one of the barcode lengths for Codabar Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s start, stop, check and data characters. The length must include at least one data character. The length can be set from 3 to 50 characters. Follow these instructions to set this feature: 1.
Symbologies Codabar — cont. Codabar Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Codabar Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Codabar Codabar — cont. Codabar Set Length 2 This feature specifies one of the barcode lengths for Codabar Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. The length includes the barcode’s start, stop, check and data characters. The length must include at least one data character. The length can be set from 3 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length).
Symbologies Codabar — cont. Codabar Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Codabar Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Codabar Codabar — cont. Codabar Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Codabar labels.
Symbologies Codabar — cont. Codabar Interdigit Ratio — cont.
Codabar Codabar — cont. Codabar Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Symbologies Codabar Stitching This option enables/disables stitching for Codabar labels. When parts of a Codabar barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Code 11 Code 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 barcodes.
Symbologies Code 11 — cont. Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.
Code 11 Code 11 — cont. Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character.
Symbologies Code 11 — cont. Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read.
Code 11 Code 11 — cont. Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Symbologies Code 11 — cont. Code 11 Set Length 1 This feature specifies one of the barcode lengths for Code 11 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s check and data characters. The length can be set from 2 to 50 characters. Follow these instructions to set this feature: 1. Determine the desired character length (from 2 to 50). Pad the number with leading zeroes to yield two digits.
Code 11 Code 11 — cont. Code 11 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Code 11 — cont. Code 11 Set Length 2 This feature specifies one of the barcode lengths for Code 11 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the barcode’s check and data characters. The length can be set from 2 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length). Follow these instructions to set this feature: 1.
Code 11 Code 11 — cont. Code 11 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Code 11 — cont. Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels.
Code 11 Code 11 — cont. Code 11 Interdigit Ratio — cont.
Symbologies Code 11 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels. • Choosing Level 5 results in a very aggressive decoder.
Code 11 Code 11 — cont. Code 11 Decoding Level — cont.
Symbologies Code 11 — cont. Code 11 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Code 11 Code 11 Stitching This option enables/disables stitching for Code 11 labels. When parts of a Code 11 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Symbologies Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 barcodes.
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Standard 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 Check Character Calculation = Disable Standard 2 of 5 Check Character Calculation = Enable Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character.
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 Minimum Reads = 1 Standard 2 of 5 Minimum Reads = 2 Standard 2 of 5 Minimum Reads = 3 Standard 2 of 5 Minimum Reads = 4 Standard 2 of 5 Decoding Level The Standard 2 of 5 Decoding Level feature is set using "2 of 5 Decoding Level"on page 209.
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology. Variable Length. For variable length decoding, a minimum and maximum length may be set. Fixed Length. For fixed length decoding, two different lengths may be set.
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the barcode’s check and data characters. The length can be set from 1 to 50 characters. Follow these instructions to set this feature: 1. Determine the desired character length (from 1 to 50).
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the barcode’s check and data characters. The length can be set from 1 to 50 characters. A setting of 0 specifies to ignore this length (only one fixed length). Follow these instructions to set this feature: 1.
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/ or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Standard 2 of 5 Standard 2 of 5 Stitching This option enables/disables stitching for Standard 2 of 5 labels. When parts of a Standard 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Symbologies ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Enable/Disable When disabled, the imager will not read ISBT barcodes. ENTER/EXIT PROGRAMMING MODE $ DEFAULT ISBT 128 = Disable ISBT 128 = Enable ISBT 128 Concatenation Use this option to enable/disable ISBT128 concatenation of 2 labels.
ISBT 128 ISBT 128 — cont. ISBT 128 Force Concatenation When enabled, this feature forces concatenation for ISBT. This option is only valid when ISBT 128 Concatenation is enabled. (see page 12-272). NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT ISBT 128 Force Concatenation = Disable ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options Contact Customer Support to set up pairs of label types for concatenation.
Symbologies Code 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of imager to decode Code 4 labels.
Code 4 Code 4 — cont. Code 4 Check Character Transmission This feature enables/disables transmission of an optional Code 4 check character. ENTER/EXIT PROGRAMMING MODE Code 4 Check Character Transmission = Don’t Send DEFAULT Code 4 Check Character Transmission = Send Code 4 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label data.
Symbologies Code 5 The following options apply to the Code 5 symbology. Code 5 Enable/Disable Enables/Disables ability of imager to decode Code 5 labels.
Code 5 Code 5 — cont. Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check character. ENTER/EXIT PROGRAMMING MODE Code 5 Check Character Transmission = Don’t Send DEFAULT Code 5 Check Character Transmission = Send Code 5 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label data.
Symbologies Code 4 and Code 5 Common Configuration Items The following options apply to both Code 4 and Code 5 symbologies. Code 4 and 5 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels. • Choosing Level 5 results in a very aggressive decoder.
Code 4 and Code 5 Common Configuration Items Code 4 and Code 5 Common Configuration Items — cont. Code 4 and 5 Decoding Level — cont.
Symbologies Code 4 and Code 5 Common Configuration Items — cont. Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read.
Appendix A Technical Specifications Table 35 contains Physical and Performance Characteristics, User Environment and Regulatory information. Table 36 provides Standard Cable Pinouts. Table 35. Technical Specifications Item Description Physical Characteristics Color White/Gray Gray/Gray Dimensions Height 7.1”/181 mm Length 3.9”/100 mm Width 2.8”/71 mm Weight (without cable) Approximately 6.
Technical Specifications Item Description Print Contrast Minimum 15% minimum reflectance Decode Capability UPC/EAN/JAN, P2 /P5 add-ons; Code 39; Code 32; Code 128; C128 ISBT; Code 128 add-ons; Interleaved 2 of 5; Follett 2 of 5; Standard 2 of 5; Code 11; Codabar; EAN 128; GS1 DataBar™ Omnidirectional, GS1 DataBar™ Limited, GS1 DataBar™ Expanded; Code4, Code5. Interfaces Supported(b) RS-232 Std, RS-232 Wincor-Nixdorf, RS-232 OPOS, IBM 46xx (ports5B and 9B), USB Com Std.
Technical Specifications Standard Cable Pinouts Figure 10 and Table 36 provide standard pinout information for the Base Station’s interface cable. Figure 10. Standard Cable Pinouts Bottom of Scanner Cable Strain Relief Pin 10 To Host Pin 1 Cable Clip (Latch) Cable Interface Cable Port The signal descriptions in Table 36 apply to the connector on the reader and are for reference only. Table 36.
Technical Specifications NOTES 284 Gryphon™ I GD4100
Appendix B LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The tables below list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and may or may not be turned on. For example, certain indications such as the power-up beep can be disabled using programming barcode labels.
LED and Beeper Indications LED and Beeper Indications INDICATION DESCRIPTION Power-up Beep The reader is in the process of powering-up. Good Read Beep A label has been successfully scanned by the reader. ROM Failure There is an error in the reader's software/programming Limited Scanning Label Read Indicates that a host connection is not established when the IBM or USB interface is enabled. Reader Active Mode The reader is active and ready to scan.
LED and Beeper Indications Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. The following table describes the LED flashes/beep codes associated with an error found.
LED and Beeper Indications NOTES 288 Gryphon™ I GD4100
Appendix C Standard Defaults The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming barcodes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features. Table 37. Standard Defaults Parameter Default Your Setting Page Number General Features Double Read Timeout 0.
Standard Defaults Parameter Default Your Setting Page Number Data Bits 8 Data Bits 54 Stop Bits 1 Stop Bit 55 None 56 Disable 57 RTS/CTS Scan Control — RTS is asserted during transmissions. CTS gates transmissions and controls enable and disable state of scanner.
Standard Defaults Parameter Default Your Setting Page Number No Global Prefix Global Suffix = 0x0D (CR) 108 Global AIM ID Disable 110 Label ID Control Disable 117 Case Conversion Disable 124 No Char Conversion 125 UPC-A Enable/Disable Enable 129 UPC-A Check Character Transmission Enable 129 Don’t Expand 130 Transmit 130 UPC-A Minimum Reads 1 131 UPC-E 2 132 Enable 132 Send 132 Expand UPC-E to EAN-13 Don’t Expand 133 Expand UPC-E to UPC-A Don’t Expand 133 Transmit
Standard Defaults Parameter EAN 8 Enable/Disable Default Your Setting Page Number Enable 141 Send 141 Expand EAN 8 to EAN 13 Disable 142 EAN 8 Minimum Reads 1 143 3 144 Disable 146 Disable 146 Disable 147 Disable P2, P5 and P8 149 Optional Add-On Timer 70 ms 151 Optional GS1-128 Add-On Timer Disable 154 P2 Add-Ons Minimum Reads 2 157 P5 Add-Ons Minimum Reads 1 158 GS1-128 Add-Ons Minimum Reads 1 159 GS1 DataBar™ Omnidirectional Enable/ Disable Disable 160 GS1 DataB
Standard Defaults Parameter Default Your Setting Page Number GS1 DataBar™ Limited Enable/Disable Disable 169 GS1 DataBar™ Limited GS1-128 Emulation Disable 169 GS1 DataBar™ Limited Minimum Reads 1 170 Enable 171 Calculate 172 Code 39 Check Character Transmission Send 173 Code 39 Start/Stop Character Transmission Don’t Transmit 173 Disable 174 Auto 175 Code 39 Minimum Reads 1 176 Code 39 Decoding Level 3 177 Code 39 Length Control Variable 179 Code 39 Set Length 1 2 180
Standard Defaults Parameter Default Your Setting Page Number Code 128 Decoding Level 3 195 Code 128 Length Control Variable 197 Code 128 Set Length 1 1 198 Code 128 Set Length 2 80 200 Code 128 Character Correlation Disable 202 Code 128 Stitching Enable 203 Transmit in Code 128 Data Format 204 ISBT 128 Enable/Disable Disable 272 ISBT 128 Concatenation Disable 272 ISBT 128 Force Concatenation Enable 273 ISBT 128 Advanced Concatenation Options Disable 273 I 2 of 5 Enable/Di
Standard Defaults Parameter Datalogic 2 of 5 Set Length 2 Default Your Setting Page Number 100 225 Datalogic 2 of 5 Character Correlation Disable 227 Datalogic 2 of 5 Stitching Disable 228 Disable 229 Don’t Calculate 230 Codabar Check Character Transmission Send 231 Codabar Start/Stop Character Transmission Don’t Transmit 231 abcd/abcd 232 Don’t Require Match 233 Auto 234 Codabar Minimum Reads 1 235 Codabar Decoding Level 3 236 Codabar Length Control Variable 238 Codaba
Standard Defaults Parameter Code 11 Stitching Default Your Setting Page Number Disable 261 Standard 2 of 5 Enable/Disable Disable 262 Standard 2 of 5 Check Character Calculation Disable 263 Send 263 Standard 2 of 5 Minimum Reads 1 264 Standard 2 of 5 Decoding Level 3 264 Standard 2 of 5 Length Control Variable 265 Standard 2 of 5 Set Length 1 8 266 Standard 2 of 5 Set Length 2 50 268 Standard 2 of 5 Character Correlation Disable 270 Standard 2 of 5 Stitching Disable 271 S
Appendix D Sample Barcodes The sample barcodes in this appendix are typical representations for their symbology types.
Sample Barcodes 12345678901231 Interleaved 2 of 5 Sample Barcodes — continued 00246897634 Code 32 5765485 Codabar Code 93 7554628485 Code 11 298 Gryphon™ I GD4100
Sample Barcodes GS1 DataBar™ (RSS) GS1 DataBar™ variants must be enabled to read the barcodes below (see GS1 DataBar™ (RSS) on page 299).
Sample Barcodes NOTES 300 Gryphon™ I GD4100
Appendix E Keypad Use the barcodes in this appendix to enter numbers as you would select digits/characters from a keypad.
Keypad 6 7 8 9 302 Gryphon™ I GD4100
Keypad A B C D E F Product Reference Guide 303
Keypad NOTES 304 Gryphon™ I GD4100
Appendix F Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Control Character 00 . Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1. Control Character 01 .
306 Gryphon™ I GD4100 Extended characters (sky blue) are sent through dedicated keys (when available in the selected country mode) or by using an Alt Mode sequence. Table F-1.
Product Reference Guide Table F-2. Scancode Set When Control Character is 02 Interface Type PC AT PS/2 or USB-Keyboard — cont.
308 Table F-3.
Product Reference Guide Table F-4. Scancode Set When Control Character is 02 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode — cont.
310 Table F-5.
Product Reference Guide Table F-6. Scancode Set When Control Character is 02 Digital Interface — cont.
312 Table F-7.
Product Reference Guide Table F-8. Scancode Set When Control Character is 02 IBM31xx 102-key — cont.
314 Table F-9.
Product Reference Guide Table F-10. Scancode Set When Control Character is 02 IBM XT — cont.
316 Gryphon™ I GD4100 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages.
Scancode Tables NOTES Product Reference Guide 317
Scancode Tables NOTES 318 Gryphon™ I GD4100
Index B G barcodes cancel 301 numeric barcodes 301 RS-232 baud rate 91 RS-232 parameters parity 82, 218, 272, 274, 276, 279 Beeper Pitch, Good Read 31, 32 Volume, Good Read 34 Beeper, Good Read 29 H Handheld Scanner Host Resets 96 C Cable Pinouts 283 Clear to Send 57 Code 39 Format 99 Conversion, case 124 Conversion, character 125 Convert to Code 128 104 Convert to Code 39 104 Coupon Control 128 CTS 57 94 I IBM interface selection 18 IBM Standard Format 99 Idle State (wand) 101 Indications 285 Interfa
Index P Performance Characteristics 281 Physical Characteristics 281 Pitch – Good Read, Beeper 31, 32 Polarity (wand) 102 Prefix/Suffix 108 Product Specifications 281 Programming Barcodes 14 R Read, Beeper – Good 29 Read, Beeper Pitch – Good 31, 32 Read, Beeper Volume – Good 34 Request to Send 57 RS-232 interface selection 18 RS-232 Serial Connection 12 RTS 57 Suffix 108 Symbology Conversion 104 symbology types 297 T Table Top Scanner 94 trailing noise 105 U UPC 129 USB Connection 13 USB interface sele
ASCII Chart ASCII Char. Hex No. ASCII Char. Hex No. ASCII Char. Hex No. ASCII Char. Hex No. NUL SOH STX ETX EOT ENQ ACK BEL BS HT LF VT FF CR SO SI DLE DC1 DC2 DC3 DC4 NAK SYN ETB CAN EM SUB ESC FS GS RS US 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F SP ! “ # $ % & ’ ( ) * + , .
Australia Datalogic Scanning Pty Ltd Telephone: [61] (2) 9870 3200 australia.scanning@datalogic.com Japan Datalogic Scanning KK Telephone: 81 (0)3 3491 6761 japan.scanning@datalogic.com France and Benelux Datalogic Scanning Sarl Telephone: [33].01.64.86.71.00 france.scanning@datalogic.com Latin America Datalogic Scanning, Inc Telephone: (305) 591-3222 latinamerica.scanning@datalogic.com Germany Datalogic Scanning GmbH Telephone: 49 (0) 61 51/93 58-0 germany.scanning@datalogic.
