Installation guide

SR200 & SR300 Card Printers and LM200 & LM200 Laminators Installation Guide 15

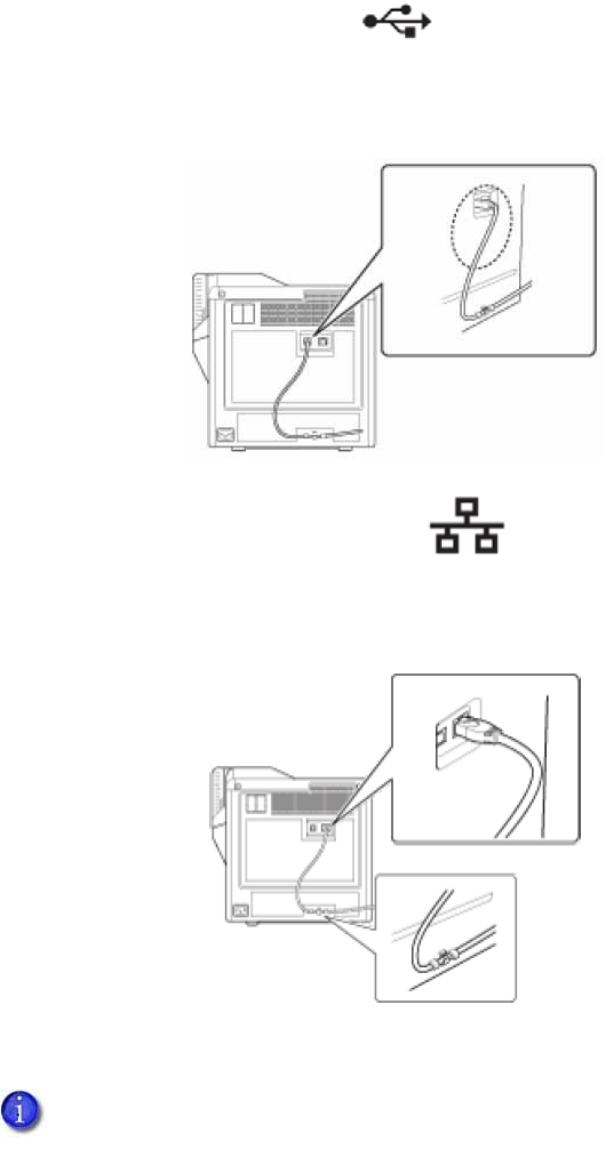

Connecting the USB Cable
ToconnectthecardprinterdirectlytoaPC,connectaUSBcabletotheUSBportatthebackof
theprinter.
f
Connecting the Network Cable
Tousethecardprinterwithanetwork,connectanetworkdatacabletotheEthernetportatthe
backoftheprinter.
If your printer includes an optional smart card reader, use only a USB cable for the data
cable. Network connection for encoding smart cards is not supported by the SR200 &
SR300 card printers.
