User`s guide

Maintaining the printer
4-9
User’s Guide for Express™ and Select™ Class Printers

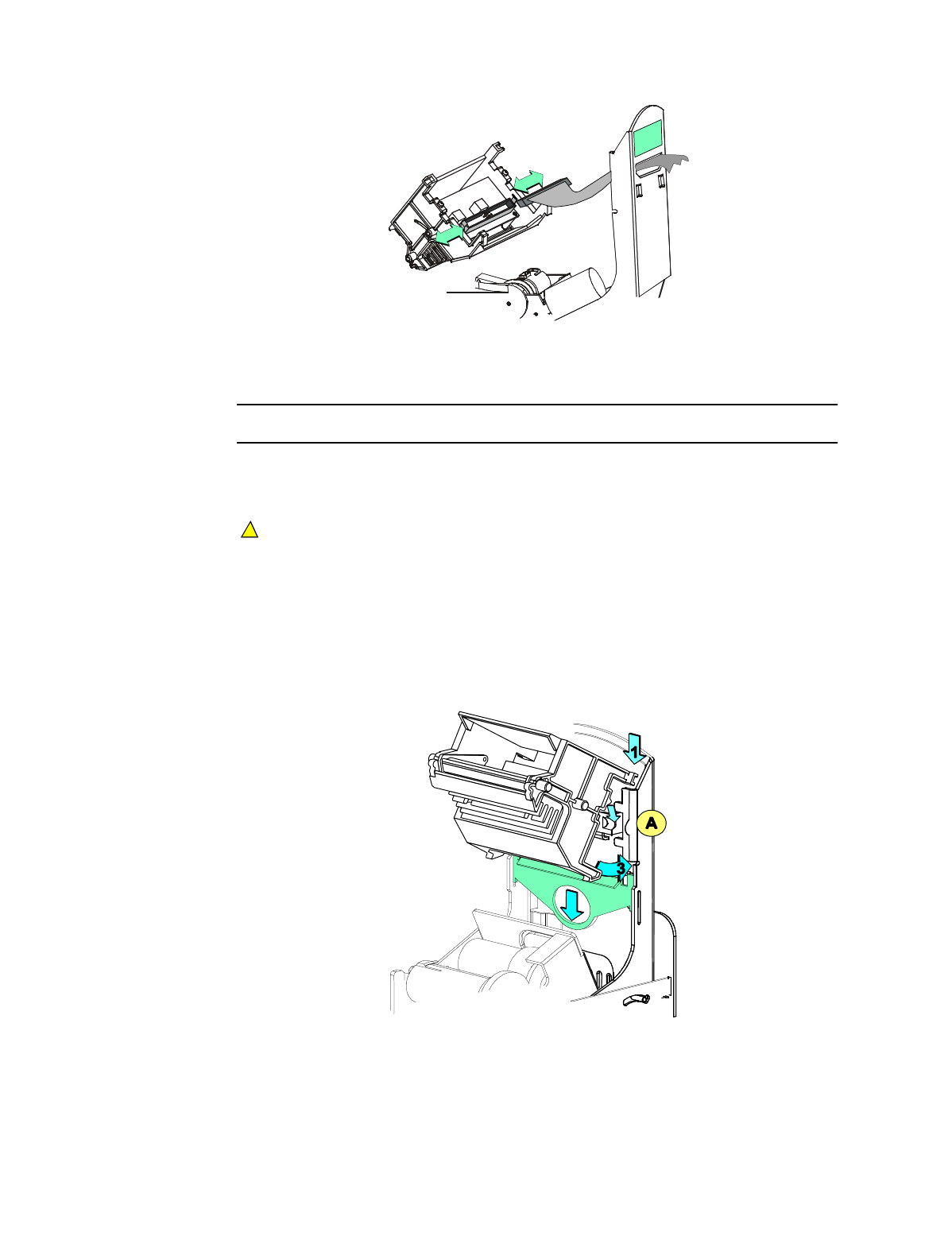

Figure 4-10: Remove or replace the printhead cable
♦
Replace the printhead cartridge
1 Push the printhead cable into the new printhead cartridge (see Figure 4-10). Make
sure the locking tabs are in place.
Do not press on the wires of the printhead cable.
2 Align the printhead cartridge pins with the printhead cartridge slots on the swing
arm (see Figure 4-11).
3 Slide the new printhead cartridge onto the swing arm, so the pins slide into slots
(step 1 in Figure 4-11).
4 Hold the printhead cartridge latch lever down (step 2 in Figure 4-11) and pivot the
printhead cartridge down toward the swing arm (step 3 in Figure 4-11).
Figure 4-11: Replace the printhead cartridge
!
2
