Getting started
User’s Guide for Express™ and Select™ Class Printers
Remove the print ribbon cartridge
1 Lift the top cover, as shown in Figure 2-6.

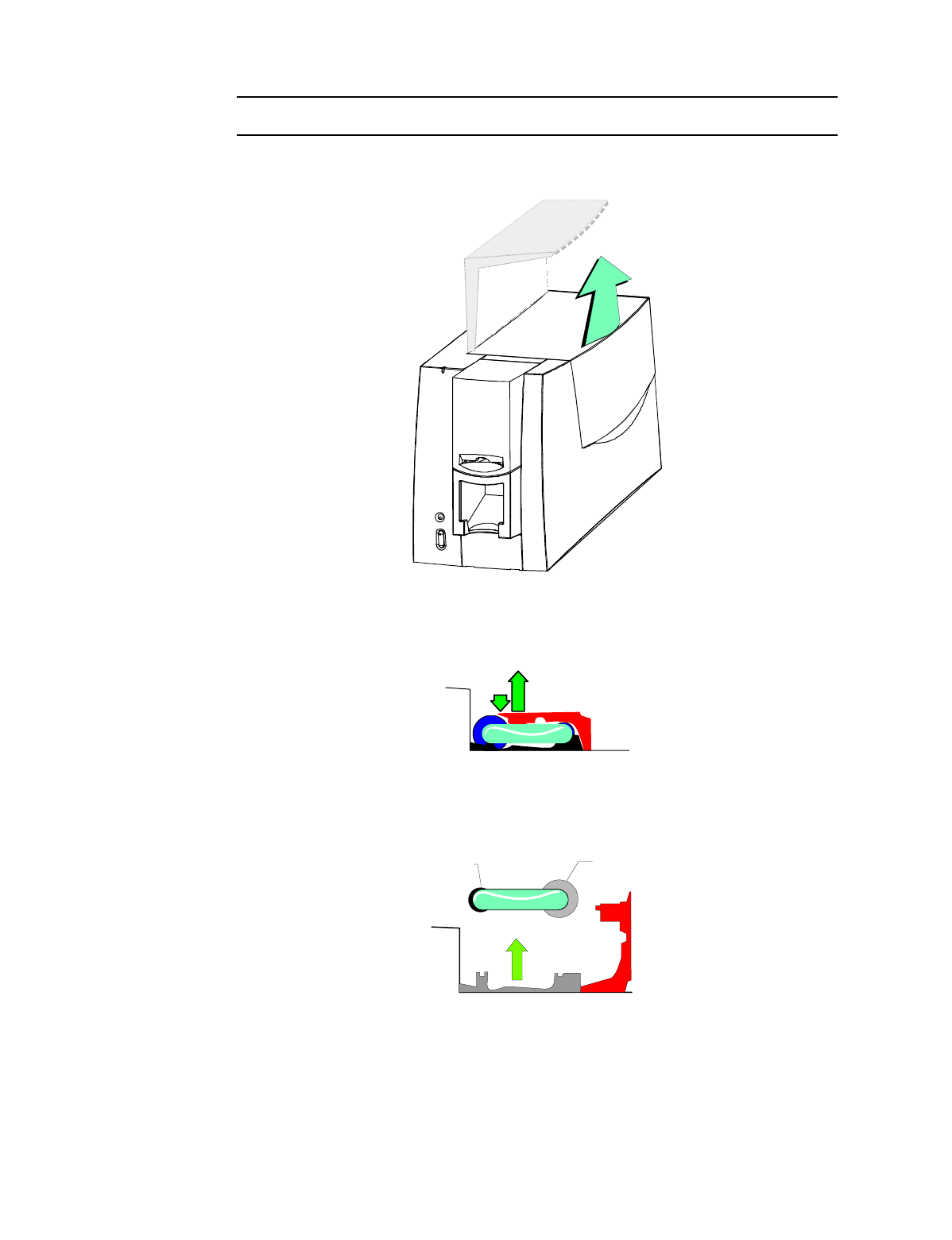

Figure 2-6: Open the cover
2 Press down on the swing arm (see Figure 2-7). The push latch releases the swing
arm. Lift the swing arm until it is fully open.
Figure 2-7: Open the swing arm
3 Grasp the ribbon cartridge handle, and lift up to remove the print ribbon cartridge
(see Figure 2-8).
Figure 2-8: Remove the print ribbon cartridge
♦
Ribbon take-up
Ribbon supply
