ProgRama Tools
ChipBurner-Gang 8
Features:
• Ideal for bringing costly outsourcing of
volume programming in house at a very
low cost
• Supports up to eight devices at
one-time - virtually any package any
technology
• Program hundreds of devices in
under an hour
• Fully self-contained stand-alone desktop
workstation for full gang, set and set-of-
sets programming-contains it's own PC
• PC-driven model is also available to keep
your entry costs at a minimum
• Industry’s first Microsoft
®
Windows
®
user interface allows user to see the
entire programming setup at a glance
• Serialization and unique label ID
• Revolutionary built-in PCMCIA FLASH
Memory Card and docking port provides
systematic storage for all customized
masters
• Free lifetime technical assistance and
device library updates ensure that you get
an easy start and stay on easy terms with
your ChipBurner
Contact:
ProgRama Tools
3500 NW Boca Raton Blvd.
Bay 501-506
Boca Raton FL 33431
TEL: [phone]
561-338-8843
FAX: [phone]
email: supportprogramatools.com
web:
www.programatools.com/programa.htm
Product Information:

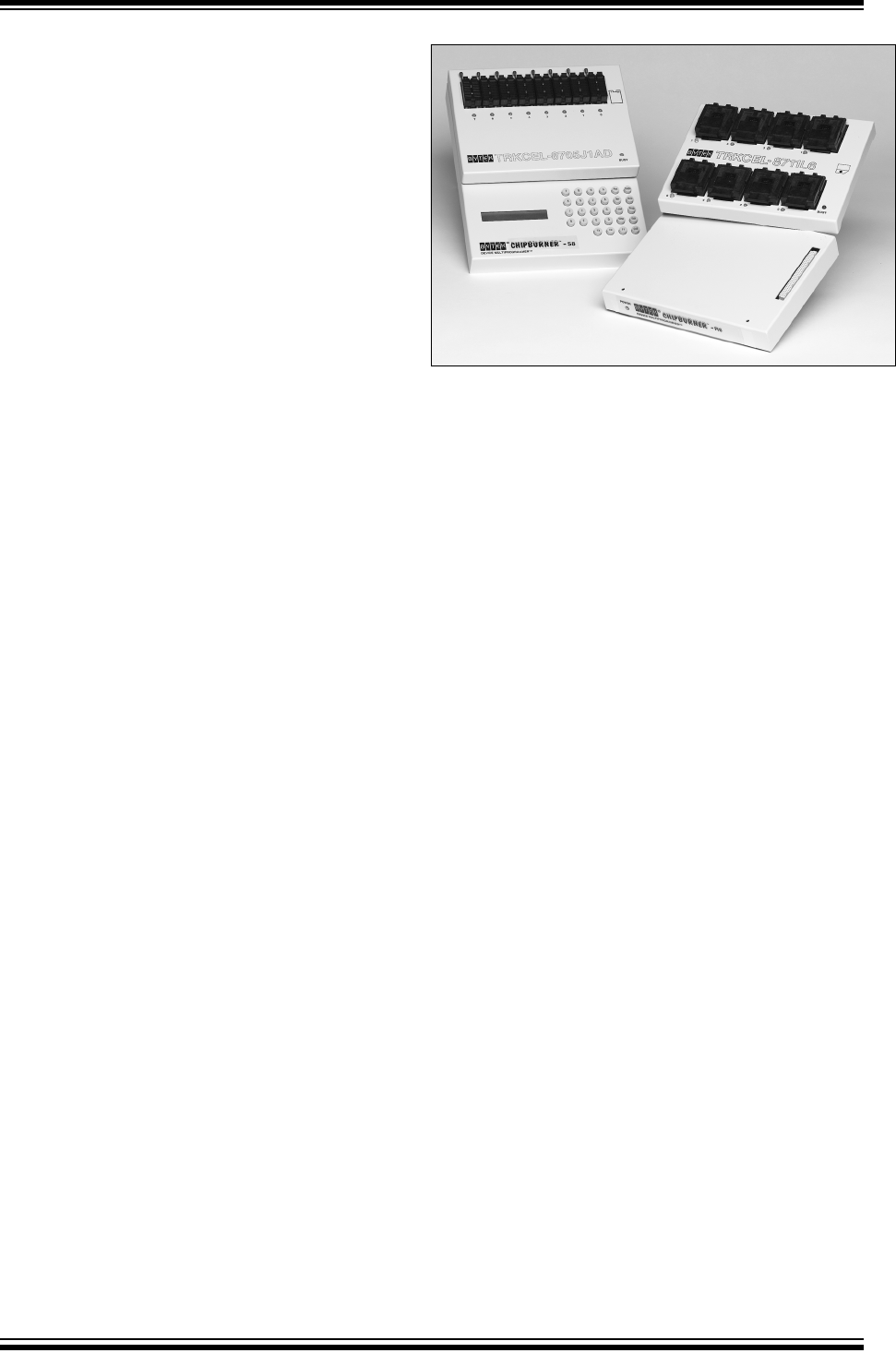

The ChipBurner-Gang 8 is the ideal solution to bring your
costly outsourcing of volume programming in house to
meet today's bottom line. The ChipBurner-16 allows you to
program up to sixteen devices at one time. The capability
to produce hundreds of devices in an hour makes it a truly
production oriented system at an affordable price.
Outsourcing volume programming is no longer cost-
justifiable and with the ChipBurner-16 there are no setup
fees and turnaround time is immediate to meet your needs
and schedules. Serialization and unique label IDs for each
device being programmed is supported. The ChipBurner-
Gang 8 features gang and set support for virtually any
EPROM, EEPROM, FLASH, or PICmicro
®
microcontroller
in any package with an unparalleled high- speed data
download of 230.4 Kbytes per second.
Two low-cost ChipBurner-Gang 8 models are available to
fit your programming needs and budget: the ChipBurner-
S8 (Stand-alone) and the ChipBurner-R8 (Remote). The
advanced features of the ChipBurner-S8 for full volume
production not only operates when attached to a PC host,
but can also be equally operated as a fully self-contained
engineering or production desktop workstation. The
ChipBurner-S8 contains its own CPU and is, therefore,
completely portable. Its stand-alone capability allows
simple one-key-programming operation from a 30-key
integrated keyboard and a large 40-character Liquid
Crystal Display (LCD). The ChipBurner-R8 Remote model
is strictly PC-driven keeping your entry costs at a
minimum.
