Data sheet

DH-SMT/DK VD.KM.G2.02 © Danfoss 09/2007 1

WebAccess and its modules

for ECL Comfort 200 / 300

Application The WebAccess kit enables:

• Remote monitoring and control via Internet /

Intranet

• Configurable alarm settings and notification

of external recipients via e-mail / SMS.

• Data logging of sensor and reference

temperatures

The communication between the WebAccess

unit and the ECL Comfort controller is based on

the LonWorks® protocol.

The WebAccess unit with its remote control

and data log provides an easy access to the

ECL Comfort 200 / 300 controller by means of a

standard Internet browser.

It is possible to connect up to 4 ECL Comfort

controllers to each WebAccess unit. It is also

possible to connect up to 10 additional modules

such as heat meters via LON as well as water and

electrical meters with pulse output.

The WebAccess unit can be used for the ECL

Cards P16, C14, C30, C37, C55, C62, C66, C75, F11,

F66, and L10 in the ECL Comfort 200 / 300 series.

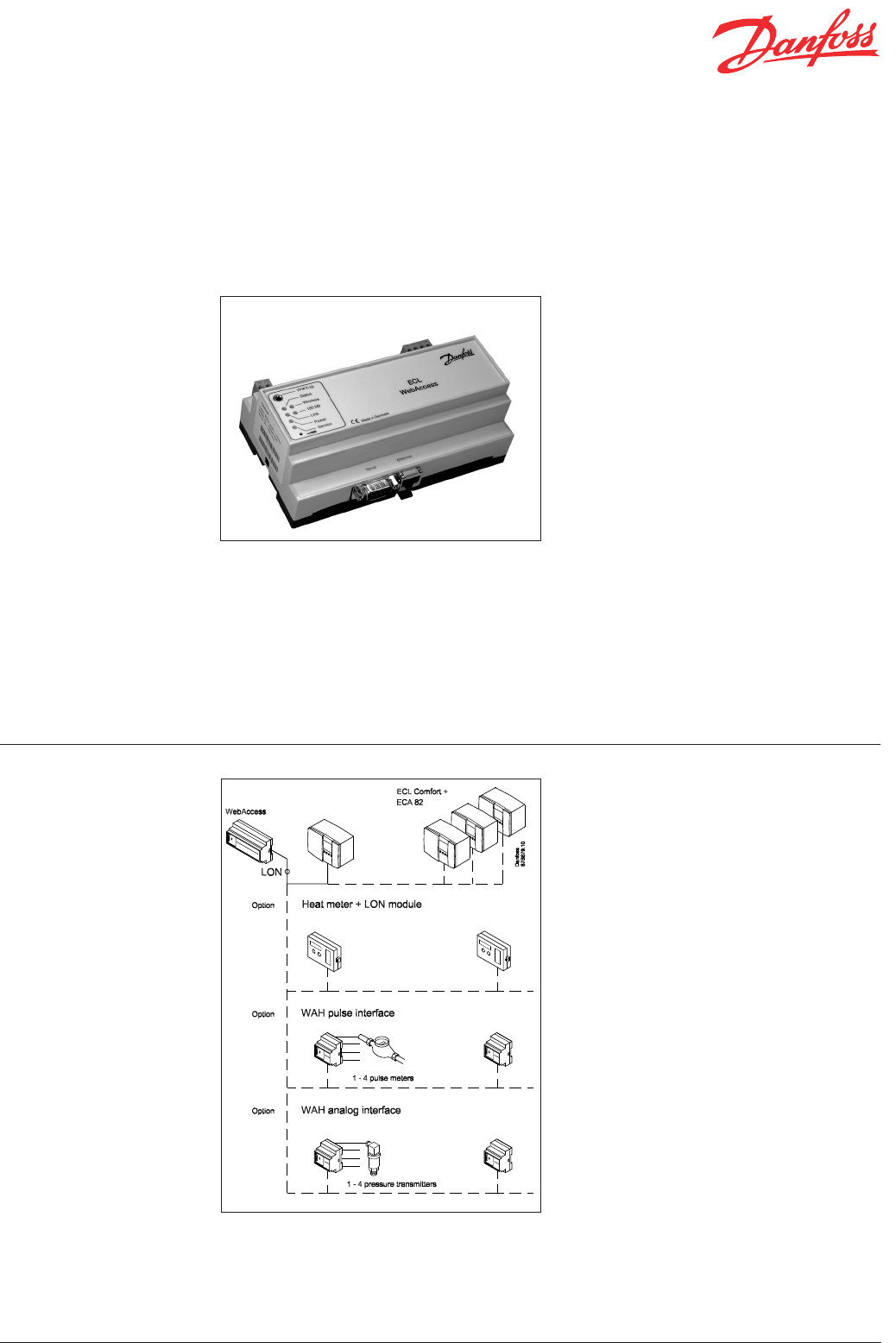

Operating principles The WebAccess unit is a web server for the ECL

Comfort 200 / 300 series.

By inserting the ECA 82 LON module in the ECL

Comfort 200 / 300 controller and connecting this

to the WebAccess unit, it is possible to monitor,

to log data and to control the ECL Comfort 200 /

300 controller.

All logged data are stored in the WebAccess unit.

All LON nodes / components are set up by means

of Plug and Play. No extra LON setup tools are

required.

No dedicated software is needed on the client’s

PC.

Summary of content (8 pages)

PAGE 1
Data sheet WebAccess and its modules for ECL Comfort 200 / 300 Application The WebAccess kit enables: • • • Remote monitoring and control via Internet / Intranet Configurable alarm settings and notification of external recipients via e-mail / SMS. Data logging of sensor and reference temperatures The communication between the WebAccess unit and the ECL Comfort controller is based on the LonWorks® protocol.
PAGE 2
Data sheet Ordering WebAccess and its modules Description Code No. WebAccess kit* 087B1173 * incl. 1 LON module and transformer Accessories Description Code No.
PAGE 3
Data sheet WebAccess and its modules Technical data Storage temperature Ambient temperature Weight Power supply Power consumption Grade of enclosure Mounting LON port cable length / type Ethernet cable length / type Protocol Modem cable length / type LON typology Data log memory Data log sample time / accuracy Log data EMC immunity EMC emission System requirements • • • -40 °C - 70 °C 0 - 50 °C 0.3 kg 8-24 V a.c. /12-30 V d.c. Max. 350 mA @ 24 V d.c. / 300 mA @ 24 V a.c. IP00 DIN rail 300 m max.
PAGE 4
Data sheet WebAccess and its modules Module WAH pulse interface Description The WAH pulse interface has 4 optically isolated digital inputs. The typical use of these inputs is to convert impulse signals to a value that can be stored in the WebAccess unit. Operation Technical data 1. TP / FT-10 LON connection: Free topology / twisted pair 2. Power supply: 8-24 V a.c. or 12-30 V d.c. 3. TP / FT-10 LON connection: Free topology / twisted pair 4. Power (power connection) 5. Service condition 6.
PAGE 5
Data sheet WebAccess and its modules Dimensions DH-SMT/DK VD.KM.G2.
PAGE 6
Data sheet WebAccess and its modules Module WAH analog interface Description The typical use of these inputs is to convert analog signals to a value that can be stored in the WebAccess unit. Operation Technical data The data type can be configured to bar, pH etc. 1. TP / FT-10 LON connection: Free topology / twisted pair 2. Power supply: 8-24 V a.c. or 12-30 V d.c. 3. TP / FT-10 LON connection: Free topology / twisted pair 4. Power (power connection) 5. Service condition 6.
PAGE 7
Data sheet WebAccess and its modules Dimensions DH-SMT/DK VD.KM.G2.
PAGE 8
Data sheet WebAccess and its modules Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
