2000 – Ultrasonic heat meterData sheet
DH-SMT/PL
VD.SH.A2.02 © Danfoss 11/20074

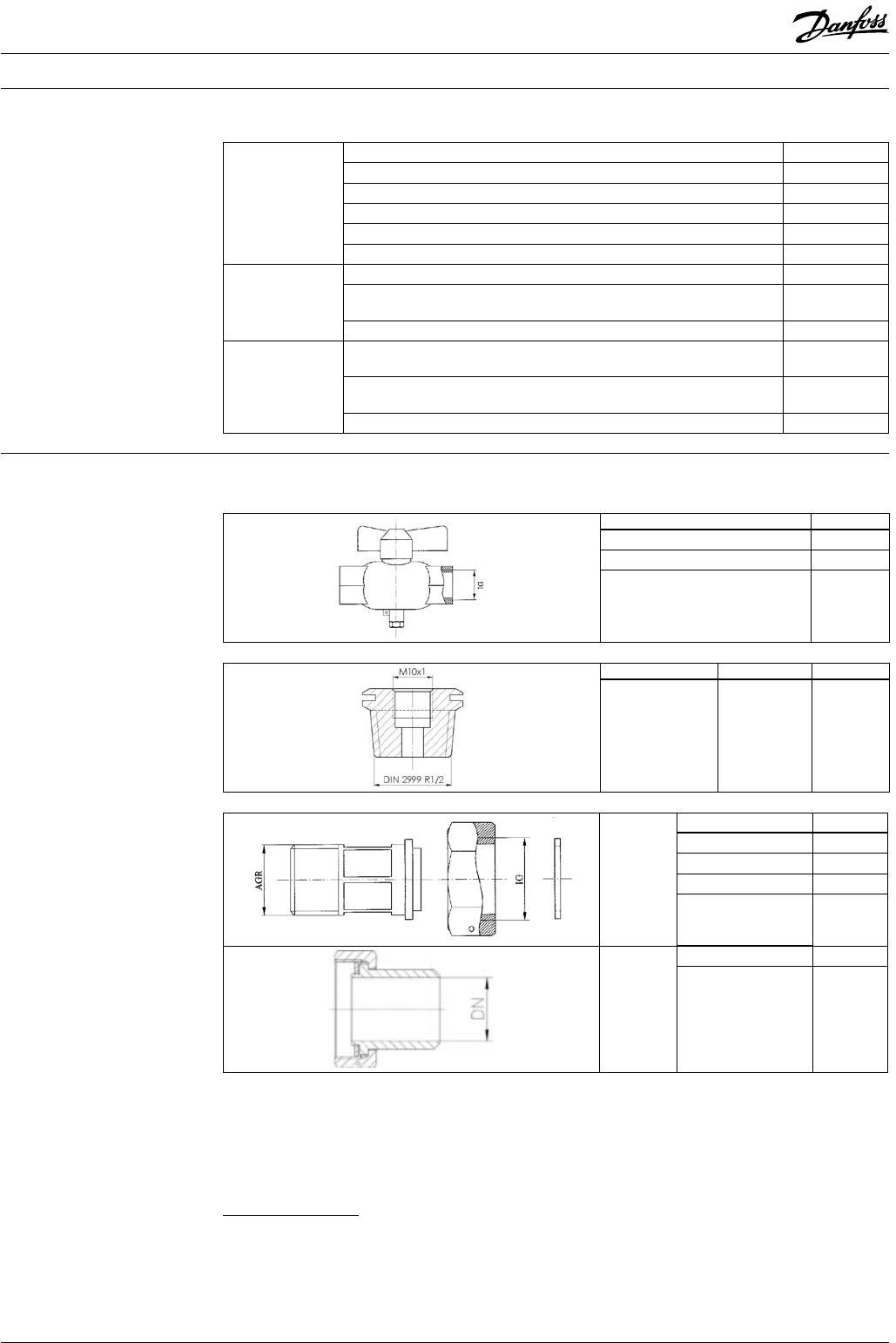

Ordering, continued Interface modules
Communication
Designation Code No.
M-Bus 542 000 01
RS 232 542 000 07
RS 232 with data cable 542 000 30
Radio-Module 542 000 17
Data cable for RS-232-Module 087H0121
Function
Module for 2 pulse inputs 542 000 03
Module for volume and energy pulse outputs (selectable out of 2
outputs)
542 000 02
Module for 2 pulse inputs + 1 pulse output 542 000 26
Supply voltage
Mains unit 230 V AC, power pack 3.6 V only for combination SONO 1500
CT with backup battery
542 000 04
Mains unit 24 V AC, power pack 3.6 V only for combination SONO 1500 CT
with backup battery
542 000 05
Battery 3.6V DC direct 3,6V for VMC 300 07 83
Accessories
Ball valves
Dimention (IG) Code No.
G ½’’ 087HY004
G ¾’’ 087HY005
G 1’’ 087HY006
Adapter for mounting
temperature sensors
Coupling thread Sensor thread Code No.
R½’’ M10 x 1 087HY003
Tailpieces
Threaded
Dimension (AGR x IG) Code No.
R ½” x G ¾” 803 014
R ¾” x G 1” 803 016
R 1” x G 1¼” 803 018
R 1½” x G 2” 803 022
Weld-on
DN 25 x G 1¼” 816 263
DN 40 x G 2” 816 264
Software
The HYDRO-SET parameterization software
based on the M-Bus is a convenient tool for
handling the calculator.
The HYDRO-SET software is available on web site
www.hydrometer.de.
It runs on Windows 2000/XP and is used for:
- commissioning,
- reading out measured values,
- printing out heat meter logs,
- heat meter configuration.
