Specifications

8
VMBMA502
2.2 DHP-H Opti Pro
Dimensions and connections
The brine pipes can be connected on either the left or right-hand
sides of the heat pump.

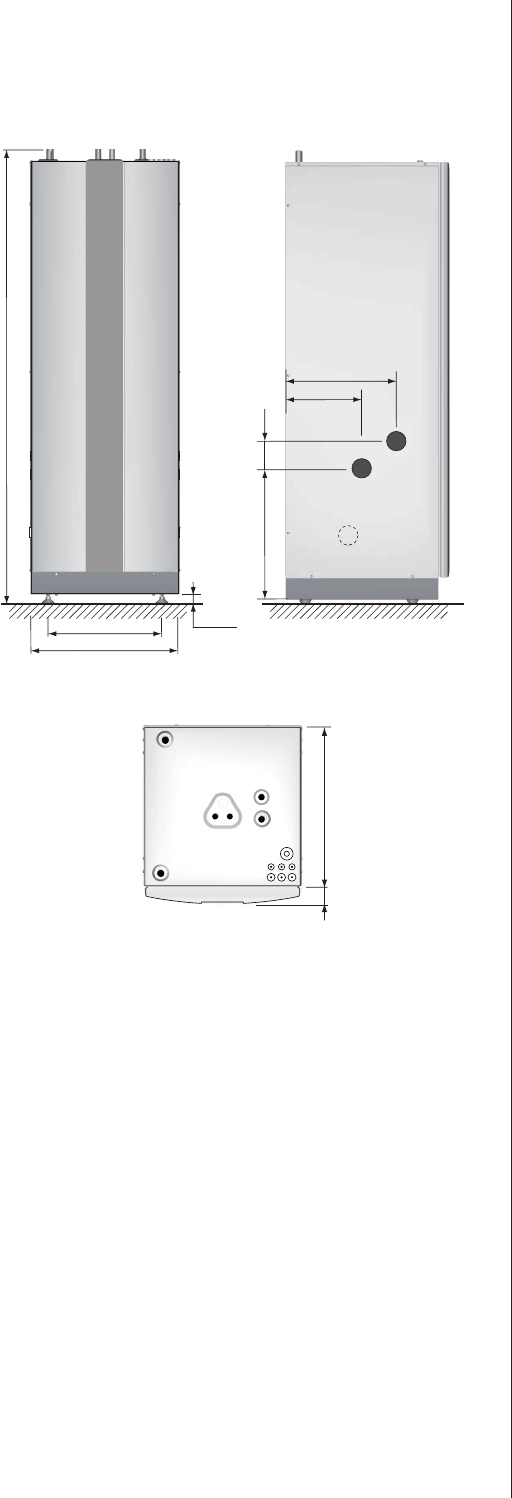

DHP-H, DHP-H Opti Pro and connections.Figure 6:
Position Name
1 Brine in, 28 Cu
2 Brine out, 28 Cu
3 Heating system supply line, 22 Cu: 4-10 kW, 28 Cu: 12-16 kW
4 Heating system return line, 22 Cu: 4-10 kW, 28 Cu: 12-16 kW
5 Expansion line, 22 Cu
6 Lifting point
7 Hot water line, 22 Cu or stainless steel
8 Cold water line, 22 Cu or stainless steel
9 Lead-in for supply, sensor and communication cables
10 Safety valve for temperature and pressure (only applies to certain
markets)
110
1845 (±10)
455
596
528
300
440
40±10
1
2
610
80
4
78
6
5
10
9
3
