Specifications

10
VMBMA502
2.3 DHP-C
Dimensions and connections
The brine pipes can be connected on either the left or right-hand
sides of the heat pump.

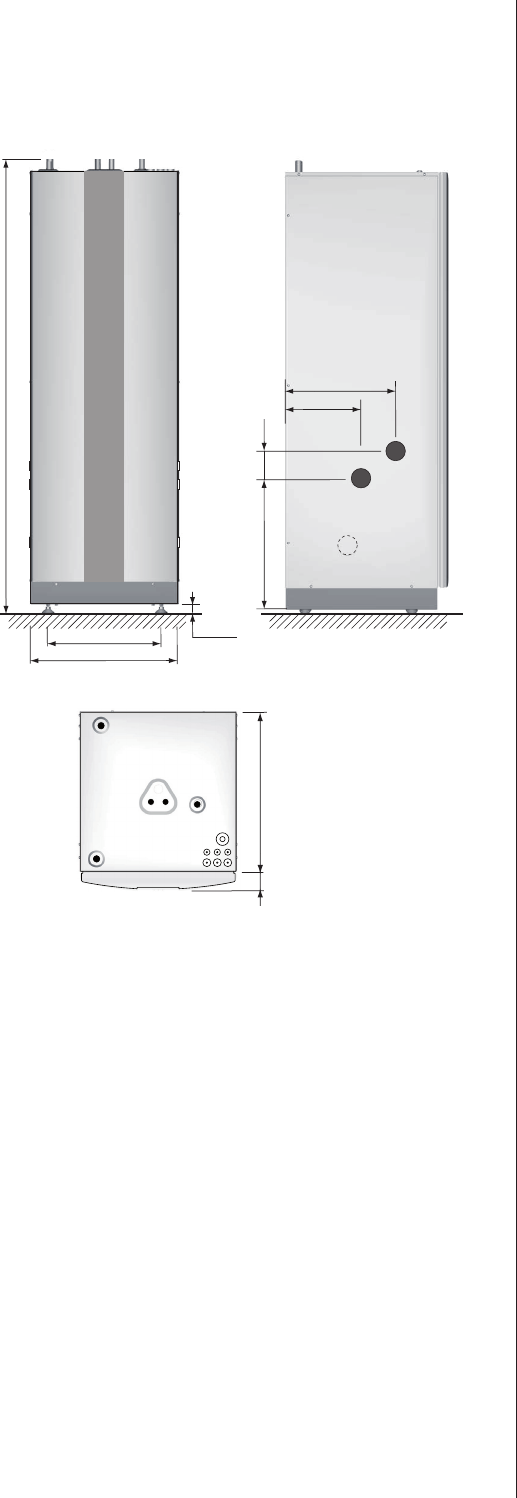

DHP-C, Dimensions and connections.Figure 8:
Position Name
1 Brine in, 28 Cu
2 Brine out, 28 Cu
3 Supply line heating system, 22 Cu
4 Return line heating system, 22 Cu
5 Expansion line, 22 Cu
6 Lifting point
7 Hot water line, 22 Cu or stainless steel
8 Cold water line, 22 Cu or stainless steel
9 Lead-in for supply, sensor and communication cables
110
1845 (±10)
455
596
528
300
440
40±10
2
1
610
80
4
78
6
5
9
3
