Operating instructions

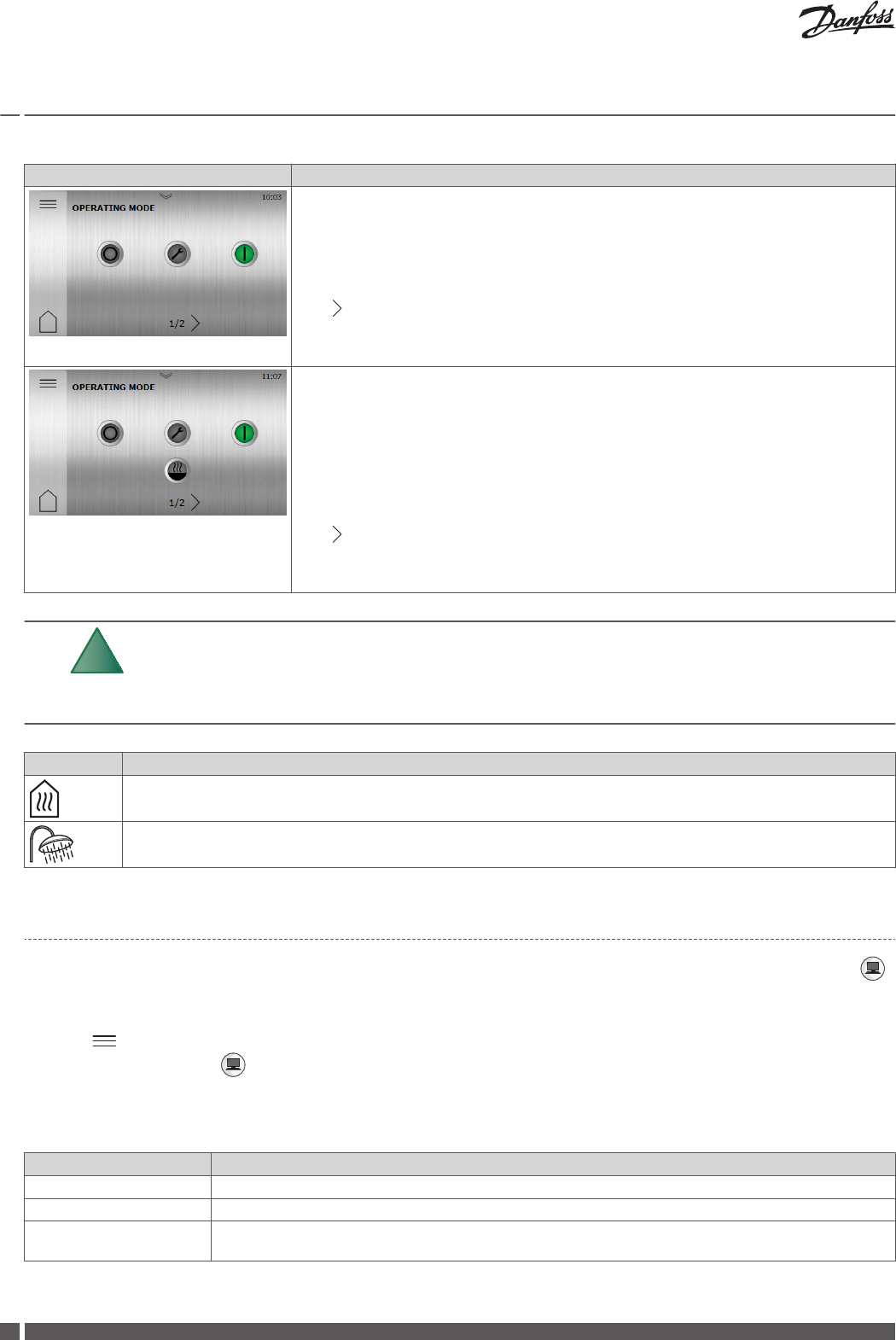

Symbol Description
Operating mode On. All activated functions are on.
In this operating mode, functions enabled in Settings can be switched activated or deactiva-
ted.
Press to go to page 2 where functions can be activated/deactivated.
See the example in the table below.
Operating mode On. All activated functions are on.
In this operating mode, functions enabled in Settings can be switched activated or deactiva-
ted.
Auxiliary heater enabled but not activated.
Press
to go to page 2 where functions can be activated/deactivated.
See the example in the table below.
N
The list below shows examples of selected functions on page 2 in Op-
erating mode.
Functions not activated from factory must be enabled in Settings be-
fore they can be activated and used.
Symbol Description
Operating mode Heat production. Space heating is permitted.
Operating mode Hot tap water. Hot tap water production is permitted.
7.4 System information
Check applicable operating data described in the tables below. The information can be found in the sub-menu System information
Select System information on the Menu screen:
1. Press
on the Start screen to open the Menu screen.
2.
Press System information
Operating data
Sensor
Explanation
Outdoor Shows the temperature on the outdoor sensor.
System supply line Shows the temperature on the system supply line.
Desired system supply
line
Shows the current system requirement value.
Commissioning DHP-M
