The following heating systems are only applicable with relay
module ECA 80

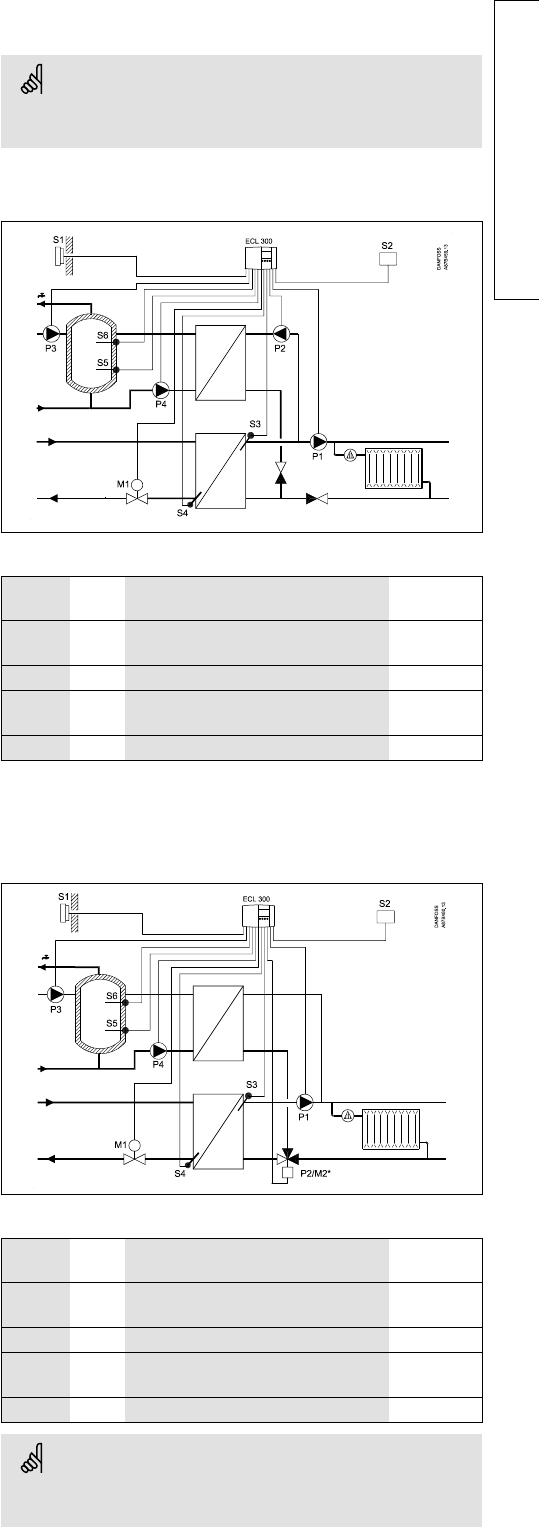

10.6 Indirectly connected system and secondarily
connected DHW storage charging system
System settings
Circuit Line Description Recomm.
setting
I 51
DHW charging pump /
changeover valve
OFF
I 52 Closed valve / normal operation OFF
I 53
Desired flow temperature at
DHW charging
OFF
I 90 P3 = DHW circulation pump ON
10.7 Indirectly connected system and secondarily
connected DHW storage charging system
(DHW priority)
System settings
Circuit Line Description Recomm.
setting
I 51
DHW charging pump /
changeover valve
ON
I 52 Closed valve / normal operation OFF
I 53
Desired flow temperature at
DHW charging
OFF
I 90 P3 = DHW circulation pump ON
P2/M2*
For the control of the actuator use either relay output P2 or triac
output M2, see section 12.
