User`s guide

The grey
side of the
ECL Card
Basic set-up
27b

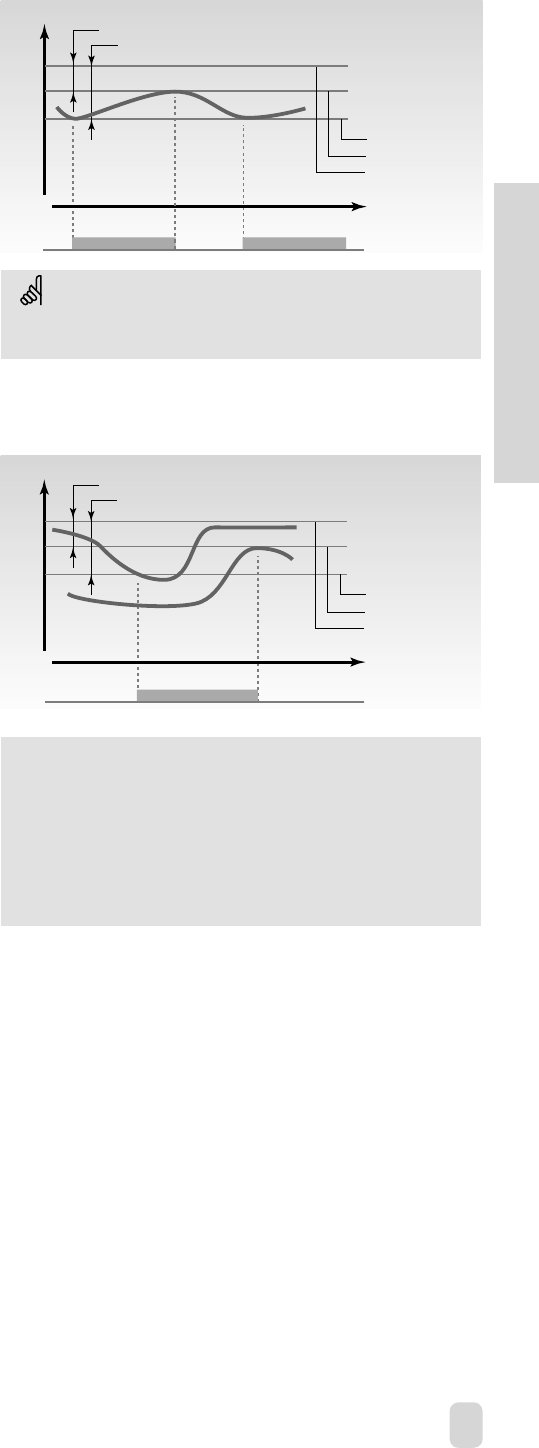

One sensor (S6)
Temp.
Cut-out difference - line 1
Cut-in difference - line 2
Cut-out
Time
P2 / P3
Charging
temperature
S6
Cut-in
If you only have one sensor installed (S6), this sensor will measure
the cut-out temperature as well as the cut-in temperature.
Two sensors (S5 + S6)
Temp.
Cut-out difference - line 1
Cut-in difference - line 2
Cut-in
Cut-out
Time
P2 / P3
Charging
temperature
S6
S5
The DHW temperature will vary between the cut-in and the cut-
out temperatures.
Example:
Cut-in difference: 15 K
Cut-out difference: 20 K
Variation: 5 K
27b
