Fitting the radiator thermostat (TRV)
B
Danfoss Heating Segment VI JPI102 06/2015

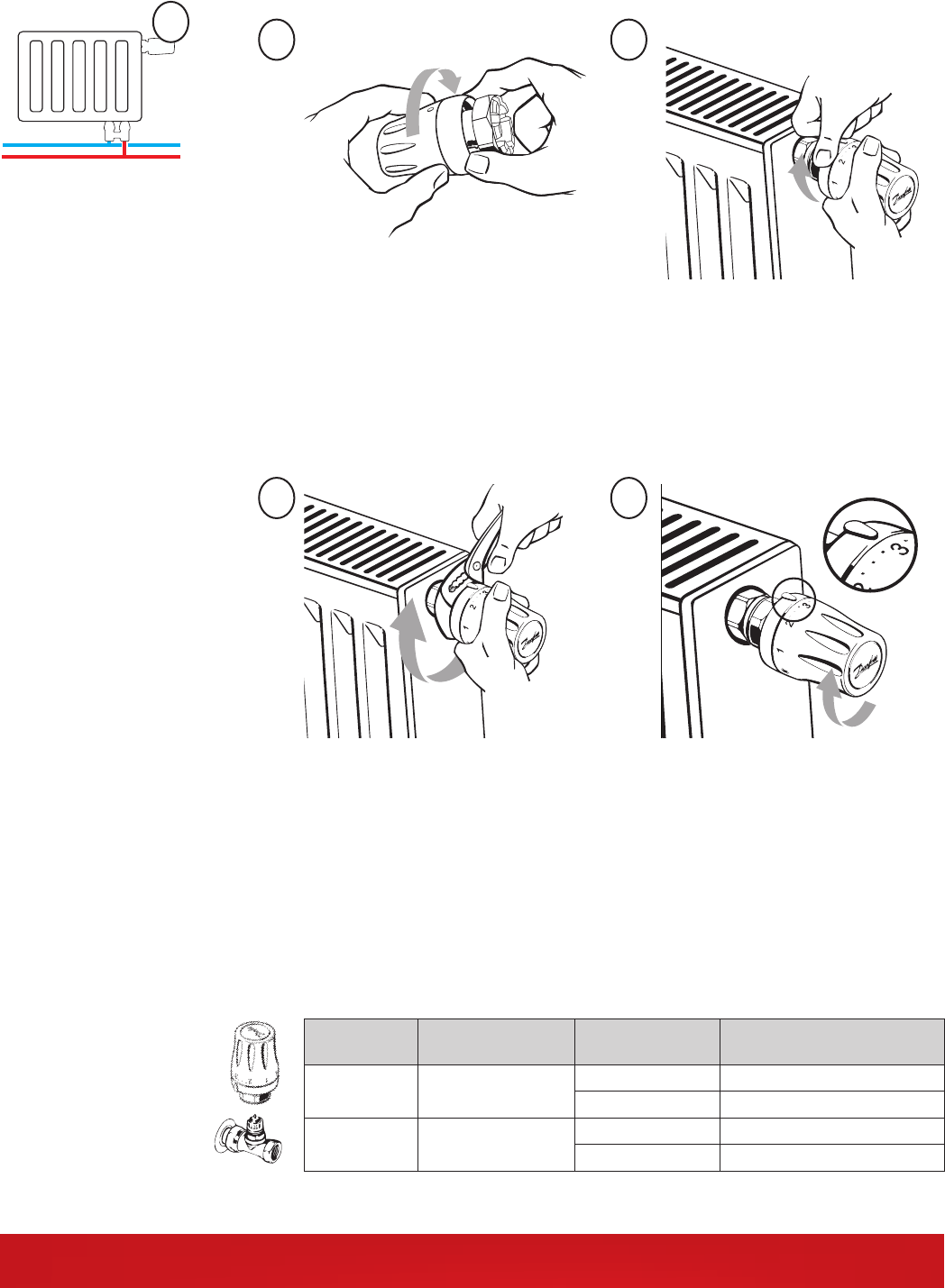

1 2
Whilst holding the sensor rmly on
the valve secure connection by turn-
ing the union nut clock-wise by hand.
Whilst still holding the sensor rmly
on the valve fully tighten the metal
union.
3 4
Remove cap from valve and turn
sensor to 5.
Make sure union nut is turned loosely
up towards the sensor body until it is
only slightly free of the lower part of
the sensor body.
Press the sensor rmly onto the valve.
Sensor horizontal: ensuring that the
scale pointer is at top.
Sensor vertical: ensuring that the
scale pointer is at the front.
Set desired room temperature.
Removing the Sensor:
Turn the sensor to max. position 5.
Turn union nut anti-clockwise to
release locking mechanism.
Radiator
Sensor (TRV)
Fits on: Valve Product Code
RTW- RA Danfoss
RLV-KS Angle 013G6502
RLV-KS Straight 013G6503
RTW-K
Honeywell, Heimeier,
Oventrop
RLV-KS Angle 013G6504
RLV-KS Straight 013G6505
HOME thermostat set:
