Specifications

Set point can be fixed via standard Daikin wired remote
controller. Remote ON/OFF can be achieved by an optional
adapter KRP4A51. No external DDC controller should be
connected. BRC1D52 is used to set the set point temperature
(connected to the EKEXMCB).
Caution: Do not connect the system to DIII-net devices
(Intelligent Controller, Intelligent Manager, DMS-IF,
BACnet Gateway …) This could result in a malfunction or
breakdown of the total system.
;GFLJGD KQKL=EK

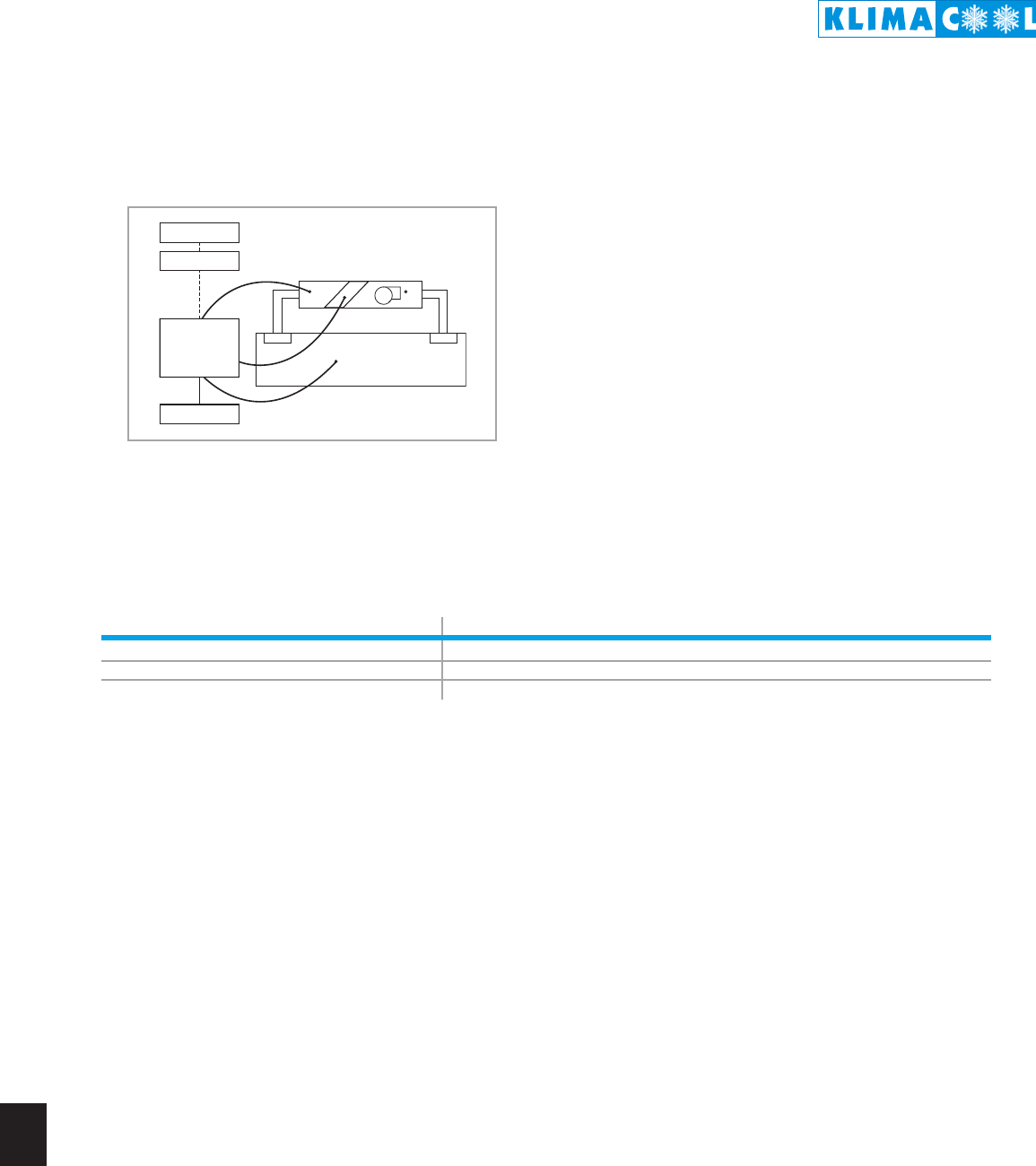

1. CONTROL OF AIR TEMPERATURE VIA DAIKIN CONTROL
GHLAGFK
Caution: Only use this system in combination with a field supplied air handling unit. Do not connect this system to other indoor units.
BRC1D52
KRP4A51
EKEXV 50, 63, 80, 100, 125, 140, 200, 250
EKEXMCB
Wired remote control
Wiring adapter for electrical appendices
Valve kits
Ts
TR
Te
AHU
Room
Td
Daikin
control box:
EKEXMCB
BRC1D52
KRP4A51
ON / OFF
