Outdoor Unit SiBE12-713
314 Removal Procedure

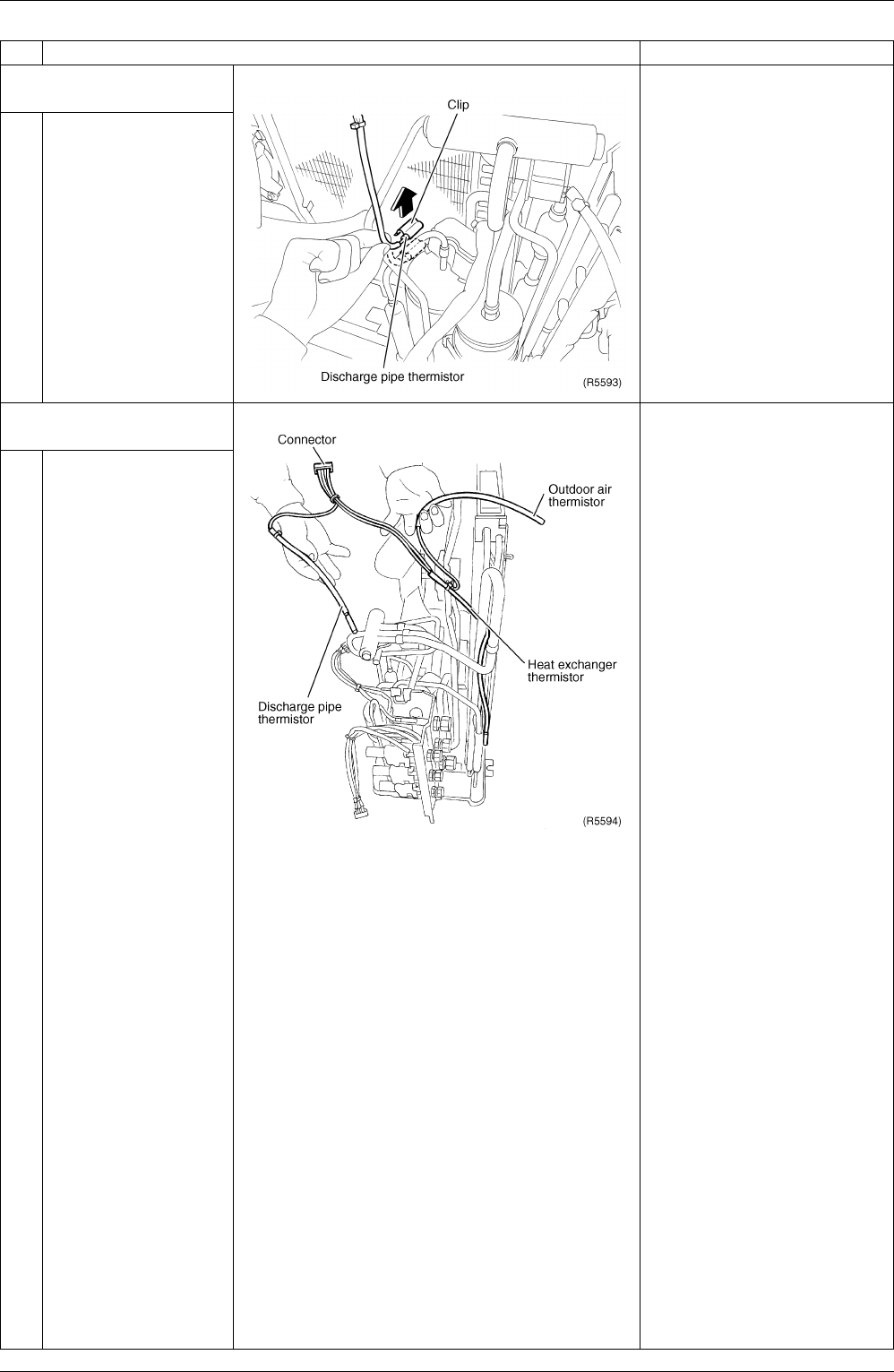

5. Remove the discharge
pipe thermistor
Meet the edge of the
thermistor and clip.
Be careful not to loose the
clip for the discharge pipe
thermistor.
1
Undo the clip and
remove the discharge
pipe thermistor.
6. Remove the assembly of
thermistor.
1
The figure shows the
arrangement of the
assembly of thermistor.
Step
Procedure Points
