Outdoor Unit SiBE12-713
302 Removal Procedure
4

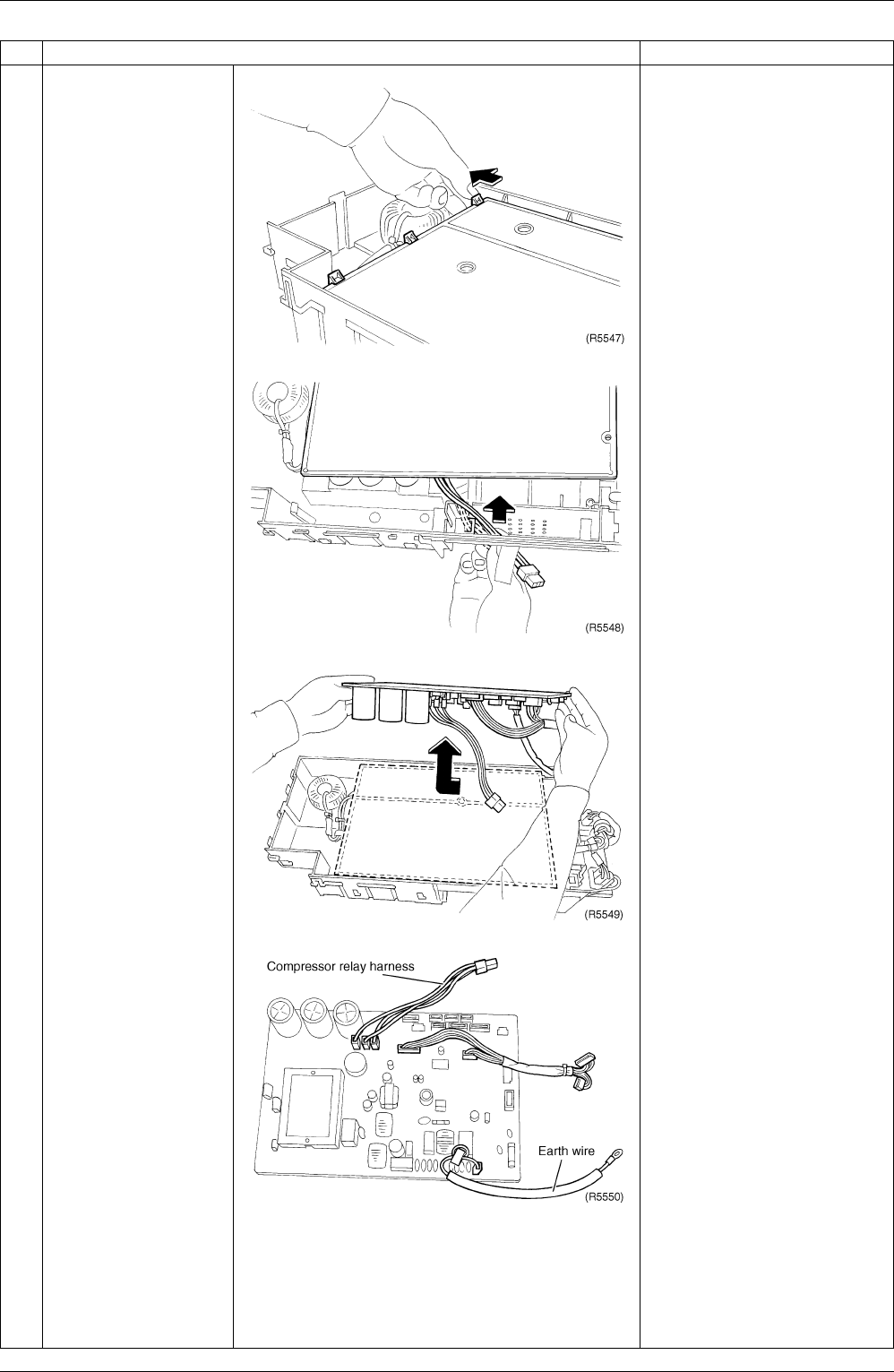

Undo the 3 hooks on
the reactor side and
slide the control PCB.
5
Undo the relay harness
for compressor from the
hook.
6
Lift up the control PCB
to remove.
In working, be careful not to
break the control PCB with
the excessive force because
the PCB and the radiation fin
are adhered to one another.
When assembling, make
sure to use the silicon
material.
Silicon material
Part No.: 1172698
7
Each wire harness.
Step
Procedure Points
