SiBE12-713 Outdoor Unit
Removal Procedure 289
3

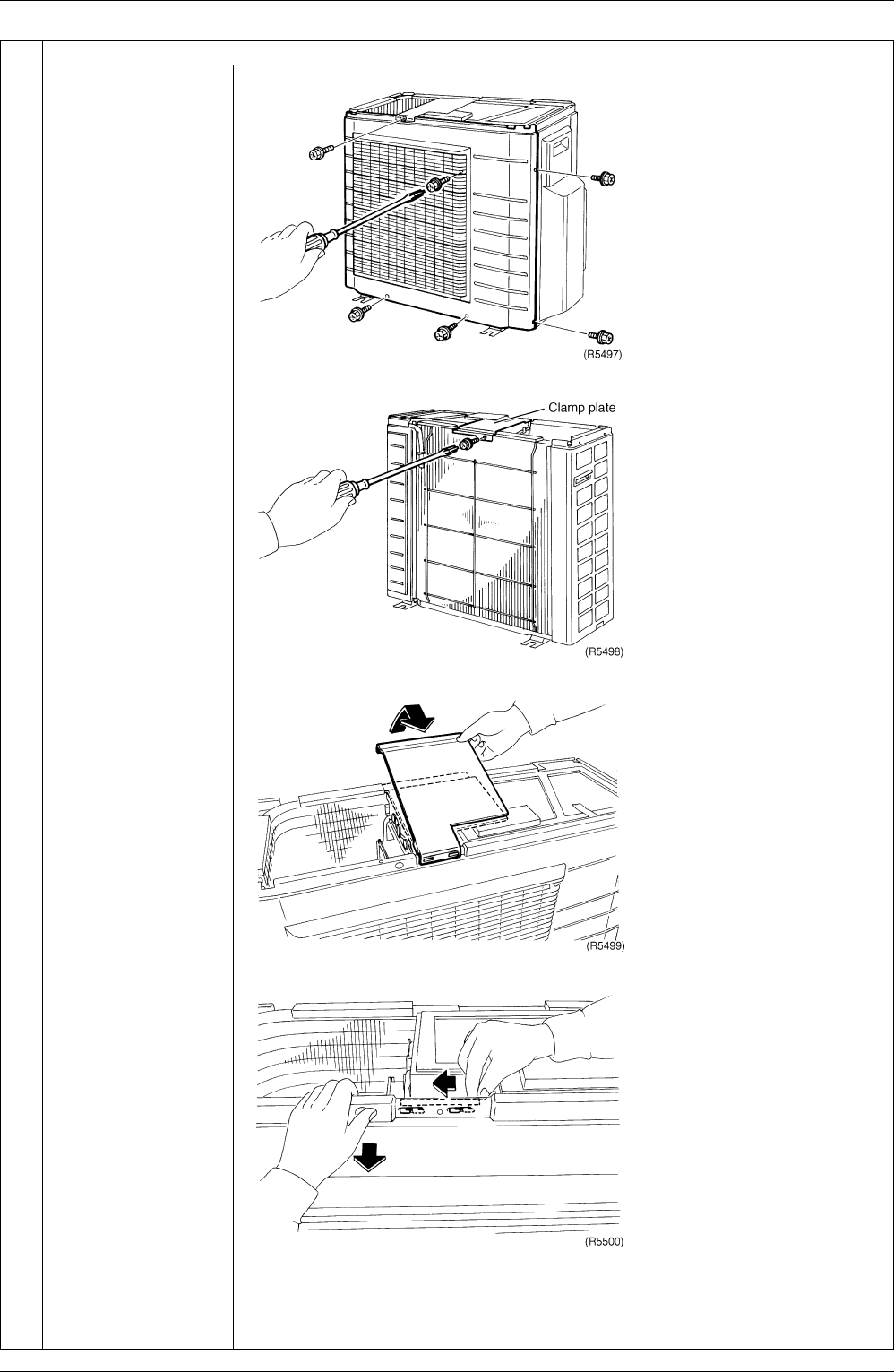

Loosen the 6 screws of
the front panel.
4
Loosen the 2 screws
(each 1 in front and
back) of the clamp
plate.
5
Slide the clamp plate to
the left to undo the
hooks and remove the
plate.
6
Undo the upper 2 hooks
to remove the front
panel.
Align the position of hole of
the upper hook to pull the
front panel out.
Step
Procedure Points
