SiBE12-713 Instruction
Operation Manual 205
2.2.12 Care and Cleaning
26
Care and Cleaning
CAUTION
Indoor unit, Outdoor unit and Remote controller
1. Wipe them with dry soft cloth.

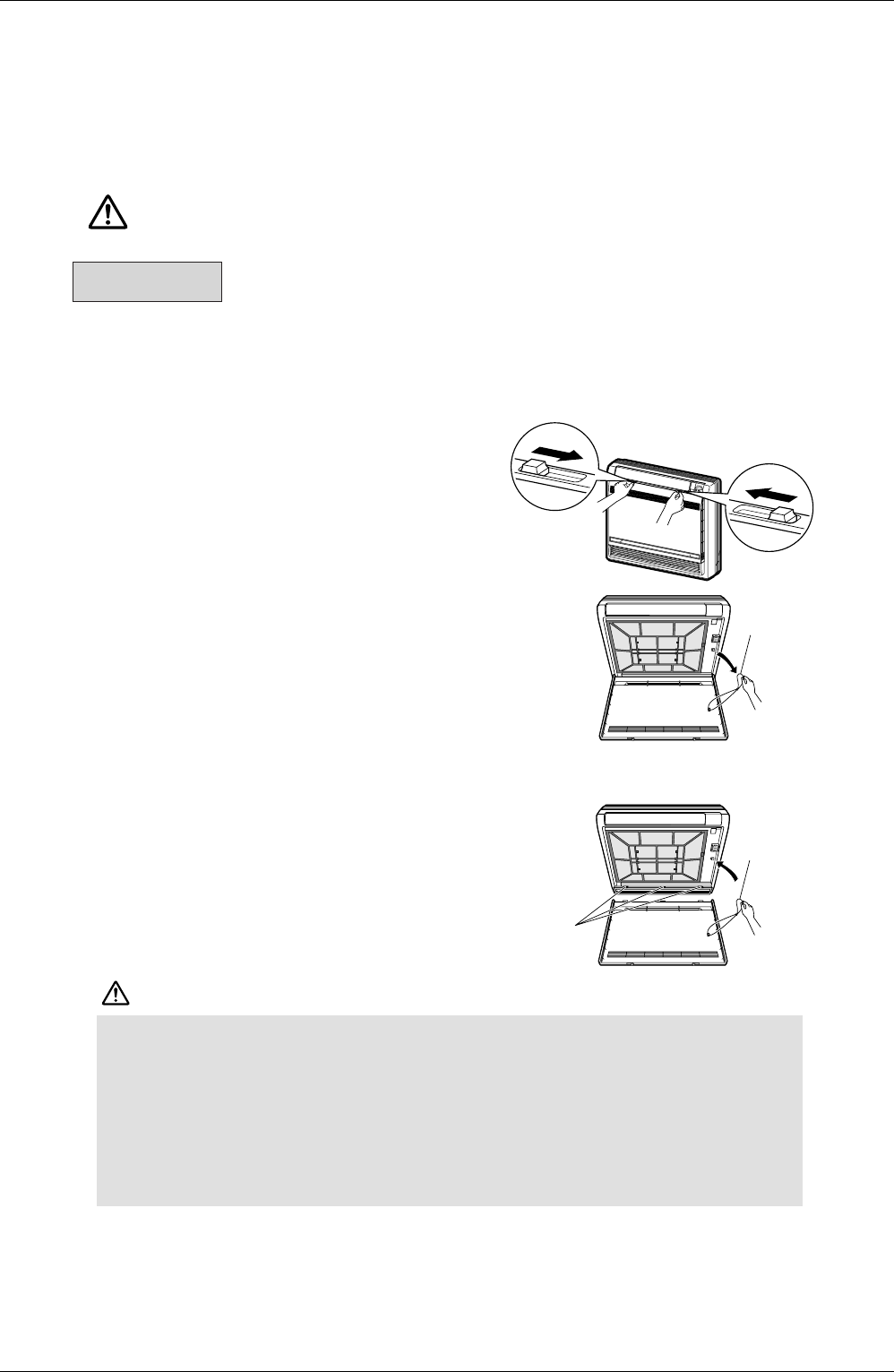

Front panel
1. Open the front panel.
• Slide the two stoppers on the left and right
sides inward until they click.
2. Remove the front panel.
• Remove the string.
• Allowing the front panel to fall forward will
enable you to remove it.
3. Clean the front panel.
• Wipe it with a soft cloth soaked in water.
• Only neutral detergent may be used.
• In case of washing the front panel with water,
dry it with cloth, dry it up in the shade after
washing.
4. Attach the front panel.
• Insert the front panel into the grooves of the
unit (3 places).
• Attach the string to the right, inner-side of the
front grille.
• Close the panel slowly.
CAUTION
Units
• Don’t touch the metal parts of the indoor unit. If you touch those parts, this may cause an
injury.
• When removing or attaching the front panel, use a robust and stable stool and watch your
steps carefully.
• When removing or attaching the front panel, support the panel securely with hand to prevent
it from falling.
• For cleaning, do not use hot water above 40˚C, benzine, gasoline, thinner, nor other volatile
oils, polishing compound, scrubbing brushes, nor other hand stuff.
• After cleaning, make sure that the front panel is securely fixed.
Before cleaning, be sure to stop the operation and
turn the breaker OFF.
String
Place front
panel in
grooves.
String
