Instruction SiBE12-713
174 Operation Manual
FLK(X)S 25/35/50/60 BA
Care and Cleaning
CAUTION
Indoor unit, Outdoor unit and Remote controller
1. Wipe them with dry soft cloth.

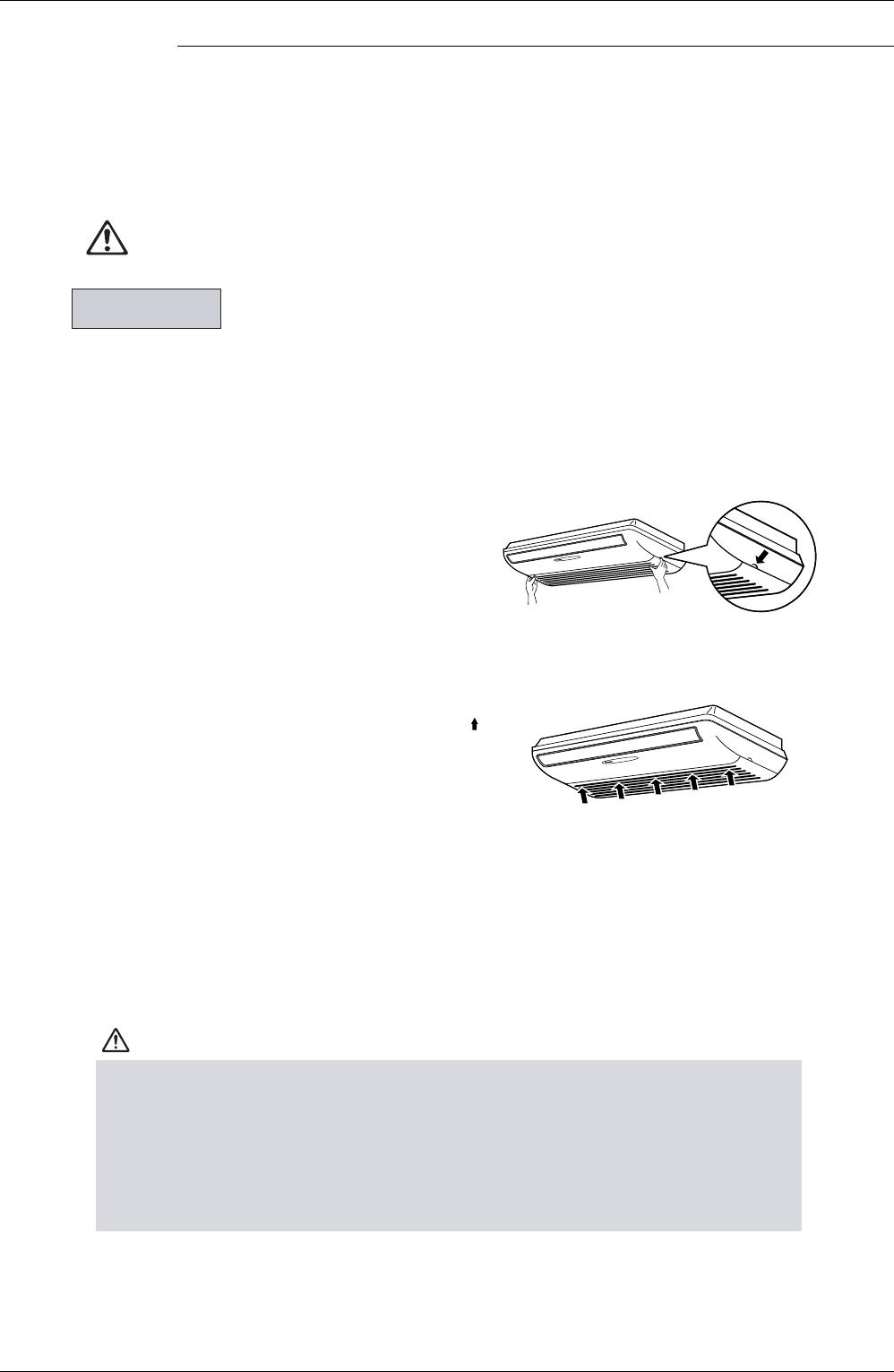

Front panel
1. Open the front panel.
• Hold the panel by the tabs on the two sides
and lift it unitl it stops.
2. Clean the front panel.
• Wipe it with a soft cloth soaked in water.
• Only neutral detergent may be used.
• In case of washing the panel with water, dry
it with cloth, dry it up in the shade after washing.
3. Close the front panel.
• Push the panel at the 5 points indicated by .
• Operation without air filters may result in trou-
bles as dust will accumulate inside the indoor
unit.
CAUTION
Units
• Don’t touch the metal parts of the indoor unit. If you touch those parts, this may cause an injury.
• When removing or attaching the front panel, use a robust and stable stool and watch your
steps carefully.
• When removing or attaching the front panel, support the panel securely with hand to prevent
it from falling.
• For cleaning, do not use hot water above 40°C, benzine, gasoline, thinner, nor other volatile
oils, polishing compound, scrubbing brushes, nor other hand stuff.
• After cleaning, make sure that the front panel is securely fixed.
Before cleaning, be sure to stop the operation and
turn the breaker OFF.
