Instruction SiBE12-713
162 Operation Manual

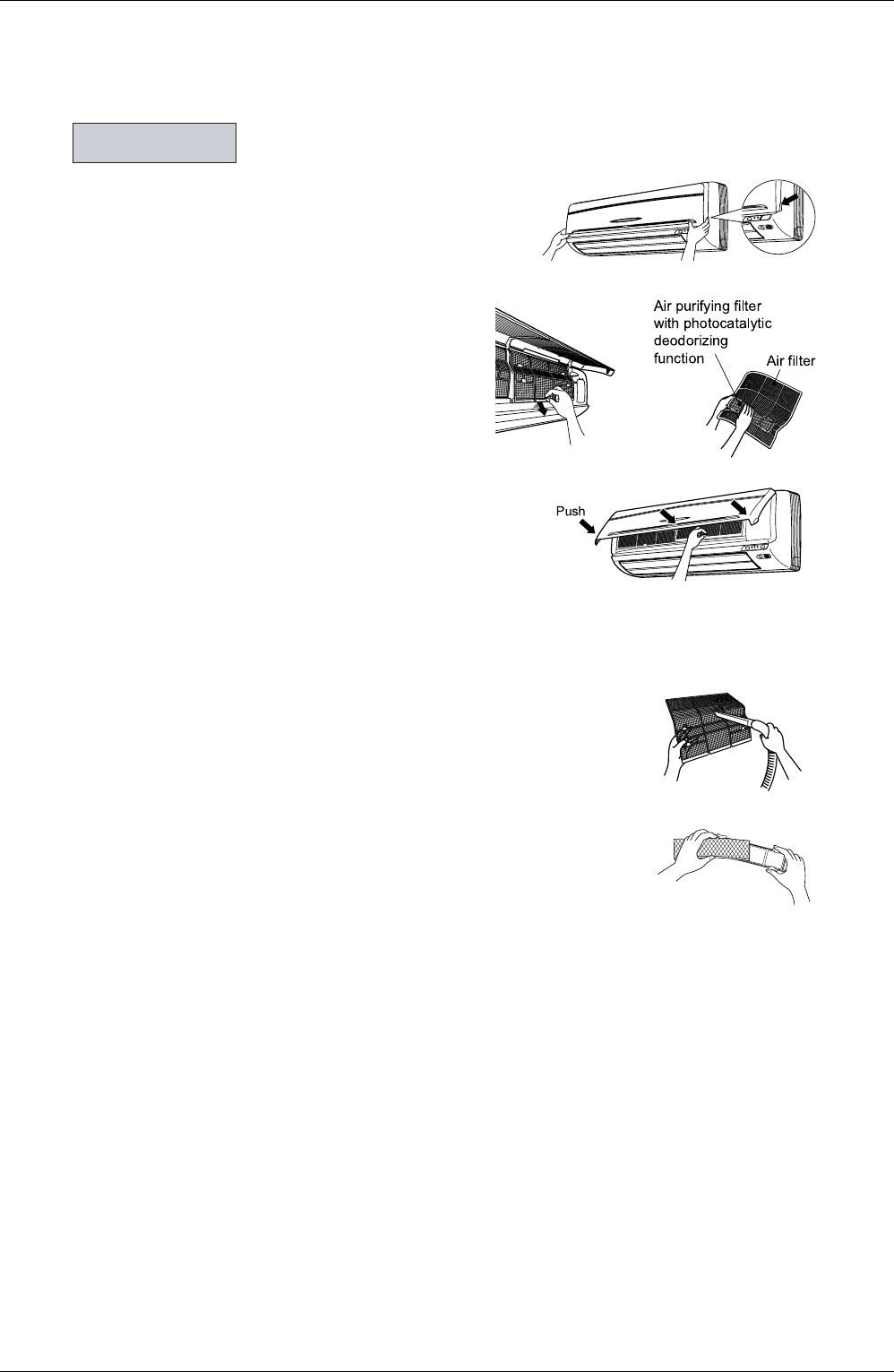

1. Open the front panel.
2. Pull out the air filters.
•
Push a little upwards the tab at the center of each air
filter, then pull it down.
3.
Take off the air purifying filter with
photocatalytic deodorizing function.
• Hold the recessed parts of the frame and unhook
the four claws.
4. Clean or replace each filter.
See figure.
5. Set the air filter and the air
purifying filter with photocalytic
deodorizing function as they were
and close the front panel.
•
Insert claws of the filters into slots of the front
panel. Close the front panel slowly and push the
panel at the 3 points. (1 on each side and 1 in the middle.)
Air Filter
1. Wash the air filters with water or clean them with
vacuum cleaner.
•
If the dust does not come off easily, wash them with neutral detergent
thinned with lukewarm water, then dry them up in the shade.
•
It is recommended to clean the air filters every two weeks.
Air purifying filter with photocatalytic
deodorizing function. (gray)
The Air purifying filter with photocatalytic deodorizing function can be
renewed by washing it with water once every 6 months. We recommend
replacing it once every 3 years.
[ Maintenance ]
1. Remove dust with a vacuum cleaner and wash lightly with water.
2.
If it is very dirty, soak it for 10 to 15 minutes in water mixed with a neutral cleaning agent.
3. Do not remove filter from frame when washing with water.
4. After washing, shake off remaining water and dry in the shade.
5.
Since the material is made out of paper, do not wring out the filter when removing water from it.
[ Replacement ]
1. Remove the tabs on the filter frame and replace with a new filter.
• Dispose of the old filter as flammable waste.
Filters
