Instruction SiBE12-713
132 Operation Manual

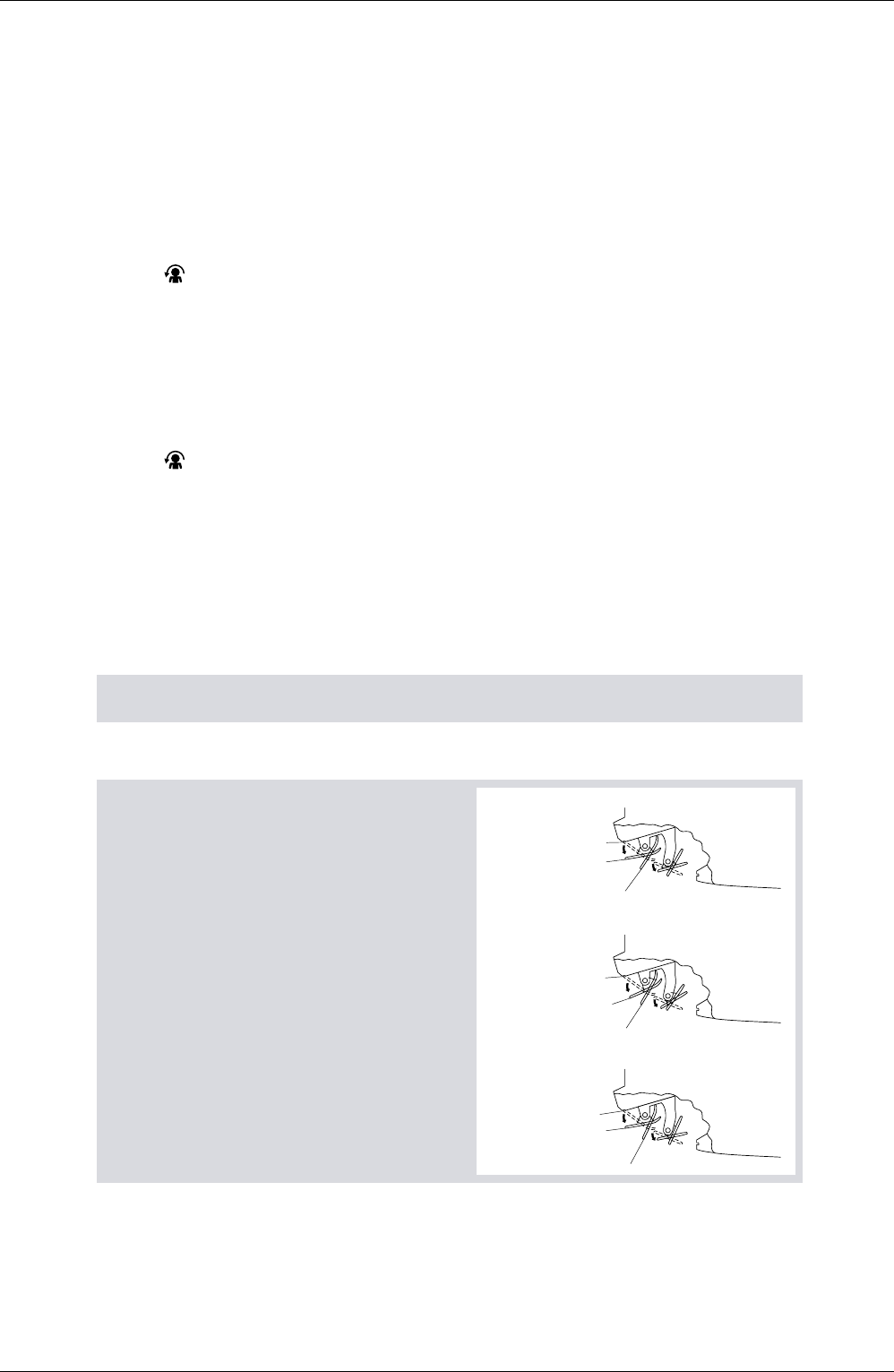

To start COMFORT AIRFLOW operation
3. Press “COMFORT AIRFLOW button”.
•
The flap position will change, preventing air from blowing directly on the occupants of the room.
• “ ” is displayed on the LCD.
〈COOL/DRY〉 The flap will go up.
〈HEAT〉 The flap will go down.
To cancel COMFORT AIRFLOW operation
4. Press “COMFORT AIRFLOW button” again.
• The flaps will return to the memory position from before COMFORT AIRFLOW mode.
• “ ” disappears from the LCD.
Notes on COMFORT AIRFLOW operation
Notes on flaps and louvers angles
•
POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.
Priority is given to POWERFUL operation.
•
When “
SWING button
” is selected, the flaps
swinging range depends on the operation mode.
(See the figure.
)
ATTENTION
•
Always use a remote controller to adjust the flaps
angle. If you attempt to move it forcibly with hand
when it is swinging, the mechanism may be broken.
•
Be careful when adjusting the louvers. Inside the
air outlet, a fan is rotating at a high speed.
5°
In DRY mode or COOL mode
In HEAT mode
When stop operation
Upper limit
Lower limit
10°
50°
30°
65°
When stop operation
Upper limit
Lower limit
In FAN mode
70°
When stop operation
Upper limit
Lower limit
