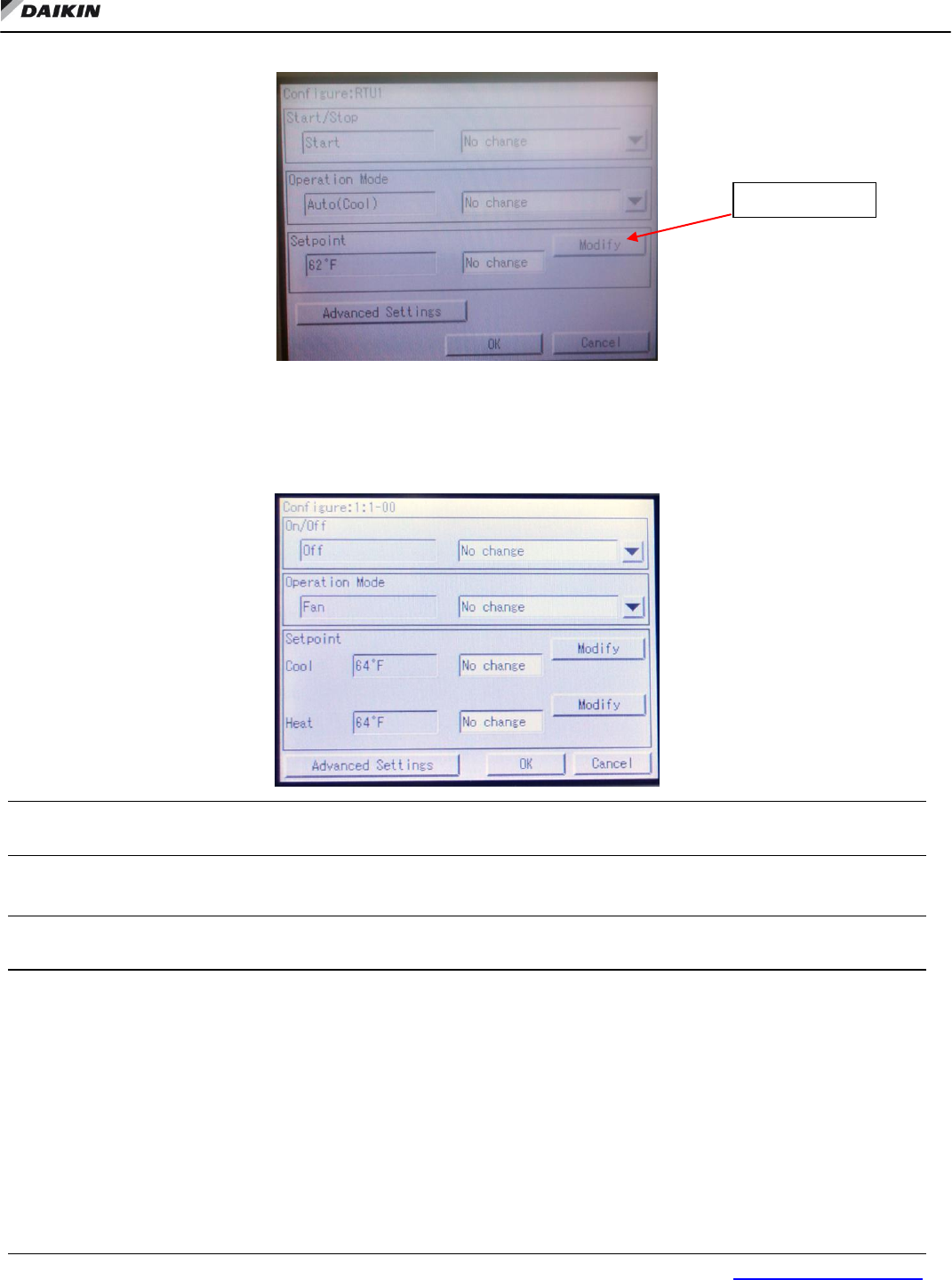

Figure 26, Configure Screen for MicroTech III Air Handling Unit Std Version
3. For ‘USw/Spt’ versions select Modify for either setpoint.
Figure 27, Configure Screen for MicroTech III Air Handling Unit US Version.
Note: For both versions, modifying the setpoint will adjust the discharge air setpoint for whatever mode the unit is currently
in.
Adjusting Fan Speed
Note: This only applies if the Supply Fan Capacity Control flag is set to ‘Speed/Net’ on the MicroTech III controller. Refer
to OM 920 for more information on this topic.
1. Highlight the MicroTech III Air Handling unit and select Configure.
Modify Button
