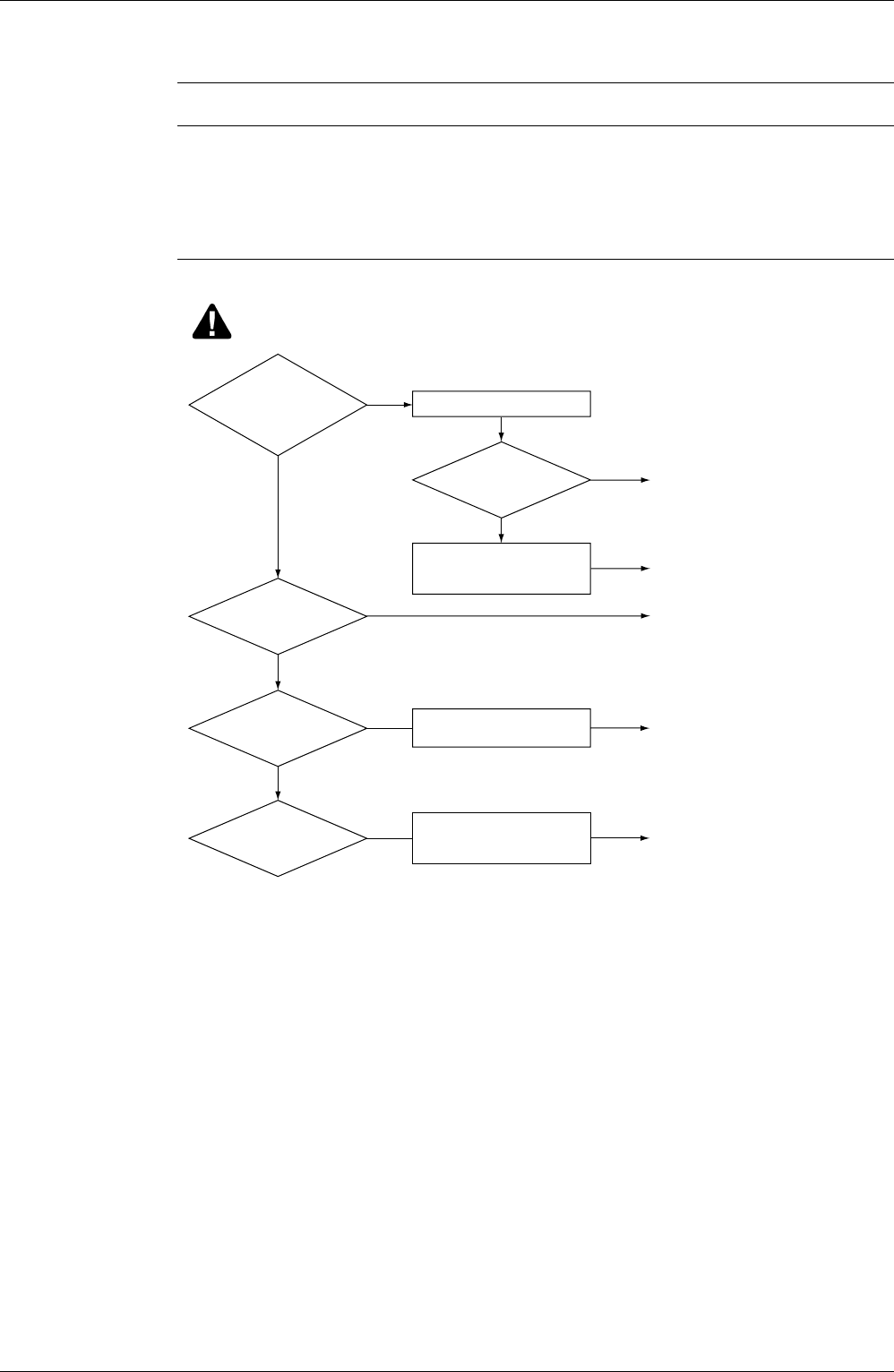

Si42-107 Troubleshooting Based on Equipment Condition
Troubleshooting 77
0 #=5,;;+
%":"+"
/,*
:"
! "(
! 6(
! 660
! 00
! 8(
4:";
Normal
Remove the source of humid
condition.
Cleaning of heat exchanger is
necessary.
Remove the source of oil mist or
dust.
Cleaning of air filter
Check fan motor
Is white fog
coming out from
the unit?
Is the heat
exchanger of indoor
unit soiled?
Is the site
dusty or with dense
oil mist?
NO
NO
NO
Is the airflow
rate too small?
NO
YES
YES
YES
YES
Is the
room temperature
higher than set value in
cooling
operation?
YES
Continue unit operation.
It may be necessary to
remove the source of
humid condition.
Dust or oil mists should
be removed.
Possible causes as follows
* Clogged air filter
* Malfunction of fan motor
(P1274)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
