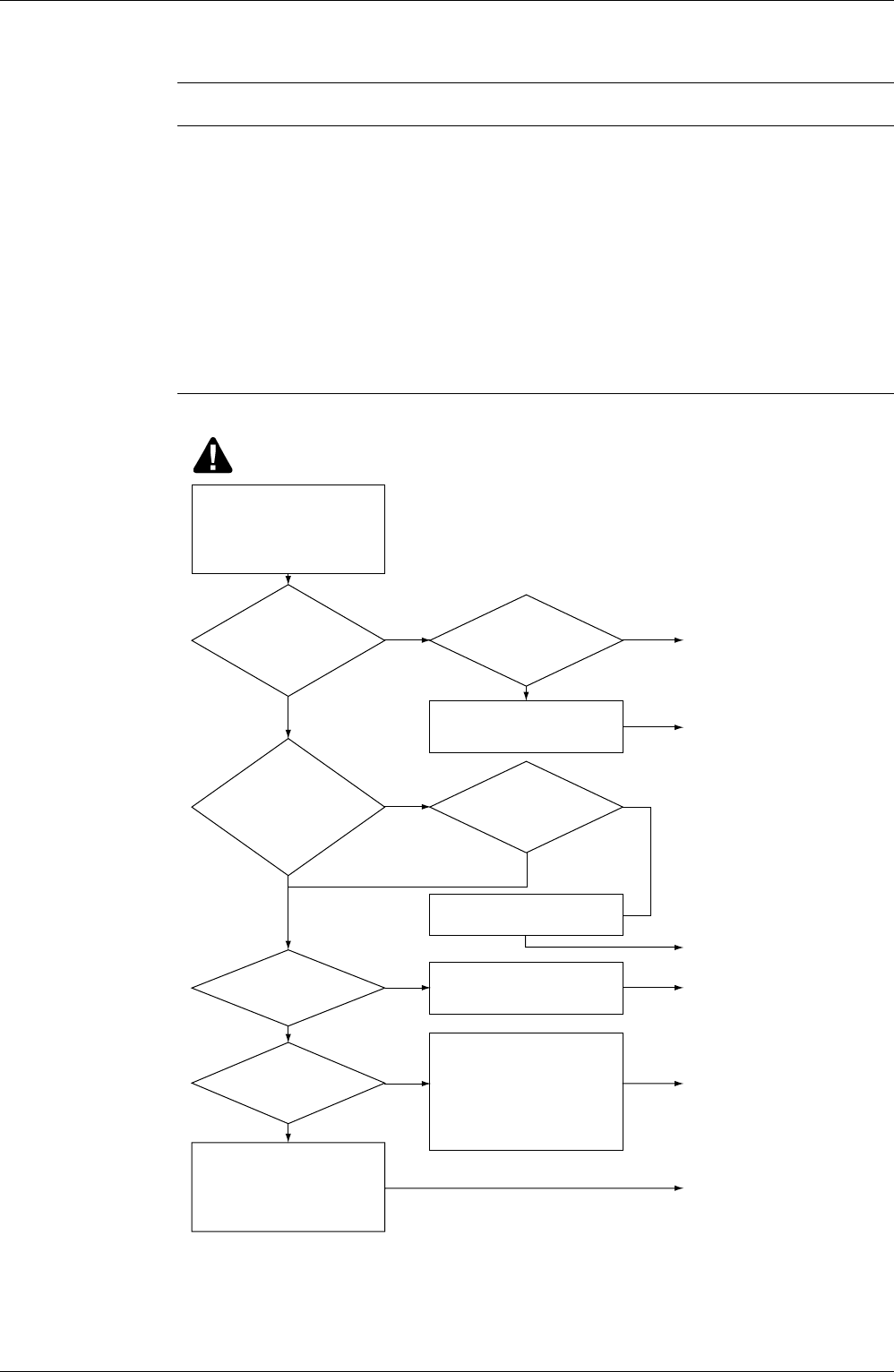

Troubleshooting Based on Equipment Condition Si42-107
76 Troubleshooting
/ #=5&:<"
%":"+"
/,*
:"
! %)(.
! (6(
! %(60
&0
606
;
8(
! (6((60
((
0
0
4:";
Measure the temperature of
suction air and discharge
air.
Temperature difference =
Suction air temp. –
Discharge air temp.
Possible causes as follows
* Incorrect selection of model
* Affection of direct sun
* Clogged air filter
* Soiled heat exchanger
* Malfunction of fan motor
Possible causes as follows
* Refrigerant overcharge
* Soiled heat exchanger
* Short circuit of discharge
air
* Disturbing item in air flow
* Malfunction of fan motor of
outdoor unit
Possible causes as follows
* Insufficient compression of
compressor
* Insufficient circulation of
refrigerant
* Faulty expansion valve
Gas shortage possibly
generates trouble.
Normal.
Additional unit installation
should be considered
After vacuum drying, charge
correct amount of refrigerant.
Check each section
Check each item
Check each item
Temperature
difference for cooling
should be between
8 and 18 ˚C.
Does
any frost
generate around
inlet port of indoor unit
heat exchanger or
outlet port of
capillary
tube?
Is the
operation current
less than specified
level?
Does indoor
unit discharge flow
rate down?
Is the
level of high
pressure higher than
normal level?
Does the
heat load increase
after installation
of the unit?
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
(P1273)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
