Si42-107 Troubleshooting Based on Equipment Condition
Troubleshooting 73
'&?:5
%":"+"
/,*
:"
! (
! (06(
4:";

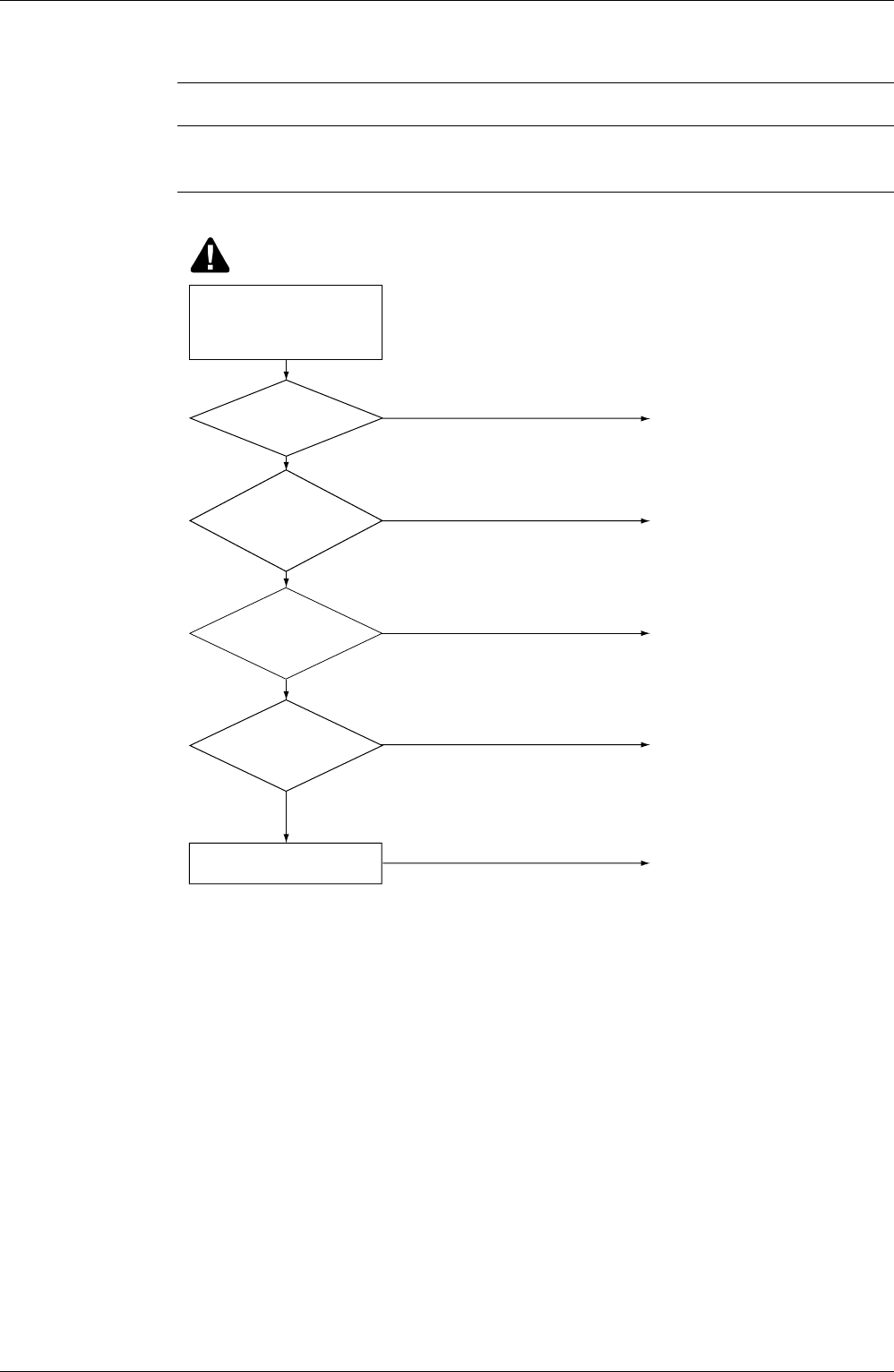

Make the following
temperature setting using
remote controller.
Cooling: Lowest setting
Possibly faulty electric
wiring or relay etc.
Normal.
Malfunction of remote controller
contact or thermostat
Malfunction or actuation of safty
device such as:
· Discharge pipe thermostat
· Thermostat switch for outdoor
fan motor.
(In case of R71~125FU)
Check electric wiring between
indoor and outdoor unit or relay
etc.
Does
equipment operate?
Is the
power supply
between terminal B-D
(or 3) from remote
controller?
Is there
any malfunction or
actuation of safty
devices?
Is the power
supply on MgS coil for
compressor.
YES
NO
YES
NO
NO
NO
Malfunction of MgS coil or MgS
contact.
Replace the MgS switch.
YES
YES
YES
(P1270)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
