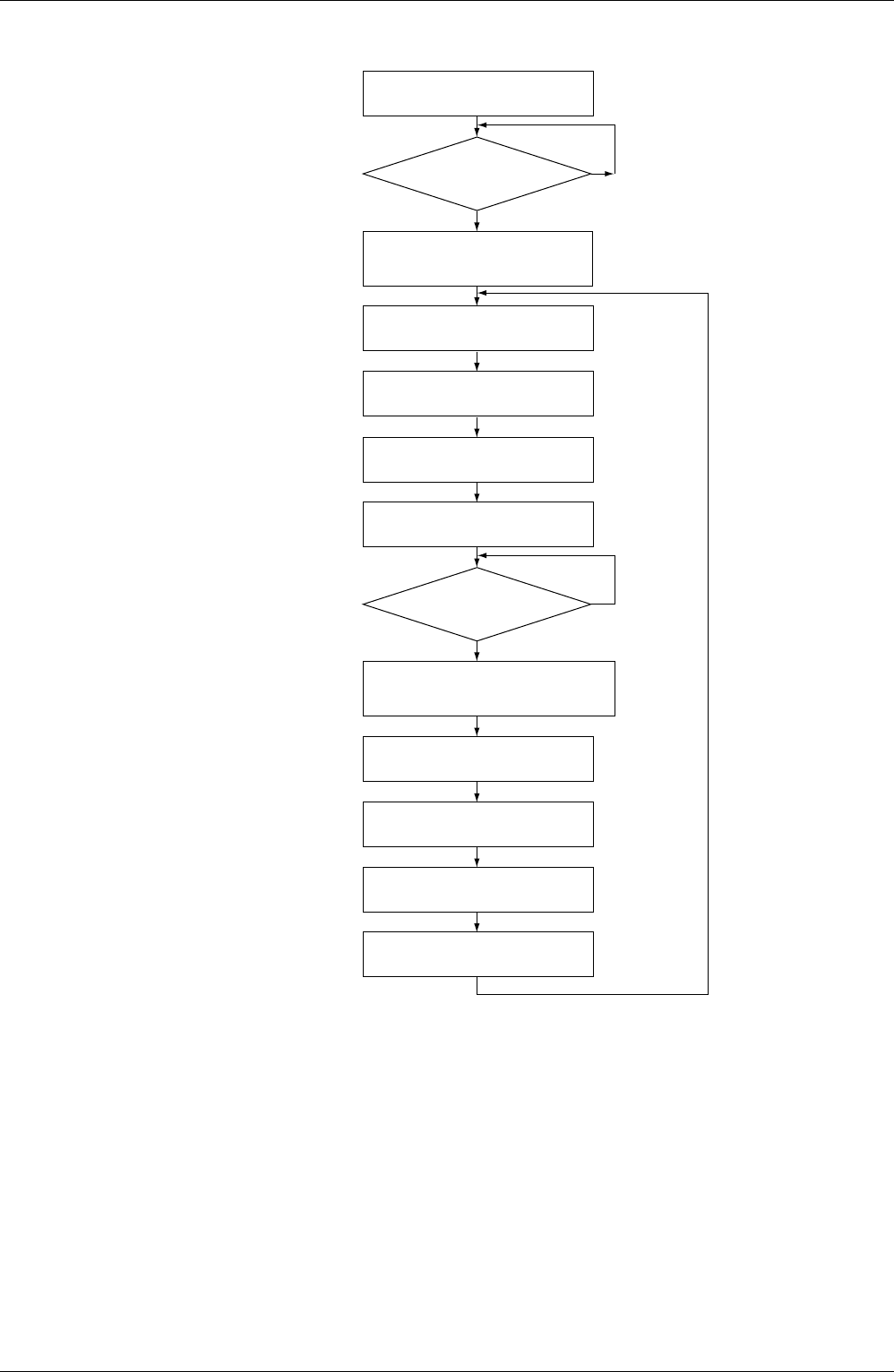

Si42-107 Operation Flow Chart
Functon and Operation 61
VW
F2C of indoor unit actuates.
Relay K2R, K3R, are OFF and
K2M and K1M are OFF also.
Fan and compressor are OFF.
F2C returns to normal condition.
Is safty
device in normal
condition.
YES
Power switch ON.
Thermostat
ON judgement.
Mgs K1M of outdoor unit is ON,
then compressor and outdoor fans
operates.
NO
Relay K1R of outdoor unit is ON.
Relay K2R, K3R of indoor
unit are ON.
Press Fan operation button.
Mgs K2M of indoor unit is ON,
and relay K2R, K4R are ON.
Indoor Fan operates.
Press cooling button.
Thermostat OFF
Unit does not
operate.
Thermostat ON
(P1264)
