Si42-107 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 259
4:";

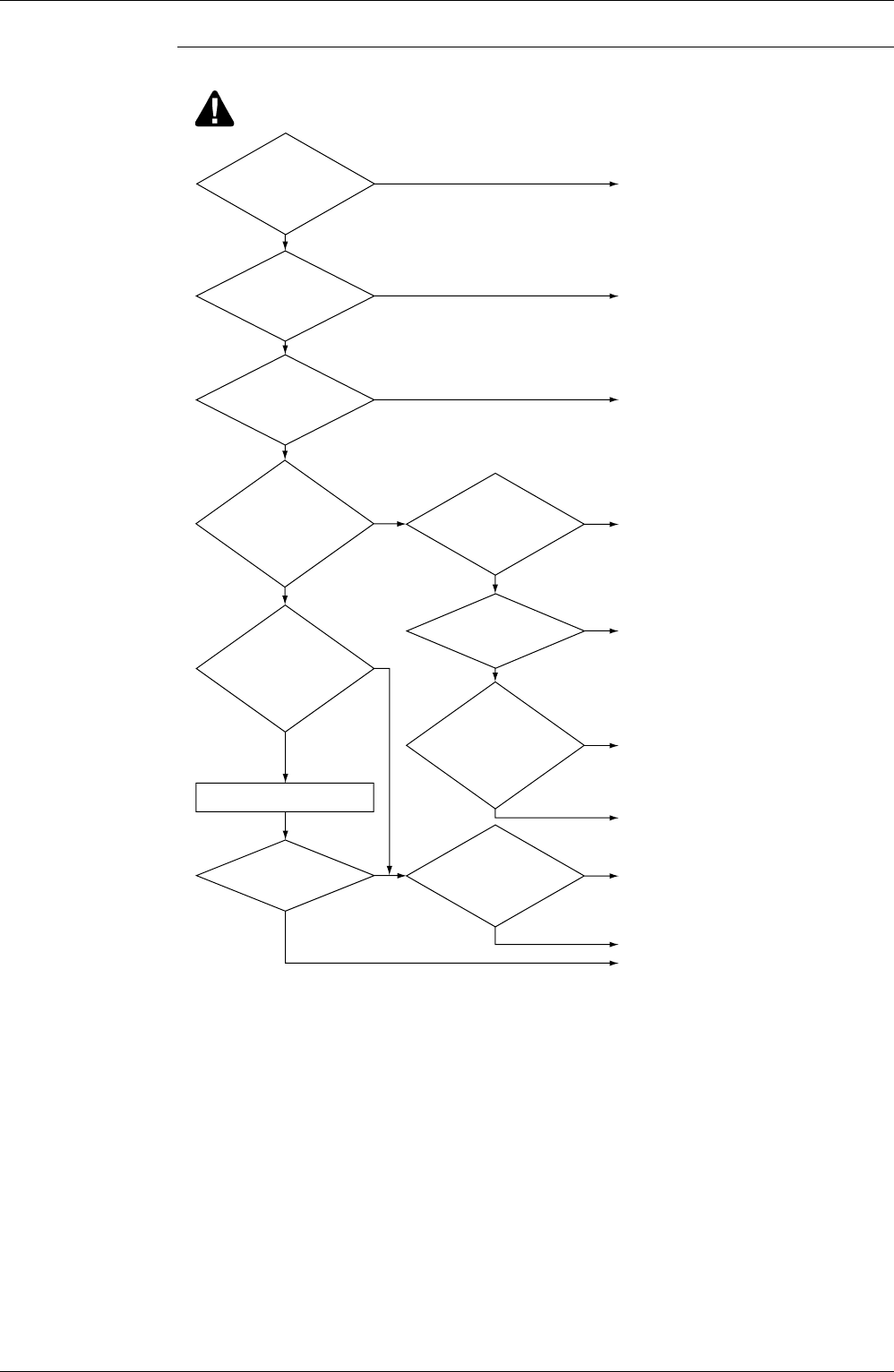

Is there
220-240 VAC
between No.1 and
No.3 of X2M on indoor and
outdoor unit (X1M for
RY140KUY1) ?
Is the
power supply
PC board correctly
connected?
YES
YES
YES
Is the
indoor-indoor
and indoor-outdoor
jumper correctly
connected?
Is the
indoor-indoor
and indoor-outdoor
jumper correctly
connected?
NO
NO
NO
NO
Is
the outdoor unit
using for Twin
system?
Is
the remote
controller connected
to more than
one indoor
unit?
NO
YES
Are the
microcomputer
normal montiors
(HAP) of all indoor unit
PC boards
blinking?
YES
Are the
transmission
normal montiors
(HBP) of all indoor unit
PC boards
blinking?
NO
Is the
setting of
Pair/Twin/Triple
setted
correctly?
YES
NO
YES
NO
YES
Operating normally?
YES
YES
NO
NO
Turn the power off once, then
back on, and restart operation.
Connect the remote controller
correctly.
Check setting "No. of Connected
Twin System Indoor Units" of indoor
unit. (Note1)
Set correctly
Connect correctly
Connect correctly
Replace the transformer.
Wiring could be incorrect; recheck.
Connect correctly.
Indoor unit PC board replacement
Operates normally
(P1390)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
