Si42-107 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 239
/0 %,<
5
""
,"
E0
E0E0
E0
&#,
,"
"
5
"
4
"
3
%":"
+"
'>!*5
+;
+"
,
6;
).
V;W
! ;
!
! E6;=
V6W
! GH
! '00000
4:";

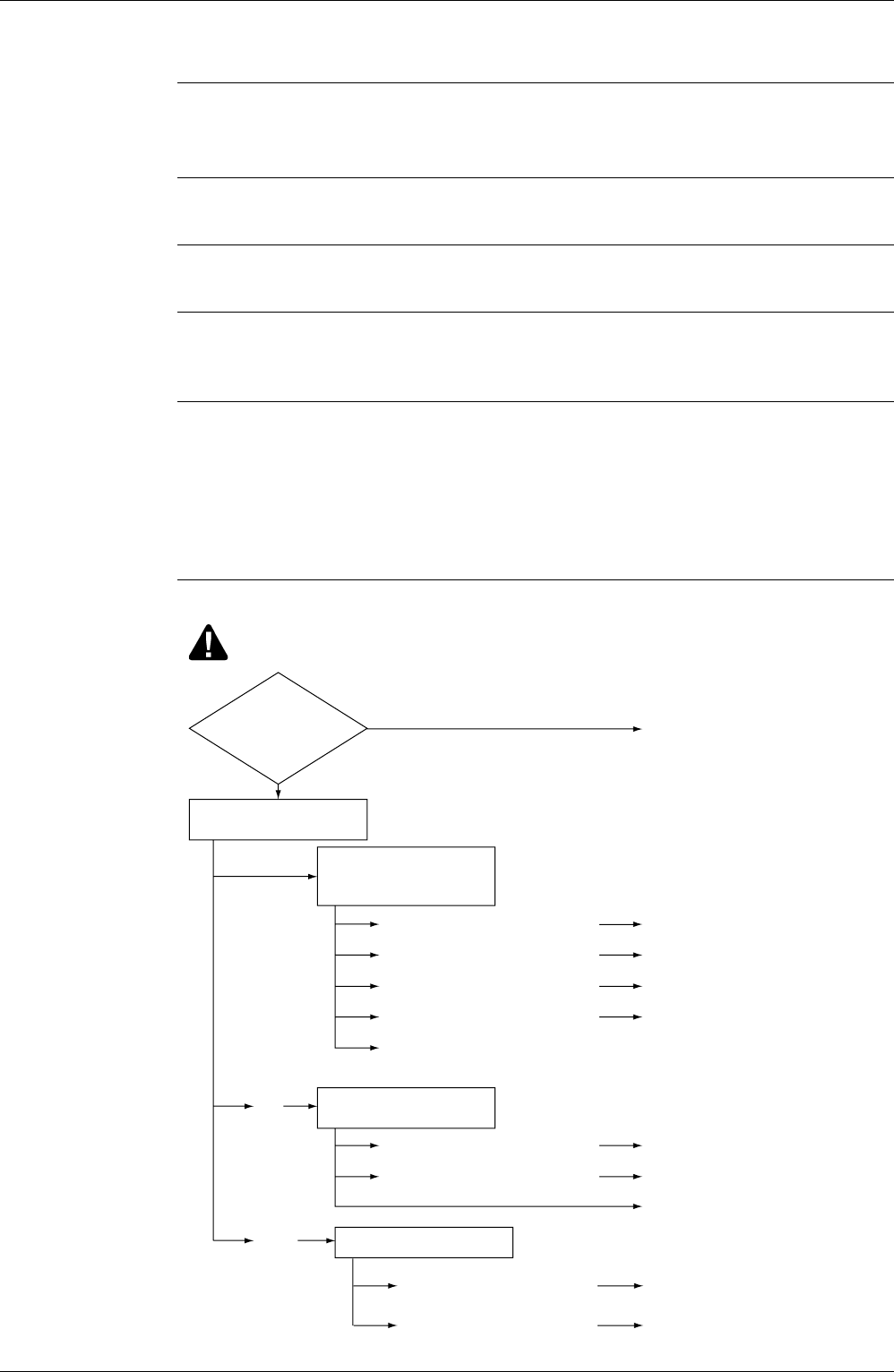

Find safety device which
is not energized.
Is
the safety
device's lead wire
correctlyconnected to the
outdoor unit PC
board?
YES
NO
Temperature of
compressor discharge
pipe is abnormally high.
Is the fan turning correctly?
Has draft passage been
provided?
Temperature of fan motor
coil is abnormally high.
Q1L
Q2L
Is power being properly
supplied?
(Voltage, lack of phase, etc.)
Is the compressor
malfunctioning?
Compressor current is
excessive.
F1C
*1
*2
*3
*4
Is the stop valve fully open?
Is the refrigerant piping
circuit clogged?
Is refrigerant charged to
the proper level?
Is the compressor
malfunctioning?
· · · ·
Connect correctly.
Open the stop vale.
Replace clogged part.
Charged to specified level.
Compressor replacement
Remove obstacles so the fan turns
correctly, or replace the fan.
Provide draft passage
Fan motor replacement
Provide suitable power supply.
Compressor replacement
(P1372)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
