Troubleshooting Based on Equipment Condition Si42-107
224 Troubleshooting
5"",,"P
88
8888
88
P
%":"+"
/>,*).
#,
+;
#D
:"
4:";

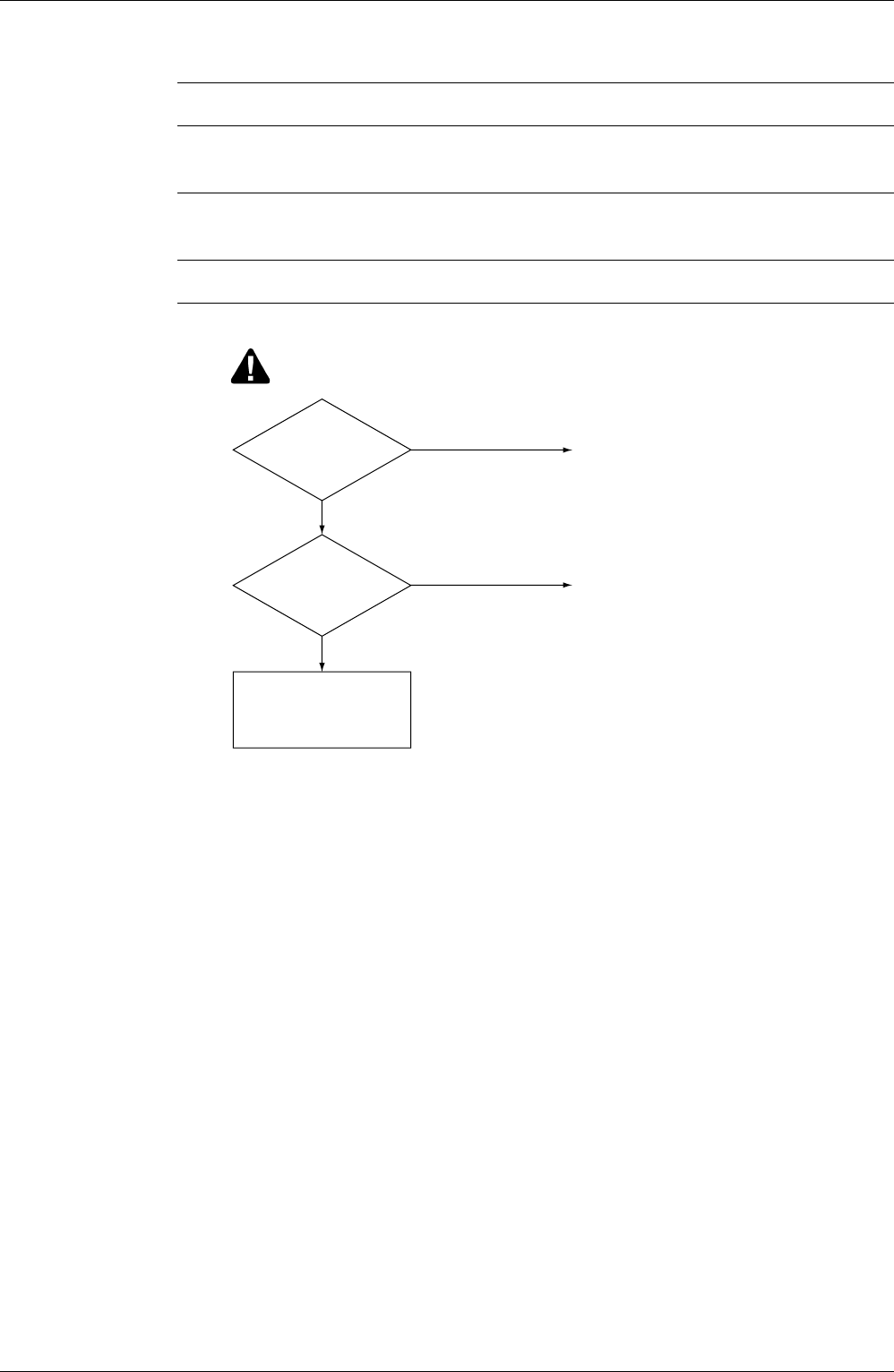

The unit is checking to confirm
that remote controller is normal.
Indication appears for short time.
Turn the switch to "Ordinary", and
reset power supply.
Check the unit based on
indoor unit LED and
outdoor unit LED.
(Trouble Shooting)
Trouble
generates just after
power supply ON
YES
YES
NO
NO
Is the
position of (SS 1)
on indoor unit PCB at
"Emergency"?
(P1365)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
