Si42-107 Remote Controller
Remote Controller 127
5""9/
TEST
NOT
AVAILABLE
TEST
hr
hr
A
210
4
5
6
7
3
9
8
11
12
13
14
15
16
17
18
1
3PN02535-8L-0

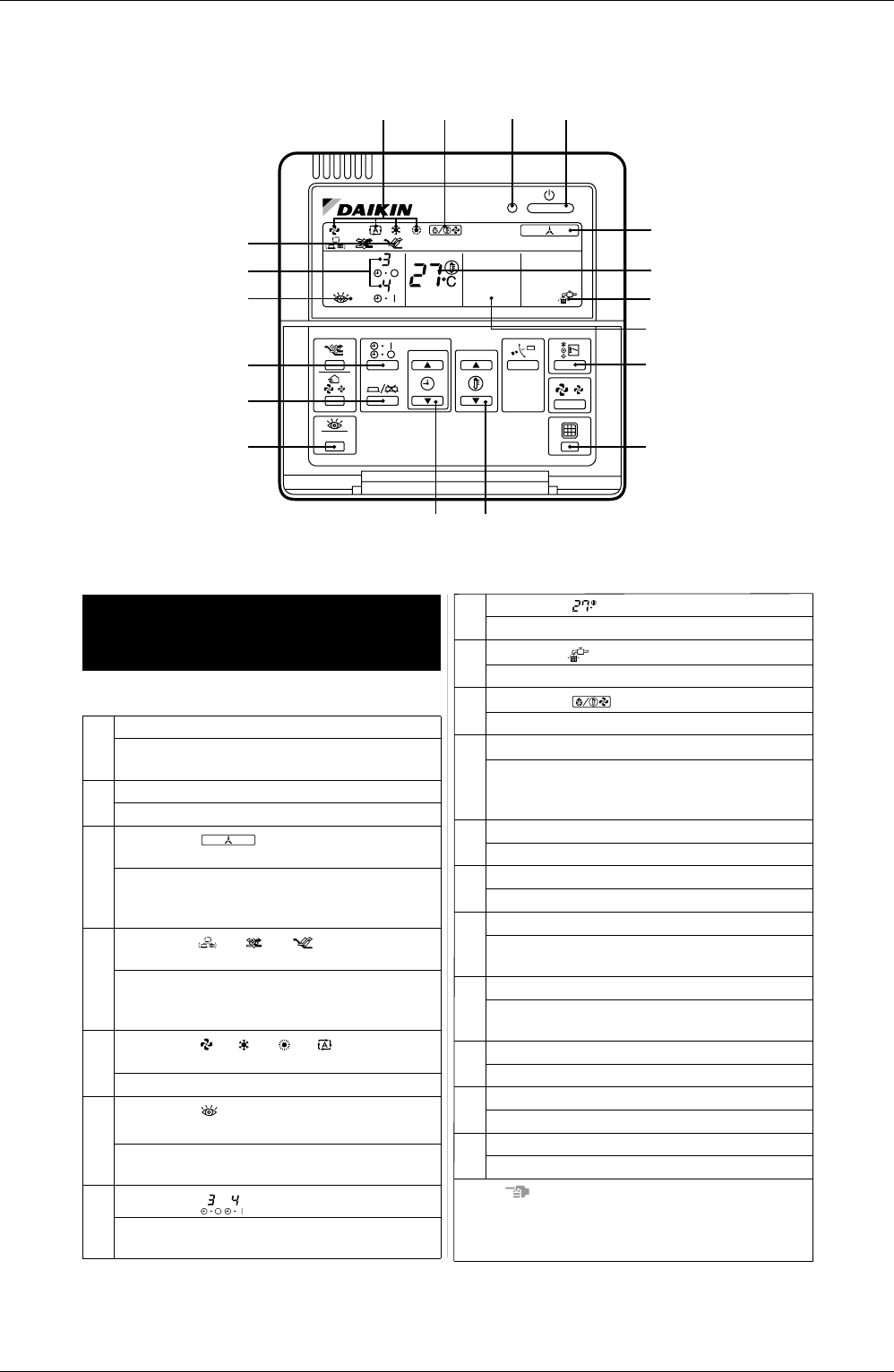

Fig.1
The illustrations in this operating manual corre-
spond to the remote control format BRC1C type.
NAME AND FUNCTION OF EACH
SWITCH
AND DISPLAY ON THE
REMOTE CONTROLLER
1
ON/OFF BUTTON
Press the button and the system will start. Press
the button again and the system will stop.
2
OPERATION LAMP (RED)
The lamp lights up during operation.
3
DISPLAY “ ” (UNDER CENTRAL-
IZED CONTROL)
When this display shows, the system is
UNDER CENTRALIZED CONTROL.
(This is not a standard specification.)
4
DISPLAY“ ”“ ”“ ”(VENTILA-
TION/AIR CLEANING)
This display shows that the total heat
exchange and the air cleaning unit are in
operation (These are optional accessories).
5
DISPLAY“ ”“ ”“ ”“ ”
(OPERATION MODE)
This display shows the current OPERATION MODE.
6
DISPLAY “
TEST
” (INSPECTION/TEST
OPERATION)
When the INSPECTION/TEST OPERATION BUTTON
is pressed, the display shows the system mode is in.
7
DISPLAY “ ” (PROGRAMMED TIME)
This display shows the PROGRAMMED TIME
of the system start or stop.
A
hr
hr
14
INSPECTION/TEST OPERATION BUTTON
This button is used only by qualified service
persons for maintenance purposes.
15
PROGRAMMING TIME BUTTON
Use this button for programming “START and/
or STOP” time.
16
TEMPERATURE SETTING BUTTON
Use this button for SETTING TEMPERATURE.
17
FILTER SIGN RESET BUTTON
Not applied on this model.
18
OPERATION MODE SELECTOR BUTTON
Press this button to select OPERATION MODE.
NOTE
For the sake of explanation, all indications are
shown on the display in Figure 1 contrary to
actual running situations.
3PN02535-8L-3
8
DISPLAY “ ” (SET TEMPERATURE)
This display shows the set temperature.
9
DISPLAY “ ” (TIME TO CLEAN AIR FILTER)
Not applied on this model.
10
DISPLAY “ ” (DEFROST)
11
DISPLAY “ ”
If indoor unit does not have a function, this
display is indicated when pressing buttons for
the function.
12
TIMERMODESTART/STOPBUTTON
13
TIMER ON/OFF BUTTON
C
NOT
AVAILABLE
