Up to 64 groups of indoor units (128 units) can be centrally controlled.
Optional controllers for centralised control can be combined freely, and
system can be designed in accordance with building scale and purpose.
System integration with various air-conditioning peripheral
equipment, such as a Heat Reclaim Ventilator, is easy.
Wiring can be run up to a total length of 2 km, and adapts easily to
large-scale system expansion.

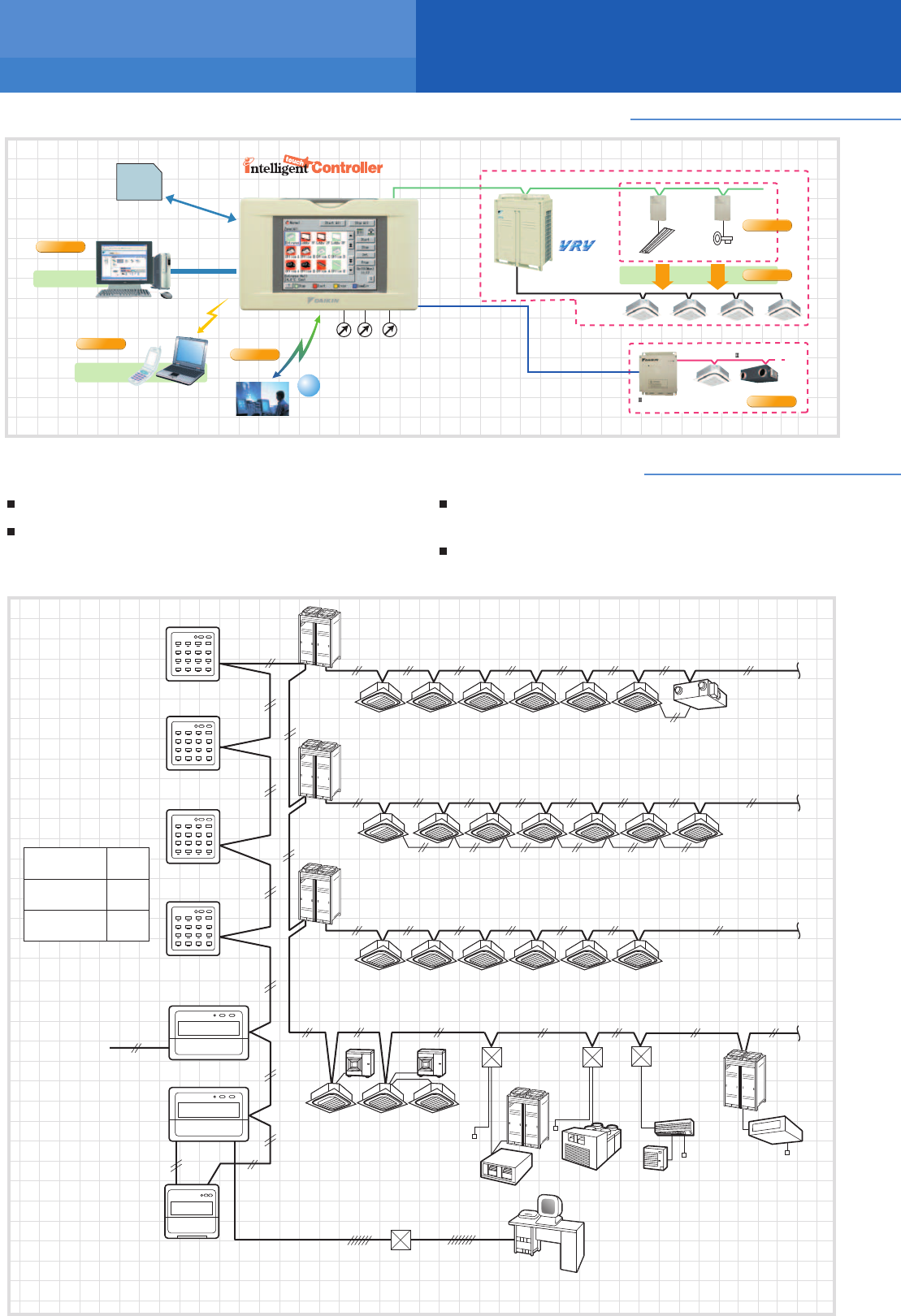

Centralised Control Systems for VRV Indoor Units
Central control
adaptor kit
(DTA107A55)
Central remote
controller
(DCS302CA61)
Up to 2 units
connectable
Unified on/off
controller
(DCS301BA61)
Connection of
up to 8 units
possible
Schedule timer (DST301BA61)
1 unit connection possible ;
8 weekly schedule control patterns possible
Forced
shut-down
input
Independent
and centralised
control of a
Heat Reclaim
Ventilator is
possible.
Unification adaptor for computerised
control (DCS302A52)
Interlink Building Management System
(host computer monitor panel) also possible
6 cores 7 cores max.
Address setting of central control can be
performed from the remote controller.
Group control of up to 16 units is possible
(group control via automatic address setting)
System without remote control is also available.
Interface adaptor for SkyAir
series (built-in indoor unit)
(DTA102A52)
Connectable number of
centralised control
equipment
Central remote
controller
2 units
Unified on / off
controller
8 units
Schedule timer 1 unit
Wiring adaptor
for other air-
conditioners
(DTA103A51)
For more details, please refer to the Engineering Data Book.
Outdoor-air
processing
unit can be
connected.
• Certain indoor units limit the functions of some control systems.
Input
(Lights)
Input (Key signal -
General purpose ADP)
Dio Unit
DEC102A51
(Option)
Di Unit
DEC101A51
(Option)
System
Set temperature
change command
OFF
command
Pi Port
• Connection to power consumption
metre when using power proportional
distribution function. (Option)
RS-232C
Air Conditioning Network
Service System modem
for connections
• CSV output of power
proportional distribution
results
(Option)
PCMCIA
Flash
Memory
Remote monitor-
ing and control
Mobile Phone PC
D -NET Plus Adaptor
DCS601A52 (Option)
Number of indoor units expanded from 64 to 128.
D -NET
Function 1
Function 2
Function 3
Function 4
Function 5
Function 6
Indoor Unit
Heat Reclaim Ventilator
ACC centre
• Air Conditioning Network Service System
(Optional Maintenance Service)
System
Components
Via internet
DCS601C51
Malfunction report
by E-mail
