Specifications

39

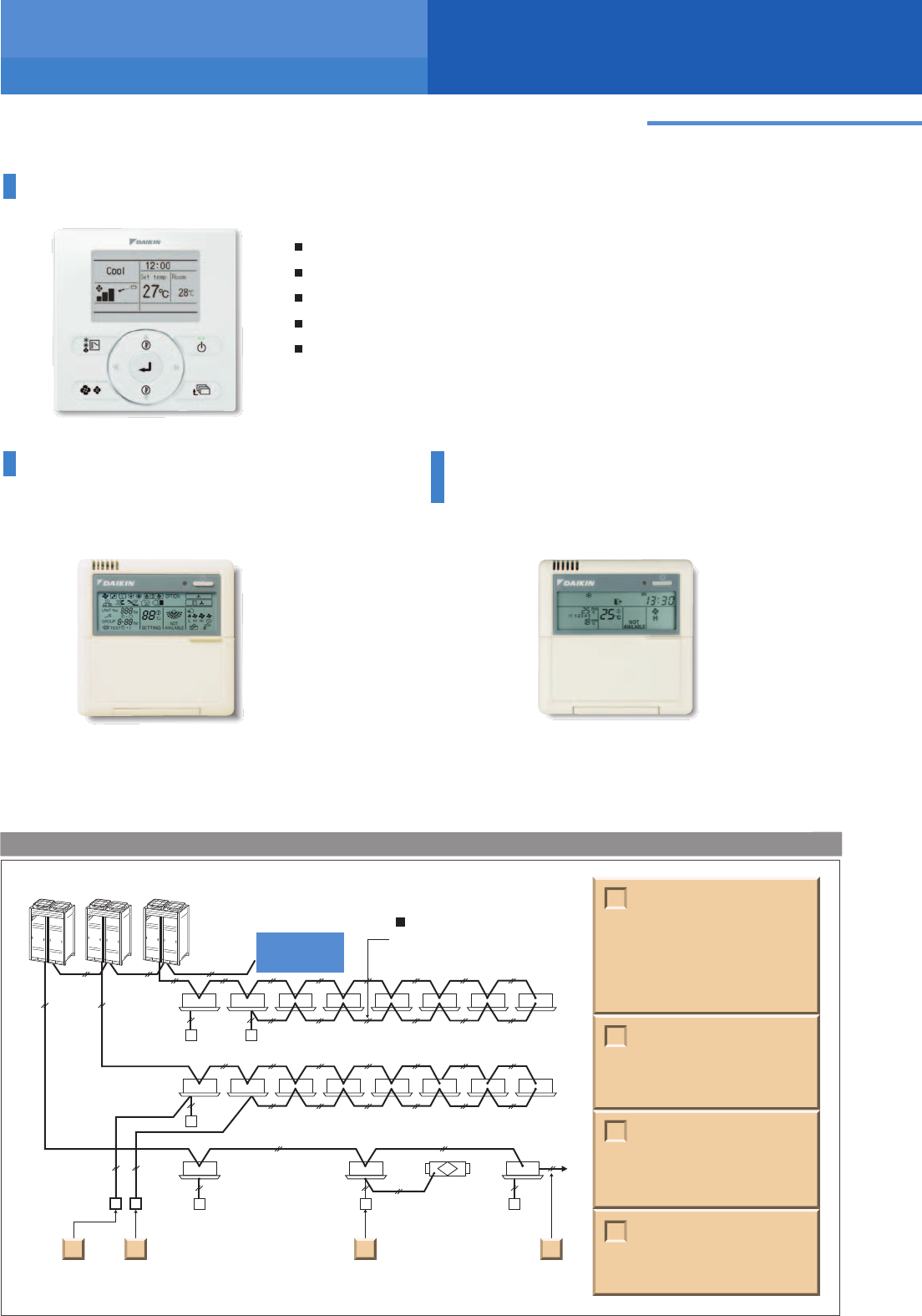

Control Systems
Individual Control Systems for VRV Indoor Units
Large buttons and arrow keys for easy operation.
Guide on display gives an explanation of each setting.
Backlight and dot matrix LCD display for easy viewing.
Weekly schedule timer can be set up easily.
10 display languages are available.
(English, German, French, Spanish, Italian, Portuguese, Greek, Dutch,
Russian and Turkish)
Wired remote controller (Option)
BRC1C62
BRC1E61
Displays current airflow, swing, temperature,
operating mode and timer settings.
Outdoor
unit
Indoor unit
Forced OFF
input
Remote controller
Remote controller
Remote controller
Remote controller
Remote controller
Remote controller
Remote
controller
Remote
controller
Heat Reclaim
Ventilator
The indoor unit can be connected by the two
remote controller, for example one in the room
and the other one in the control room, which
can control the operation of indoor unit freely.
(The last command has a priority.) Of course,
the group control by two remote controller is
also possible.
Control by two remote controller
The system can be expanded to add
several controllers, such as BMS, Forced
OFF input and etc.
Expansion of system control
One remote controller can
control the operation of max.16
indoor units at the same time.
Group control
Equipment
related to the
central control
1 2 3
The wiring of remote controller can be
extended to max. 500 m and it is possible
to install the remote controllers for the
different indoor units in one place.
Remote control
The operation of the Heat Reclaim Ventilator
can be controlled by the remote controller of
the indoor unit. Of course, the remote controller
can display the time to clean the filter.
Control for the combined operation
4
4
3
2
1
Wide variation of remote controllers for indoor unitsThe wired remote controller supports a wide range of control functions
Navigation remote controller (Wired remote controller) (Option)
Wired remote controller
with weekly schedule timer
(Option)
BRC1D61
Adds weekly schedule timer function.
Notes: 1. Standard remote controllers (BRC1C62) not required.
2. If the BRC1D61 is connected to the centralised remote controllers
(DCS303A51, DCS302CA61, DCS301BA61, DST301BA61), the
schedule function is not available.
