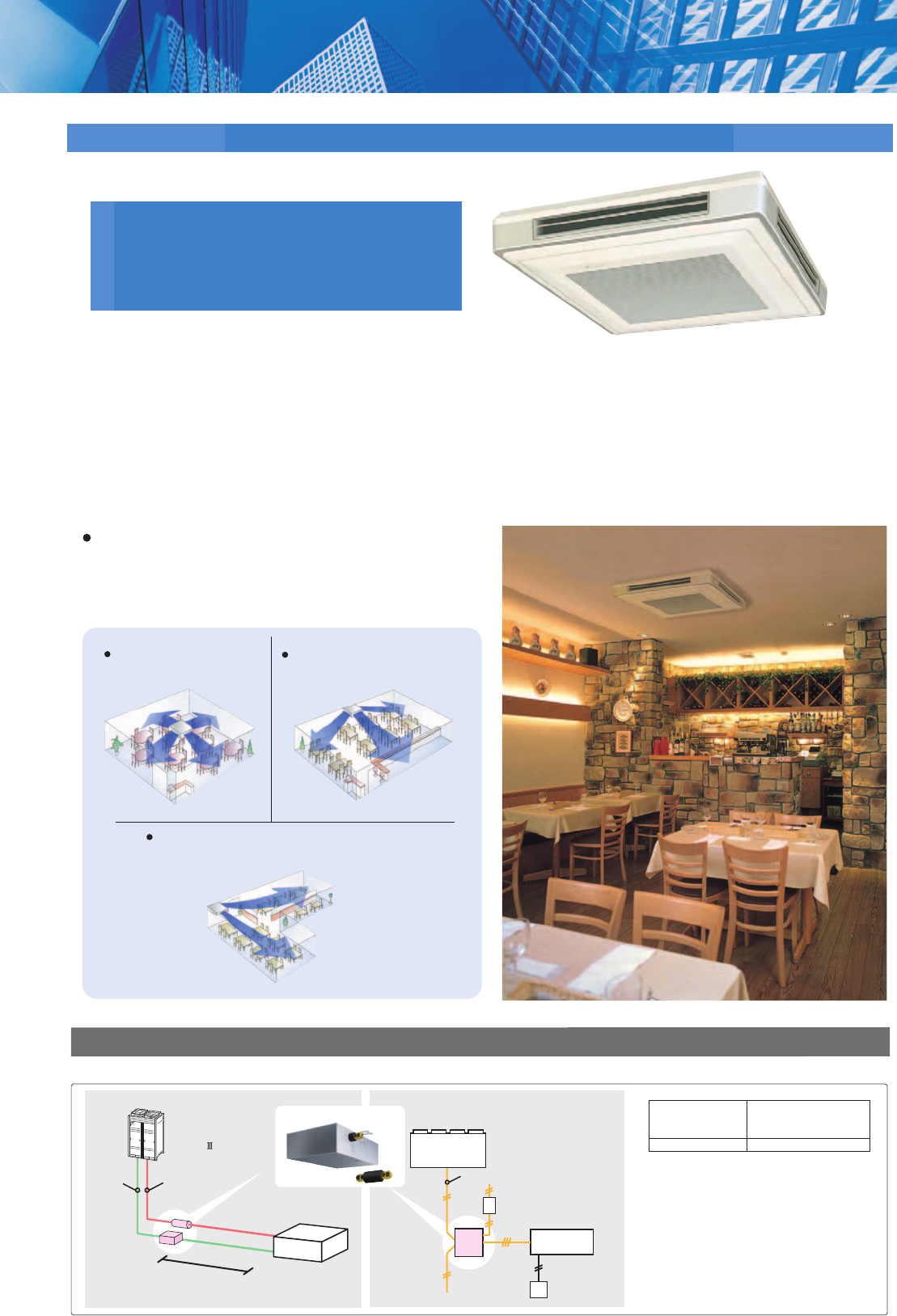

Specifications

Ceiling Suspended Cassette Type
18
Connection unit series indoor units
FXUQ71MA/FXUQ100MA
FXUQ125MA
This thin indoor unit achieves
optimum air distribution, and can be installed
without the need for ceiling cavity.
Depending on installation site requirements or room
conditions, 2-way, 3-way and 4-way discharge
patterns are available.
4-way airflow
from the centre of the store.
The 3-way airflow can distribute
comfortable air throughout the room.
Only one unit is needed to distribute comfortable air
throughout an L-shaped store.
Connection unit
Connection unit is the device for connecting above indoor unit to VRV III.
BEVQ-MA
Connection unit for indoor unit
Indoor unit
Piping length*
1
Indoor unit
Remote controller
Super wiring (DIII-NET)
Single-phase 220-240 V
power supply
Refrigerant piping layout External wiring layout
Notes:
Gas pipe
Liquid
pipe
Model
Maximum piping length
between the BEV unit
and the indoor unit.
FXUQ-MA 5 m
*1
• When connecting centralised-control device, it is
necessary to install an interface adaptor for an
indoor unit (DTA102A52).
• Connection unit BEVQ-MA is necessary for each
indoor unit.
• The refrigerant piping height difference between
the indoor units and the BEV unit must be within
4 m.
• The BEV unit must be installed within a
maximum height difference between indoor units
of 15 m.
• Branching of the refrigerant piping is not
possible downstream of the BEV unit.
VRV series
outdoor unit
BEVQ71MA/BEVQ100MA/BEVQ125MA
* Remote controllers are an optional accessory.
Refer to page 39 for remote controller details.
