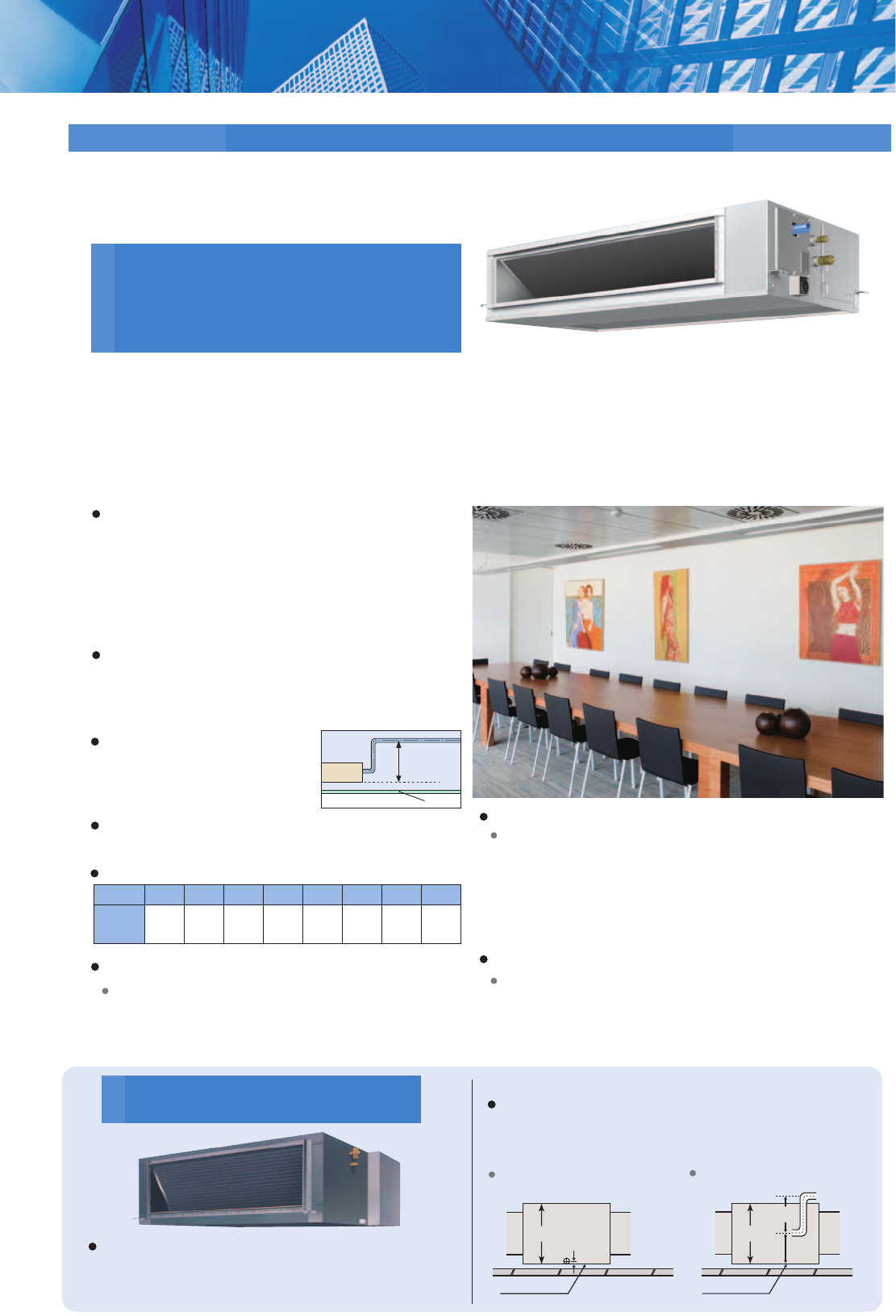

Specifications
Ceiling Mounted Duct Type
14
*
Remote controllers are an optional accessory.
Refer to page 39 for remote controller details.
Middle and high static pressure
allows for flexible duct design
FXMQ20P/FXMQ25P/FXMQ32P
FXMQ40P/FXMQ50P/FXMQ63P
FXMQ80P/FXMQ100P/FXMQ125P
FXMQ140P
Built-in Drain Pump (Option)
Housing the drain pump inside the unit reduces the
space required for installation.
All models are only 300 mm in height, an
improvement over the 390 mm height of
conventional models. The weight of the
FXMQ40P has been reduced from 44 kg to 28 kg.
A DC fan motor increases the external static
pressure capacity range to include middle to high
static pressures, increasing design flexibility.
Indoor unit
470
mm
Indoor unit
470
mm
0–250
mm
222 mm
Without drain pump
With drain pump
Simplified Static Pressure Control
External static pressure can be easily adjusted using
a change-over switch inside the electrical box to meet
the resistance in the duct system.
Drain pump is equipped as
standard accessory with
700 mm lift.
Control of the airflow rate has been improved
from 2-step to 3-step control.
(dB(A))
46/45/43
140
42/40/38
63
43/41/39
80/100
41/39/37
50
39/37/35
40
34/32/30
32
33/31/29
20/25
Sound
level
(HH/H/L)
FXMQ-P
700 mm
Ceiling
30 Pa–100 Pa for FXMQ20P-32P
30 Pa–160 Pa for FXMQ40P
50 Pa–200 Pa for FXMQ50P-125P
50 Pa–140 Pa for FXMQ140P
Low operation sound level
Improved ease of installation
Improved ease of maintenance
The airflow rate can be controlled using a remote
controller during test operation. With the conventional
model, the airflow rate was controlled from the PC
board. It is automatically adjusted to the range
between approximately ±10% of the rated HH tap
airflow for FXMQ20P–125P.
The drain pan can be detached for easy cleaning. An
antibacterial treatment that uses silver ions has been
applied to the drain pan, preventing the growth of slime,
mould and bacteria that cause blockages and odours.
Energy-efficient
The adopted DC fan motor is much more efficient than
the conventional AC motor, yielding an approximate
20% decrease in energy consumption (FXMQ125P).
25 mm
44/42/40
125
FXMQ200MA/FXMQ250MA
