—suitable for homes, offices, shops, and middle-sized buildings

Cooling Only 50 Hz

Single outdoor unit series

VRV indoor units combine with

residential indoor units, all in one system

PCV1131

Summary of content (48 pages)

PAGE 1

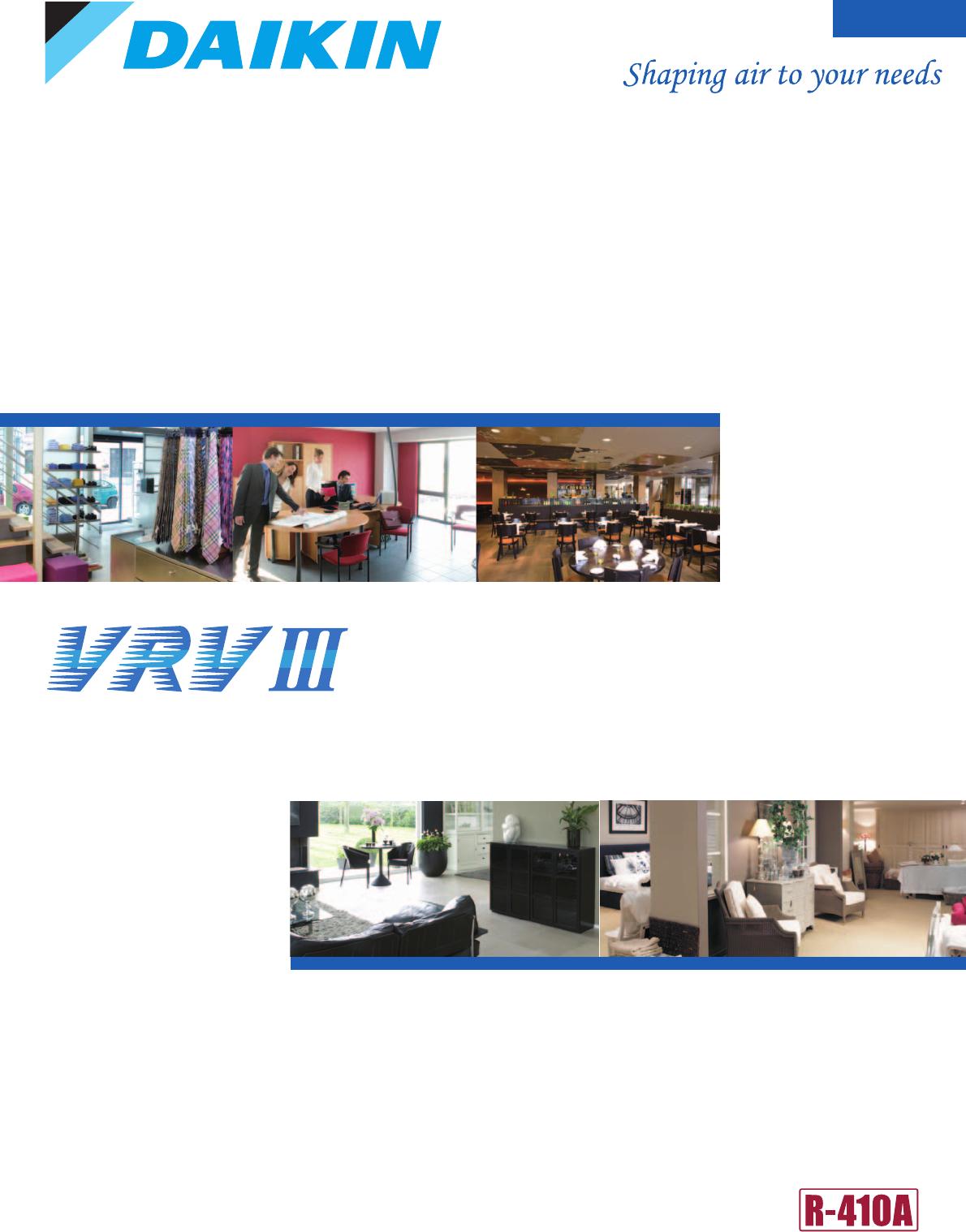

PCV1131 VRV indoor units combine with residential indoor units, all in one system Single outdoor unit series —suitable for homes, offices, shops, and middle-sized buildings Cooling Only 50 Hz
PAGE 2
Meet the new single outdoor unit series, connectable to both VRV and residential indoor units First launched in Japan in 1982, the Daikin VRV system has been embraced by world markets for nearly 30 years. Now, Daikin proudly introduces the new VRVIII single outdoor unit series which enables a mixed combination of VRV indoor units and residential indoor units all in one system, opening the door to stylish and quiet indoor units.
PAGE 3
Contents Main Features................................page 3 Outdoor Unit Lineup......................page 4 Indoor Unit Lineup.........................page 9 • V R V.....................................page 9 • Residential............ ........ ....page 19 Specifications...............................page 24 Option List....................................page 35 Indoor units.............................page 35 • V R V.....................................page 35 • Residential............ .......... ....
PAGE 4
Main Features Wide range of choices Indoor units Indoor units can be selected from 2 lineups, both VRV and residential indoor units, to match rooms and preferences. Connection unit VRV indoor units VRV indoor units 15 types 73 models 100 125 140 200 250 Capacity Range 0.8 HP 1 HP 1.25 HP 1.6 HP 2 HP 2.5 HP 3.
PAGE 5
BP unit BP unit Residential indoor units Residential indoor units with connection to BP units Type Model Name Ceiling Mounted Cassette FCQ-BVE Ceiling Mounted Cassette (Compact Multi Flow) FFQ-BV1B Ceiling Mounted Built-in 7 types 21 models 25 35 50 60 71 Rated Capacity 2.5 kW 3.5 kW 5.0 kW 6.0 kW 7.
PAGE 6
Main Features Energy efficiency and quiet operation Outdoor units use Daikin’s unique scroll compressor to realise energy saving performance and quiet operation. High COPs It has become essential for air conditioning manufacturers to develop systems that provide high energy savings. We at Daikin have made great efforts in this field, and the VRVIII delivers highly efficient performance, contributing to high energy savings. 4.
PAGE 7
A collection of cutting-edge technologies realises efficient and quiet operation 1 High efficiency compressor 5 3 Reluctance DC scroll compressor Daikin’s unique scroll compressor reduces heat loss, and is driven by a high efficiency motor to achieve significant energy savings. 4 2 High torque and efficiency is attained with the adoption of neodymium magnets. 1 Powerful magnets Use of neodymium magnets in the motor enables efficient generation of high torque.
PAGE 8
Main Features Design flexibility Long piping length Actual piping length Long piping length offers flexibility during installation. Max. 100 Total piping length Max. m 250 m Colours in the diagram below are merely for identifying pipes referenced with symbols such as a . When only VRV indoor units are connected a b e First indoor branch c d g f h i Max. 50 m k Max.
PAGE 9
As many as 29 indoor units can be connected VRVIII single outdoor unit series enables a mixed combination of VRV and residential indoor units by connecting BP units. As many as 29 indoor units can be connected, making this series a highly versatile system. BP unit BP unit Max. 29 Indoor units Residential indoor units VRV indoor units Note: Total capacity index of connectable indoor units must be 50%–130% of the capacity index of the outdoor unit.
PAGE 10
Indoor Unit Lineup VRV Indoor Units Ceiling Mounted Cassette (Round Flow) Type FXFQ25P/ FXFQ32P/ FXFQ40P FXFQ50P/ FXFQ63P/ FXFQ80P FXFQ100P/ FXFQ125P * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. 360° airflow improves temperature distribution and offers a comfortable living environment. The industry’s first* Round Flow Ceiling Mounted Cassette type offers 360° airflow with improved temperature distribution.
PAGE 11
Ceiling Mounted Cassette (Compact Multi Flow) Type FXZQ20M / FXZQ25M / FXZQ32M FXZQ40M / FXZQ50M * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Quiet, compact, and designed for user comfort Dimensions correspond with 600 mm X 600 mm architectural module ceiling design specifications.
PAGE 12
Indoor Unit Lineup VRV Indoor Units Ceiling Mounted Cassette (Double Flow) Type FXCQ20M / FXCQ25M / FXCQ32M FXCQ40M / FXCQ50M / FXCQ63M FXCQ80M / FXCQ125M * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Thin, lightweight, and easy to install in narrow ceiling spaces The thin unit (only 305 mm high) can be installed in a ceiling space as narrow as 350 mm. All models feature a compact design with a depth of only 600 mm.
PAGE 13
Ceiling Mounted Cassette Corner Type FXKQ25MA / FXKQ32MA FXKQ40MA / FXKQ63MA * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Slim design for flexible installation Slim body needs only 220 mm space above the ceiling. If you use a panel spacer (option), the unit can be installed in the minimum space of 195 mm.
PAGE 14
Indoor Unit Lineup VRV Indoor Units Slim Ceiling Mounted Duct Type Slim design, quietness and static pressure switching * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Suited to use in drop-ceilings! FXDQ40NB/FXDQ50NB/FXDQ63NB FXDQ20PB/ FXDQ25PB/ FXDQ32PB Only 700 mm in width and 23 kg in weight, this model is suitable to install in limited spaces like drop-ceilings in hotels.
PAGE 15
Ceiling Mounted Duct Type FXMQ20P/ FXMQ25P/FXMQ32P FXMQ40P/ FXMQ50P/FXMQ63P FXMQ80P/FXMQ100P/ FXMQ125P FXMQ140P * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Middle and high static pressure allows for flexible duct design A DC fan motor increases the external static pressure capacity range to include middle to high static pressures, increasing design flexibility.
PAGE 16
Indoor Unit Lineup VRV Indoor Units Ceiling Suspended Type FXHQ32MA / FXHQ63MA FXHQ100MA * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Slim body with quiet and wide airflow Adoption of QUIET STREAM FAN Uses the quiet stream fan and many more advanced technologies.
PAGE 17
Wall Mounted Type FXAQ20MA / FXAQ25MA FXAQ32MA/FXAQ40MA FXAQ50MA / FXAQ63MA * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Sophisticated design and compact casing harmonised with your interior décor Compact and stylish design that does not detract from the décor of the room.
PAGE 18
Indoor Unit Lineup VRV Indoor Units Floor Standing Type FXLQ20MA / FXLQ25MA FXLQ32MA/FXLQ40MA FXLQ50MA / FXLQ63MA * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. Suitable for perimeter zone air conditioning Floor Standing types can be hung on the wall for easier cleaning. Running the piping from the back allows the unit to be hung on walls. Cleaning under the unit, where dust tends to accumulate, is considerably easier.
PAGE 19
Connection unit series indoor units Ceiling Suspended Cassette Type FXUQ71MA/FXUQ100MA FXUQ125MA * Remote controllers are an optional accessory. Refer to page 39 for remote controller details. This thin indoor unit achieves optimum air distribution, and can be installed without the need for ceiling cavity. Depending on installation site requirements or room conditions, 2-way, 3-way and 4-way discharge patterns are available. 4-way airflow from the centre of the store.
PAGE 20
Indoor Unit Lineup connection Residential Indoor Units with to BP units Ceiling Mounted Cassette Type FCQ35B/FCQ50B/FCQ60B/FCQ71B Option Note: Remote controller cables not included. Cables should be obtained locally. Option Signal receiver unit Note: Wireless remote controllers and signal receiver units are sold as a set.
PAGE 21
Ceiling Mounted Cassette (Compact Multi Flow) Type FFQ25B/FFQ35B/FFQ50B/FFQ60B Option Note: Remote controller cables not included. Cables should be obtained locally. Signal receiver unit Note: Wireless remote controllers and signal receiver units are sold as a set. Option Quiet, compact, and designed for user comfort Designed to fit 600 mm wide ceiling grids Low draft performance is designed for your comfort.
PAGE 22
Indoor Unit Lineup connection Residential Indoor Units with to BP units Ceiling Mounted Built-in Type FBQ60B/FBQ71B Option Note: Remote controller cables not included. Cables should be obtained locally. Flexible air discharge unit to fit various forms of space The indoor unit can be installed in rooms with as little as 350 mm between the drop ceiling and ceiling slab. It also works with both flexible and ordinary ducts.
PAGE 23
Slim Ceiling Mounted Duct Type 700 mm width type FDKS25EA/FDKS35EA 900/1,100 mm width type FDKS25CA/FDKS35CA/FDKS50C/FDKS60C Standard accessory Note: Remote controllers other than the standard accessory wireless remote controller cannot be used. Slim and smooth design suits your shallow ceiling Models in the FDKS-EA series are only 700 mm in width and 21 kg in weight, so are easily installed in limited spaces.
PAGE 24
Indoor Unit Lineup connection Residential Indoor Units with to BP units Wall Mounted Type FTKS25D/FTKS35D Standard accessory* FTKS50F/FTKS60F/FTKS71F Standard accessory* * Remote controllers other than the standard accessory wireless remote controller cannot be used. Stylish flat panel harmonises with your interior décor Wall Mounted indoor units achieve quiet sound levels of 22 dB (A).
PAGE 25
Specifications VRV Indoor Units Ceiling Mounted Cassette (Round Flow) Type MODEL FXFQ25PVE FXFQ32PVE FXFQ40PVE FXFQ50PVE FXFQ63PVE FXFQ80PVE FXFQ100PVE FXFQ125PVE Power supply Cooling capacity 1-phase, 220 - 240 V/220 V, 50/60 Hz kcal/h(*1) 2,500 3,200 4,000 5,000 6,300 8,000 10,000 12,500 Btu/h(*1) 9,900 12,600 16,000 19,800 24,900 31,700 39,600 49,500 (*1) 2.9 3.7 4.7 5.8 7.3 9.3 11.6 14.5 (*2) 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14.0 0.033 0.033 0.047 0.052 0.066 0.
PAGE 26
Specifications VRV Indoor Units Ceiling Mounted Cassette (Double Flow) Type MODEL FXCQ20MVE FXCQ25MVE FXCQ32MVE FXCQ40MVE FXCQ50MVE FXCQ63MVE FXCQ80MVE FXCQ125MVE Power supply 1-phase, 220 - 240 V/220 V, 50/60 Hz Cooling capacity kcal/h(*1) 2,000 2,500 3,200 4,000 5,000 6,300 8,000 12,500 Btu/h (*1) 7,800 9,900 12,600 16,000 19,800 24,900 31,700 49,500 (*1) 2.3 2.9 3.7 4.7 5.8 7.3 9.3 14.5 (*2) 2.2 2.8 3.6 4.5 5.6 7.1 9.0 14.0 kW 0.077 0.092 0.092 0.130 0.
PAGE 27
Slim Ceiling Mounted Duct Type (700 mm width type) MODEL with drain pump without drain pump FXDQ20PBVE FXDQ20PBVET Power supply FXDQ25PBVE FXDQ32PBVE FXDQ25PBVET FXDQ32PBVET 1-phase, 220 - 240 V/220 V, 50/60 Hz Cooling capacity kcal/h(*1) 2,000 2,500 3,200 Btu/h(*1) 7,800 9,900 12,600 (*1) 2.3 2.9 3.7 (*2) 2.2 2.8 3.6 kW 0.086 0.086 0.089 kW 0.067 0.067 0.070 m3/min 8.0/7.2/6.4 8.0/7.2/6.4 8.0/7.2/6.
PAGE 28
Specifications VRV Indoor Units Ceiling Mounted Duct Type MODEL FXMQ20PVE FXMQ25PVE FXMQ32PVE FXMQ40PVE FXMQ50PVE Power supply Cooling capacity 1-phase, 220 - 240 V/220 V, 50/60 Hz kcal/h (*1) 2,000 2,500 3,200 4,000 5,000 Btu/h(*1) 7,800 9,900 12,600 16,000 19,800 (*1) 2.3 2.9 3.7 4.7 5.8 (*2) 2.2 2.8 3.6 4.5 5.6 kW 0.081 0.081 0.085 0.194 0.215 m3/min 9/7.5/6.5 9/7.5/6.5 9.5/8/7 16/13/11 18/16.
PAGE 29
Ceiling Mounted Duct Type MODEL FXMQ200MAVE Power supply FXMQ250MAVE 1-phase, 220 -240 V/220 V, 50/60 Hz Cooling capacity kcal/h (*1) 19,800 24,800 Btu/h(*1) 78,500 98,300 (*1) 23.0 28.8 (*2) 22.4 28.0 kW Power consumption kW 1.294 1.
PAGE 30
Specifications VRV Indoor Units Wall Mounted Type MODEL FXAQ20MAVE FXAQ25MAVE FXAQ32MAVE FXAQ40MAVE FXAQ50MAVE FXAQ63MAVE 1-phase, 220 - 240 V/220 V, 50/60 Hz Power supply Cooling capacity kcal/h (*1) 2,000 2,500 3,200 4,000 5,000 6,300 Btu/h (*1) 7,800 9,900 12,600 16,000 19,800 24,900 2.3 2.9 3.7 4.7 5.8 7.3 kW Power consumption (*1) 2.2 2.8 3.6 4.5 5.6 7.1 kW 0.016 0.022 0.027 0.020 0.027 0.050 m3/min 7.5/4.5 8/5 9/5.
PAGE 31
Connection unit series indoor units * A type of BEV unit is necessary for each Connection unit series indoor unit. Refer to the Engineering Data for details. * Group control between Connection Unit series equipment within one system is possible. However, group control with the other VRV indoor units is not possible.
PAGE 32
Specifications connection Residential Indoor Units with to BP units Residential indoor units with connection to BP units Residential indoor units can be connected to the VRVIII single outdoor unit series by BP units. Ceiling Mounted Cassette Type MODEL FCQ35BVE FCQ50BVE Airflow rates (H) Sound levels (H/L)* m3/min (cfm) 14.0 (494) dB (A) 15.0 (530) FCQ71BVE 19.
PAGE 33
Ceiling Mounted Built-in Type MODEL FBQ60BV1 1-phase, 220 - 240 V, 50 Hz Power supply Airflow rates (H) Sound levels (H/L)* FBQ71BV1 m3/min (cfm) 17.0 (600) 19.0 (670) dB (A) 41/35 2 steps Fan speed Temperature control Dimensions (HXWXD) Machine weight Microcomputer control mm 300X1,000X800 41 kg Liquid (Flare) Piping connections Gas (Flare) Drain mm ø6.4 ø9.5 ø12.7 ø15.9 I.D ø25XO.
PAGE 34
Specifications connection to BP Units for residential indoor units BP units for connection to residential indoor units • A BP unit is an innovative development which allows VRVIII single outdoor unit series to be connected to residential indoor units. • A BP unit has the ability to precisely vary refrigerant volume to meet the cooling requirements of individual room spaces. • A BP unit is easy to disassemble, making repairing and recycling simple.
PAGE 35
Specifications Specifications—Indoor Units Outdoor Units single outdoor unit series MODEL RSXQ8PY1 RSXQ10PY1 Power supply RSXQ12PY1 RSXQ14PY1 RSXQ16PY1 RSXQ18PY1 3-phase 4-wire system, 380–415 V, 50 Hz Cooling capacity (*1)(*2) kcal/h(*1) 19,400 24,300 29,000 34,600 39,000 42,400 Btu/h(*1) 76,800 96,200 115,000 137,000 155,000 168,000 (*1) 22.5 28.2 33.7 40.2 45.3 49.3 (*2) 22.4 28.0 33.5 40.0 45.0 49.0 kW Power consumption (*2) kW 5.24 7.90 8.93 12.4 14.2 16.
PAGE 36
Option List VRV Indoor Units Ceiling Mounted Cassette (Round Flow) Type No.
PAGE 37
Ceiling Mounted Duct Type FXMQ20P FXMQ25P FXMQ32P FXMQ40P 65% KAF372AA36 90% Type No.
PAGE 38
Option List connection Residential Indoor Units with to BP units Ceiling Mounted Cassette Type No.
PAGE 39
Wall Mounted Type No. 1 Type FTKS25DVM Item Titanium apatite photocatalytic air-purifying filter FTKS35DVM FTKS50FVM FTKS60FVM KAF970A46 FTKS71FVM KAF952B42 Note: Filter is a standard accessory. It should be replaced approximately 3 years. connection to BP Units for residential indoor units No. 1 Type Item BPMKS967B2B BPMKS967B3B REFNET joint KHRP26A22T Note: A single BP unit does not require a REFNET joint.
PAGE 40
Control Systems Individual Control Systems for VRV Indoor Units Navigation remote controller (Wired remote controller) (Option) Large buttons and arrow keys for easy operation. Guide on display gives an explanation of each setting. Backlight and dot matrix LCD display for easy viewing. Weekly schedule timer can be set up easily. 10 display languages are available.
PAGE 41
Wireless remote controller (Option) The same operation modes and settings as with wired remote controllers are possible. A compact signal receiver unit (separate type) to be mounted into a wall or ceiling is included. • A signal receiver unit (installed type) for a Ceiling Mounted Cassette (Round Flow, Compact Multi Flow, Double Flow) type, Ceiling Suspended type and Wall Mounted type is mounted into the indoor unit. Signal receiver unit can be installed on the panel ex.
PAGE 42
Control Systems Advanced Control Systems for VRV Indoor Units PCMCIA Flash Memory DCS601C51 Dio Unit DEC102A51 (Option) • CSV output of power proportional distribution results (Option) Function 5 Function 1 Input (Lights) System Set temperature change command Remote monitoring and control Function 3 Malfunction report by E-mail PC Input (Key signal General purpose ADP) OFF command Function 6 Pi Port Air Conditioning Network Service System modem for connections Function 2 Mobile Phone Di Unit
PAGE 43
Communication functions in the user-friendly icon-based multilingual controller simplify centralised control of the VRV system.
PAGE 44
Option List Control Systems Operation Control System Optional Accessories For VRV indoor unit use No.
PAGE 45
System Configuration No. Item Model No. 1 Residential central remote controller 2 Central remote controller Note 3 DCS303A51 Function •Up to 16 groups of indoor units (128 units) can be easily controlled using the large LCD panel. ON/OFF, temperature settings and scheduling can be controlled individually for indoor units.
PAGE 46
Memo
PAGE 47
PAGE 48
Warning Daiki n products are manufactured for export to numerous countries throughout the world. P rior to purchas e, please confirm with your local authorised importer, distributor and/or retailer whether this product conforms to the applicable standar ds, and is suitable for use, in the region where the product will be used. T his statement does not purport to exclude, restrict or modify the application of any loca l legislation. Ask a qualified installer or contractor to install this product.
