4-3. Mechanical Mode

(Operate without a cassette tape)

a. Remove the FRONT LOADING Mechanism from

the DECK Mechanism.

b. Cap the IR LED and pull the FL RACK. This has the

same effect with cassette loading to the deck.

c. If the S/T POLE BASE is loaded, Play mode starts

automatically. If you want other function, press the

corresponding button.

d. Turn off the power when the Mechanism is in the

desired position.

4-4. Adjustment of the position of the

TENSION POLE (Fig. 4.6)

a. Place the Mechanical mode in the play mode. Refer

to the above section “3. Mechanical mode”.

b. Confirm that the TENSION LEVER is aligned with

the datum hole of the MAINBASE.

c. If the requirement “b” is not satisfied, turn the BAND

BRAKE ADJUST CAP clockwise or

counterclockwise until the two datum holes are

alined.

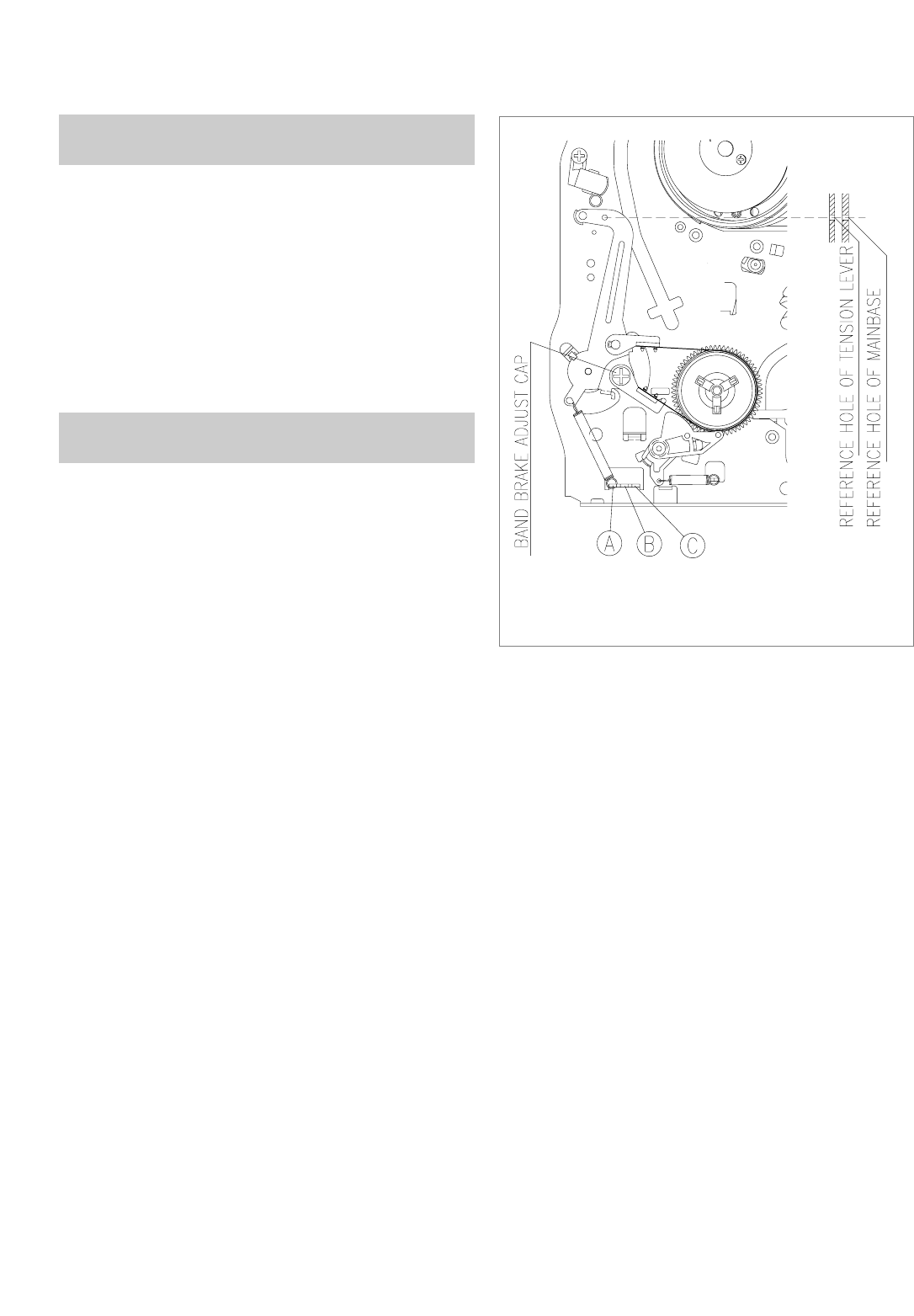

FIg. 4.6 Adjustment of the TENSION POLE
