4-1. Mechanical Adjustment (Fig. 4.1~4.4)

In case of disassembly and reassembly for fixing the

mechanical problem, check the following check point.

a. Make sure that the DATUM HOLE of the CAM

GEAR is aligned with the DATUM HOLE in the

MAINBASE in the EJECT mode as shown in Fig.

4.1.

b. Make sure that the ending part “A” of the RELAY

LEVER assembled on the CONNECT PLATE is

aligned with the reference hole “B” of the

MAINBASE as shown in Fig. 4.2.

c. The end point “A” of PINCH SPRING PIN of the

LEVER TOTAL Ass’y should be located within the

slot “B” of the CAM GEAR. (Fig. 4.3)

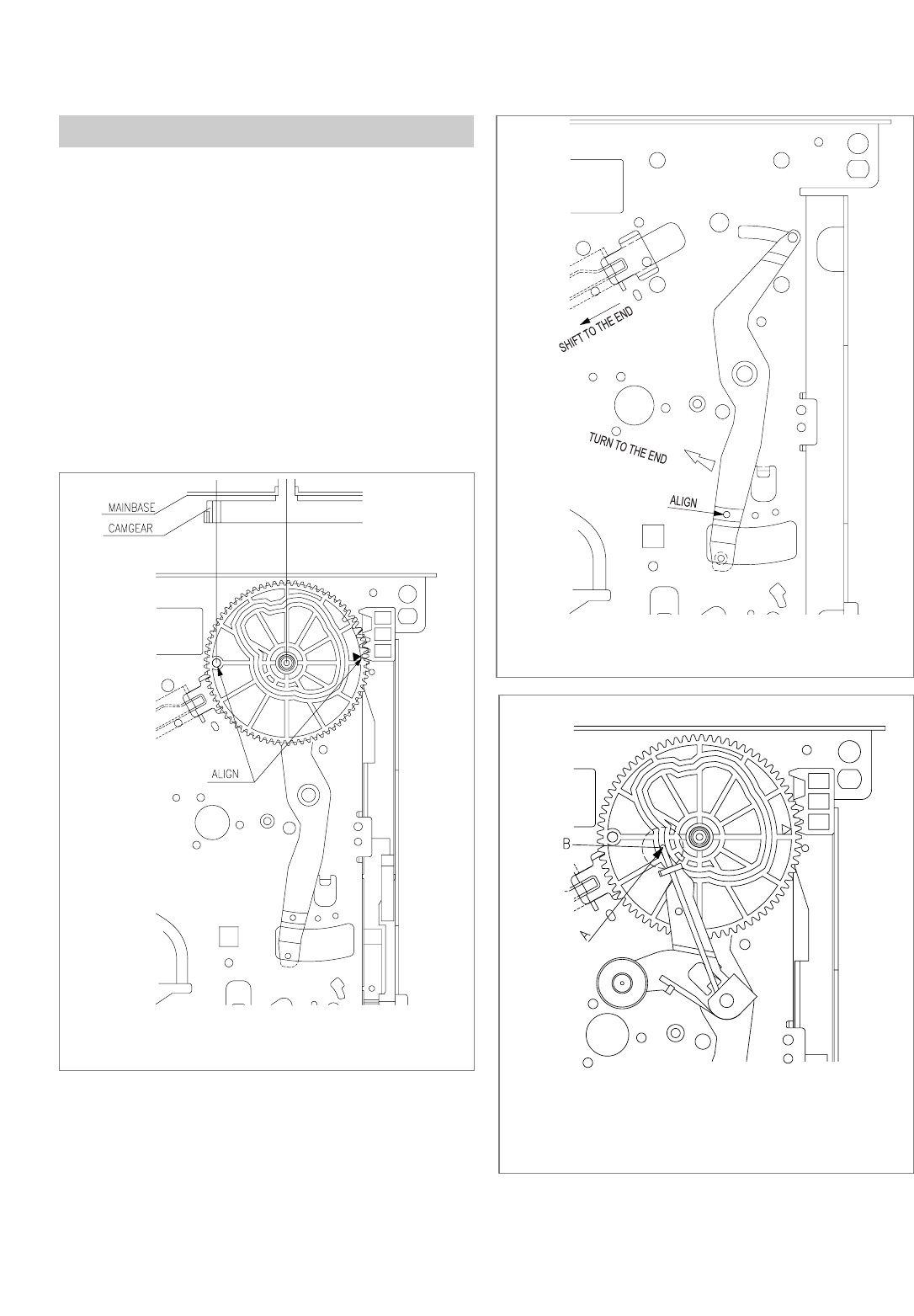

FIg. 4.1 Assembly reference between the FL RACK and

the CAM GEAR

FIg. 4.2 Assembly reference between the RELAY

LEVER and the CAM GEAR

FIg. 4.3 Assembly reference of the PINCH LEVER

TOTAL ASS’Ywith the CAM GEAR
